VPort 66-2MP Product Description

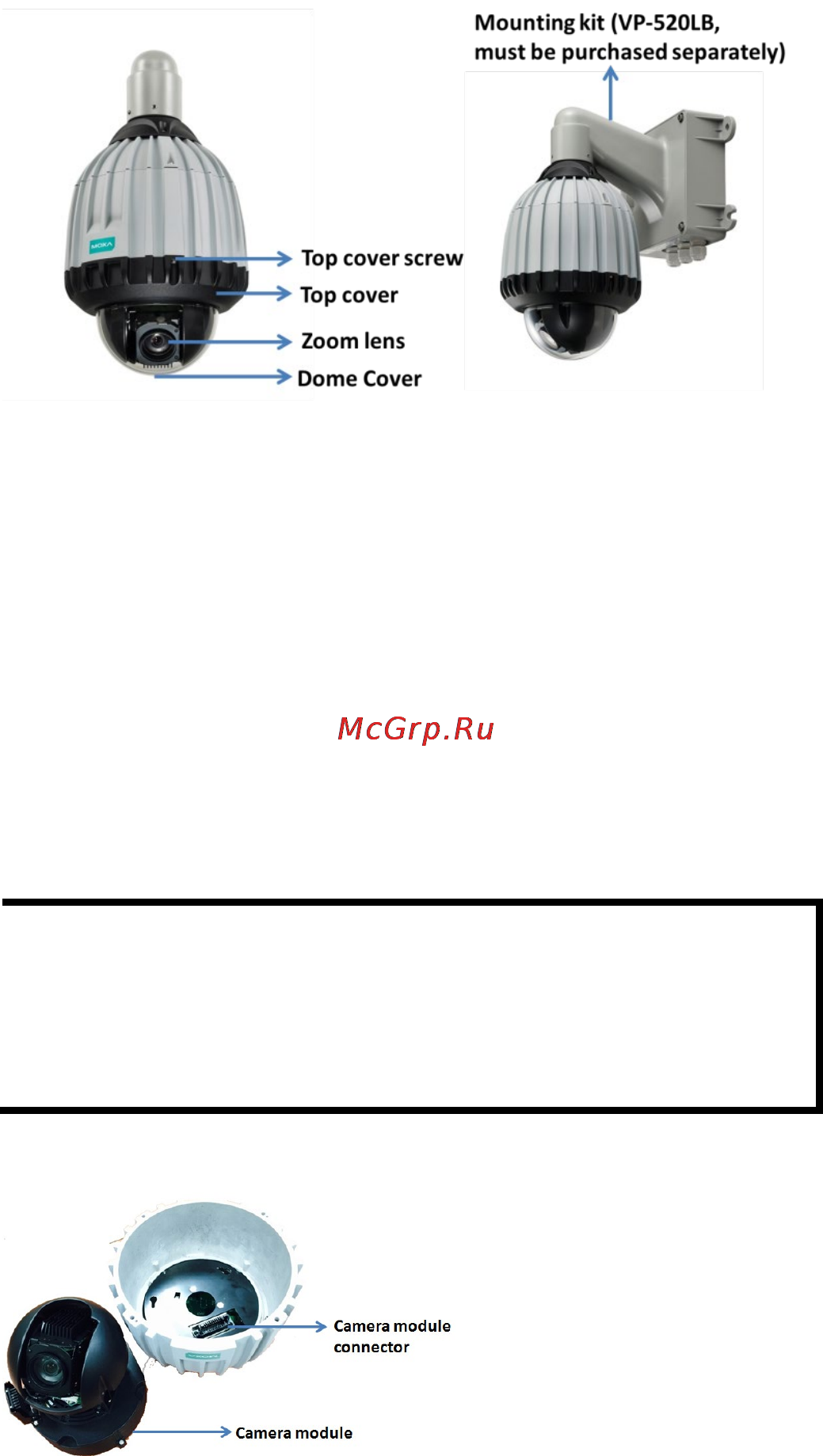

Appearance

• Top cover screws: Four screws used to secure the top cover.

• Top cover: The top cover can be removed to take out the camera

body for installing or re-installing the SD card.

• Zoom Lens: The VPort 66-2MP-M12 supports 2 lenses with different

optical zoom specs:

 22X: f = 4.3 mm (wide) to 94.6 mm (tele), F1.6 to F4.5

 30X: f = 4.3 mm (wide) to 129.0 mm (tele), F1.6 to F4.7

• Dome cover: The VPort 66-2MP has a vandal-proof PC dome cover,

satisfying EN 62262 (IEC 62262) class IK10 level.

• Mounting kit: For installing the VPort 66-2MP on a wall or pole. The

mounting kit is not included as a standard accessory with the VPort

66-2MP; it must be ordered and purchased separately. Refer to the

ordering information on the VPort 66-2MP’s datasheet or webpage for

mounting accessory information.

NOTE

The color of the dome cover can be customized based on your

installation environment. Please contact your Moxa sales

representative for information about this customization service.

Note that the color of the dome cover could decrease the light

transmittance of the video image. The darker the dome cover,

the greater the decrease of light transmittance.

Inside the camera

• Camera module: The main body of the VPort 66-2MP.

• Camera module connector: A patented connector for connecting

the camera module with the external connectors with cables.
