- 6 -
NOTE
• The heater and fan will be enabled when the internal
temperature is under -
10°C, and disabled when above 0°C.
The fan will be enabled when the internal temperature is
above 50°C, and disabled when under 35°C.
•
When using the 3.5 mm power jack to 2-pin terminal block
connector for a direct power line connection, be sure to pay
attention to the “+” and “-“ pin assignments on the
connector.
•
The power input rating of the VPort 66-
2MP is 24 VDC (21.6
to 26.4 VDC) or 24 VAC (21.6 to 26.4 VAC).
• Reset button: For rebooting and restoring factory defaults.
Reboot: Press the button once.
Factory default: Press and hold the button for at least 10
seconds.
• RJ45 Ethernet connector: The RJ45 Ethernet port is for 10/100
Mbps network transmission.

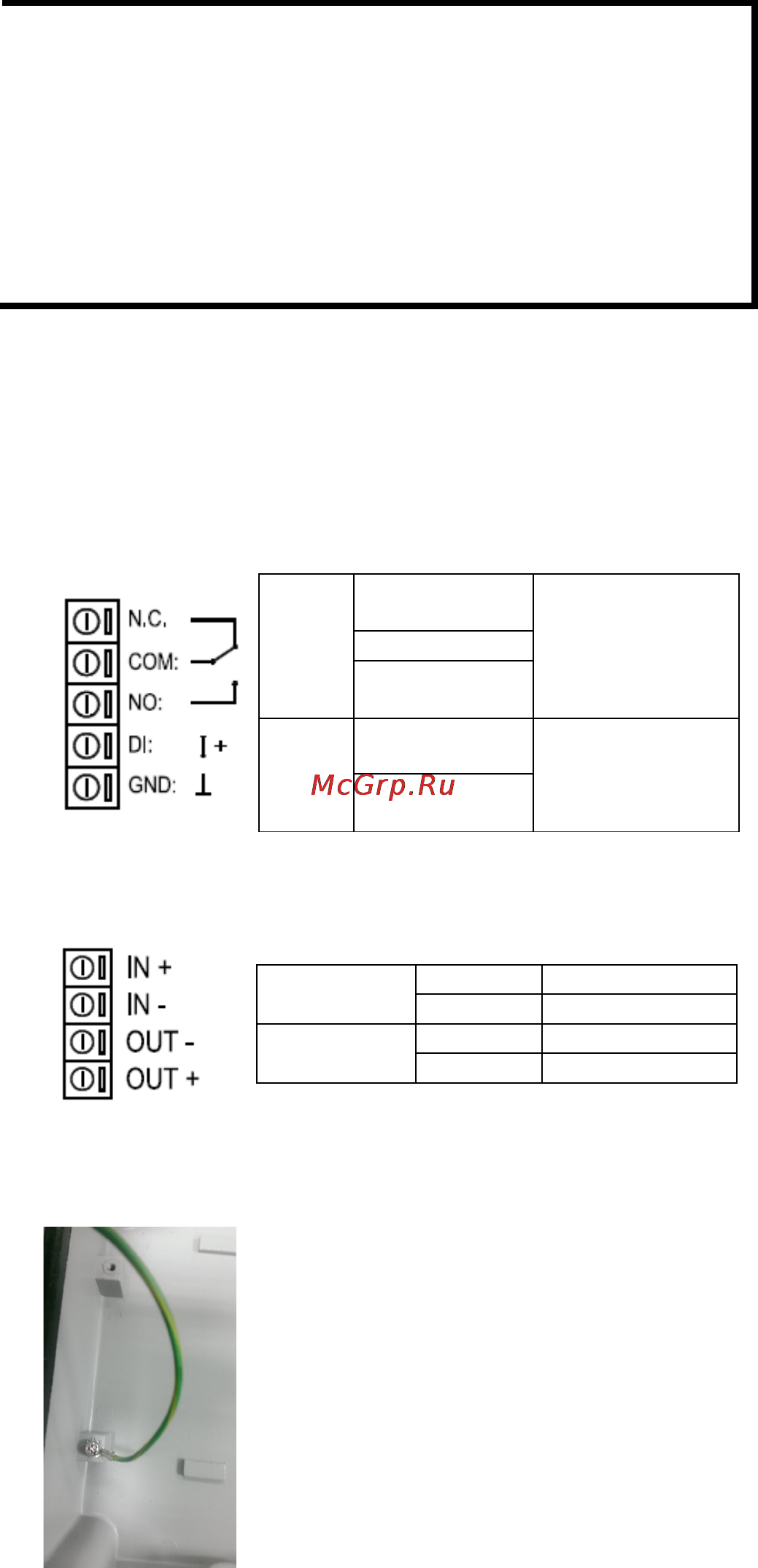

• 5-pin terminal block connector for DI/Relay: The VPort 66-2MP
supports 1 DI (digital input) and 1 relay output.
Relay
Output
N.C.
(normal close)
Max. 1 A, 24 VDC
Initial status is
Normal Open
COM (common)
NO
(normal open)
DI
DI: I+
High:
+13 V to +30 V
Low:
-30 V to +3 V
GND:
⊥
• 4-pin terminal block for audio input/output: The VPort 66-2MP
supports 1 audio input and 1 audio output for an external microphone
and external speaker.
Audio input
Audio input +
Audio input -
Audio output
Audio output -
Audio output +
• Grounding: Attach the grounding cable with attachment ring to the
mounting kit’s grounding screw (inside the mounting kit box) to
ground the VPort 66-2MP.
