Moxa VPort P16-1MP-M12-CAM36-T [11/15] Wiring requirements

- 11 -

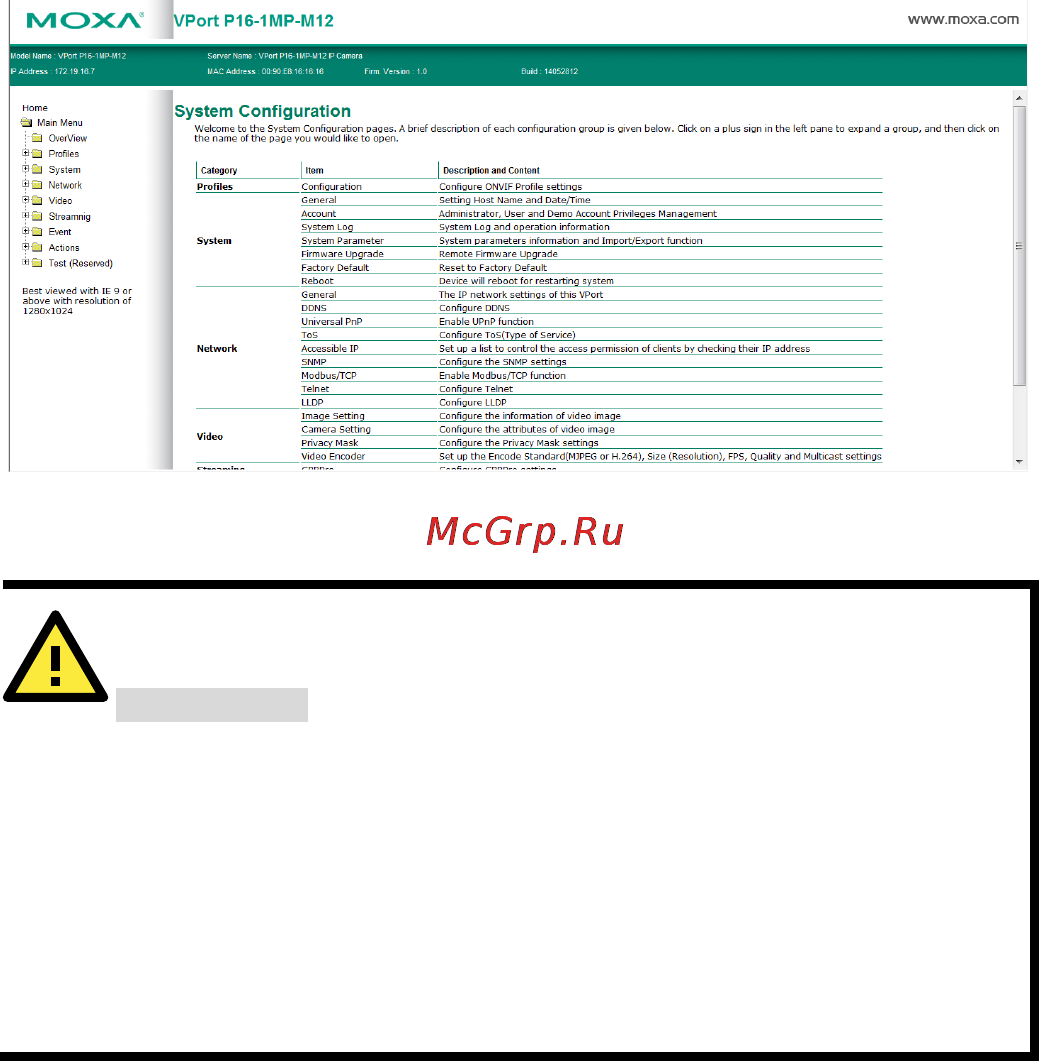

Step 5: Access the VPort’s system configuration.

Click on System Configuration to access the overview of the system

configuration to change the configuration. Model Name, Server Name,

IP Address, MAC Address and Firmware Version appear in the green

bar near the top of the page. Use this information to check the system

information and installation.

For details of each configuration, check the User’s Manual on the software

CD.

Wiring Requirements

ATTENTION

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your Moxa VPort

P16-1MP-M12.

Calculate the maximum possible current in each power wire and

common wire. Observe all el

ectrical codes dictating the

maximum current allowable for each wire size.

If the current goes above the maximum ratings, the wiring could

overheat, causing serious damage to your equipment.

You should also pay attention to the following:

• Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point.

• You can use the type of signal transmitted through a wire to

determine which wires should be kept separate. The rule of thumb is

that wiring that shares similar electrical characteristics can be

bundled together.

• Keep input wiring and output wiring separated.

• It is strongly advised that you label wiring to all devices in the system

when necessary.
