- 4 -

• -25 to 55°C (EN 50155, Class T1), or -40 to 70°C (EN 50155. Class TX)

operating temperature for rolling stock environments

• CE, FCC, UL 60950-1

• Built-in tamper alarm and Video Motion Detection (VMD)

• Pre, Trigger, and post snapshot images supported

• Sequential snapshot images supported

• Supports SMTP and FTP for alarm message transmission

• Supports HTTP event server

• 5-year warranty

NOTE

The VPort P16-1MP-M12 is designed for onboard environments,

and should be used inside the car or train.

Product Description of the VPort P16-1MP-M12

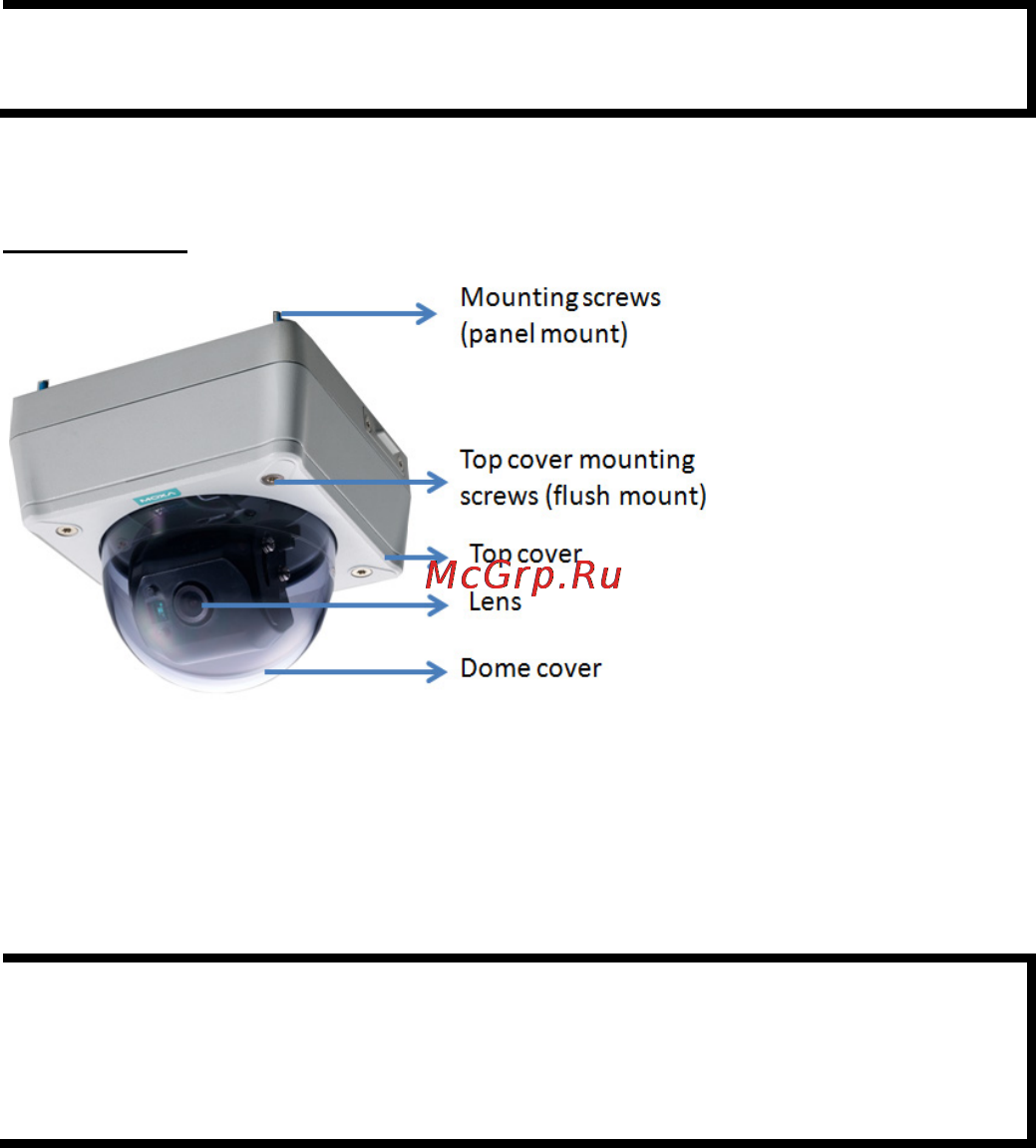

Appearance

• Mounting screw (panel mount): 4 nylock M4 screws (40 mm) are

included with the accessory to mount the VPort P16 on the wall or

ceiling; the external length is about 20 mm after installation. The 4

mounting screws can work with the 4 sets of nut, gasket, and spring

washer, or can be screwed directly into the screw holes.

NOTE

If the length of the mounting screws is insufficient for your

installation environment, you

may use longer M4 screws (not

provided with the product)

, or contact your Moxa sales

representative for customization service.

• Top cover mounting screws: 4 Nylock screws (10 mm) are

included with the accessory for flush mounting the top cover on the

ceiling.

• Top cover: The top cover can be removed for tuning the camera lens

position.

• Lens: The VPort P16-1MP-M12 can be used with 2 different lenses

with different focal lengths: 3.6 mm and 8 mm (Complete model

names include “-CAMxxxxxxx”. See page 2 for details).

• Dome cover: The VPort P16-1MP-M12 comes with a vandal-proof PC

dome cover, which complies with EN 62262 (IEC 62262) class IK10.
