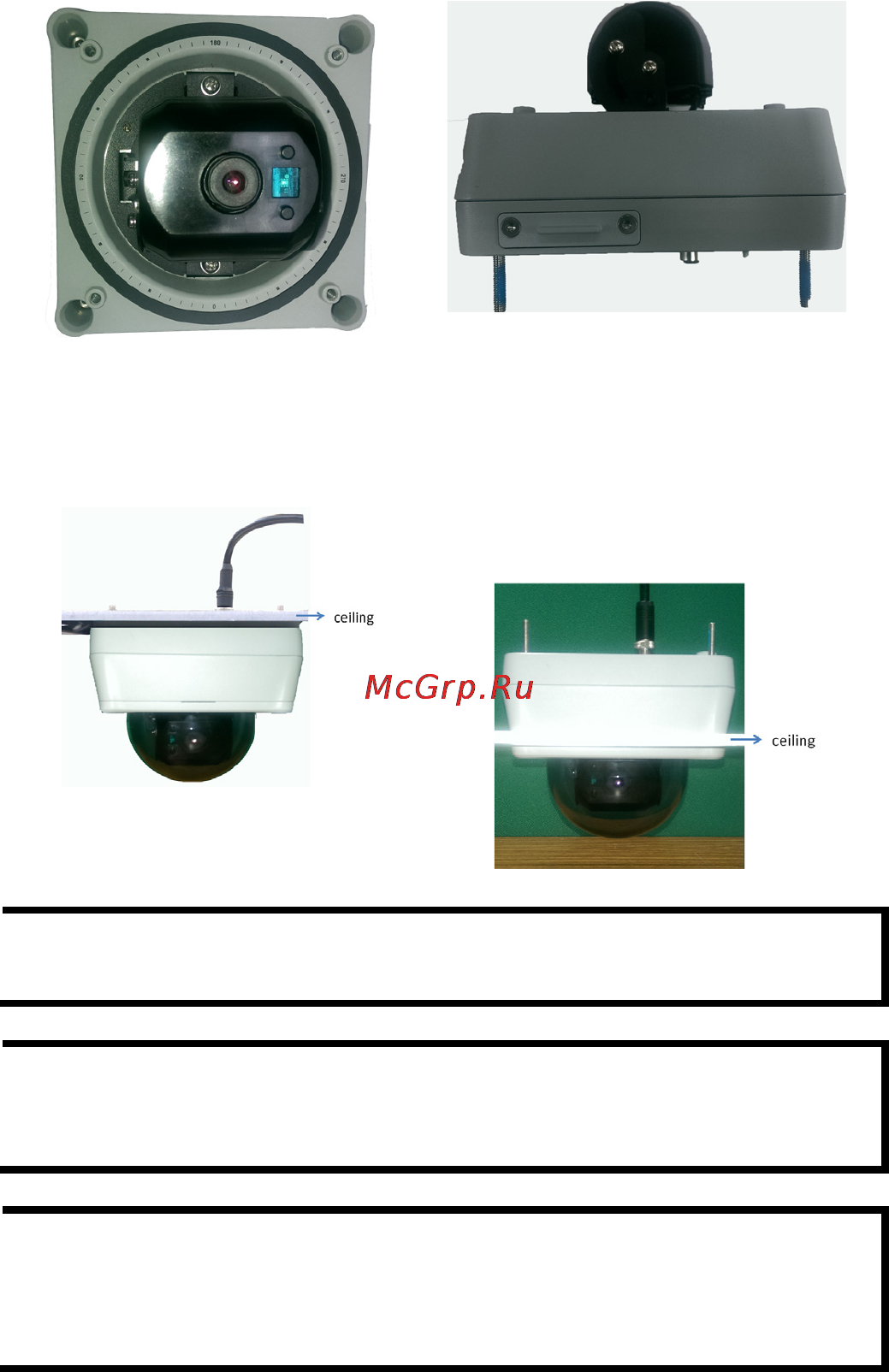

Step 4: Loosen the screws that fix the horizontal and vertical lens

positions. Next, tune the camera lens position, and connect to the

VPort P16’s web console to view the video image. After the lens

position is correct, fix the screws (5.5 kgf-cm torque is required).

Step 5: Fix the top cover to complete the installation.

Panel Mount

-screw the 4 top cover screws.

Flush Mount

Screw the 4 flush mount top screws

(

provided with the

accessory) on the

top cover

NOTE

Because of

the anti-vibration design, for onboard environments

kgf-cm torque is required for all mounting screws.

NOTE

The Nylock screw

s are designed to be used 2 or 3 times only.

recommend us

ing new Nylock screws if the existing

screws have

been loosened and retightened 2 times.

NOTE

The 4 flush mount top cover screws can fix the VPort P16’s top

cover

to ceilings that are 5 mm or less thick. You can provide

the

M4 screws yourself, or contact Moxa for special support if you

require longer top screws.

Software Installation

Step 1: Configure the VPort P16’s IP address

When the VPort P16 is first powered on, the POST (Power On Self Test)

will run for a few moments (about 40 seconds). The network environment

determines how the IP address is assigned.
