STEP 2:

Mounting

VPort 364A

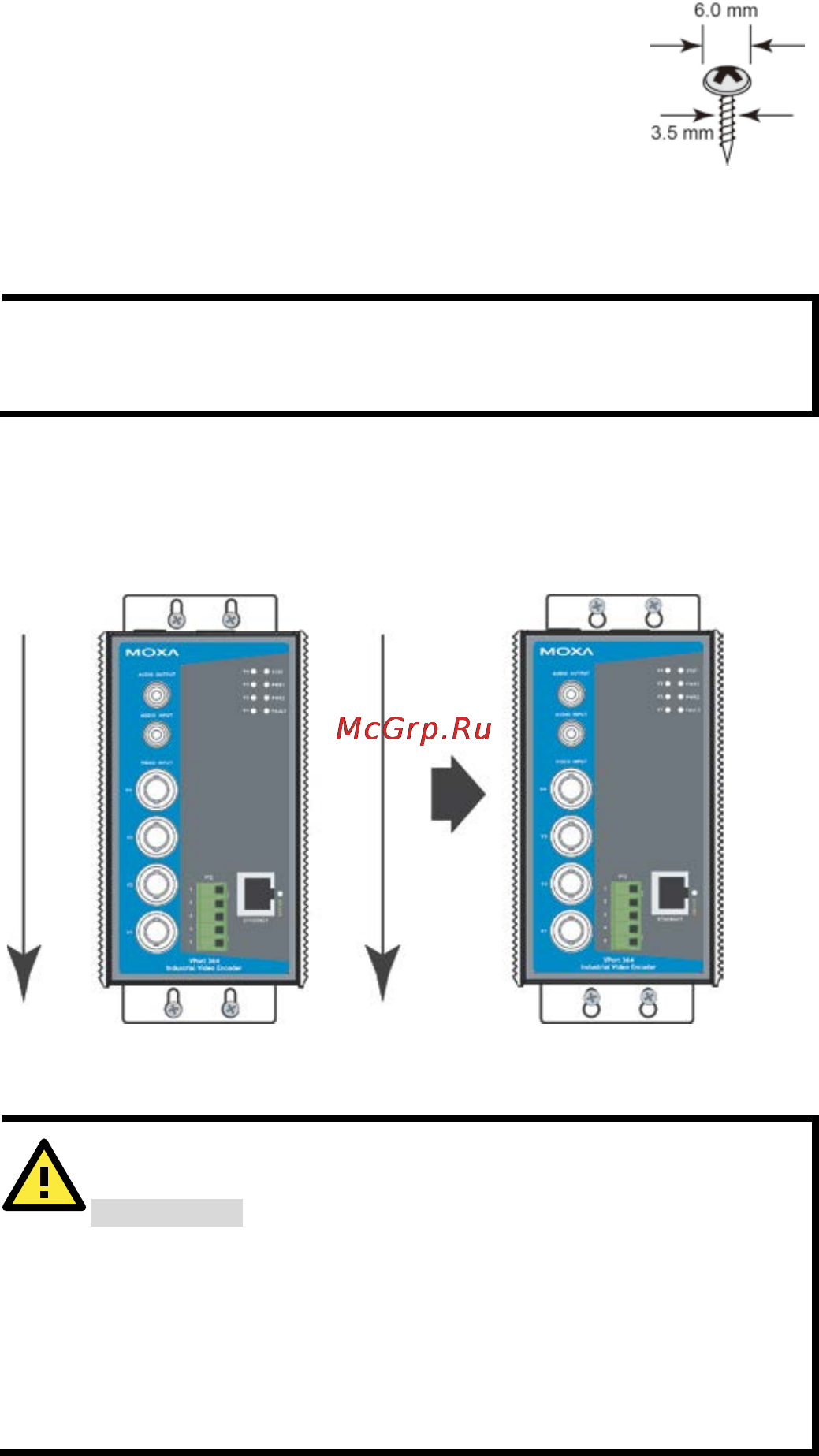

on the wall requires 4 screws. Use

the

VPort 364A, with wall mount plates attached, as a

guide to mark the correct locations of the 4 screws. The

heads of the screws should be less than 6.0 mm in

diameter, and the shafts should be less than 3.5 mm in

diameter, as shown in the figure at the right.

Do not screw the screws in all the way

—leave a

space of

about 2 mm to allow room for sliding the wall mount panel

between the wall and the screws.

NOTE

Test the screw head and shank size by inserting the screw into

one of the keyhole shaped apertures of the wall mounting plates,

before it is screwed into the wall.

STEP 3:

Once the screws are fixed in the wall, insert the four screw heads through

the large parts of the keyhole-shaped apertures, and then slide the VPort

364A downwards, as indicated below. Tighten the four screws for added

stability.

Wiring Requirements

WARNING

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your

Moxa VPort 364A.

Calculate the maximum possible current in each power wire and

common wire. Observe all

electrical codes dictating the

maximum allowable

current for each wire size.

If the current goes above the maximum ratings, the wiring could

overheat, causing serious damage to your equipment.

You should also pay attention to the following items:

• Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point.
