ATTENTION

Before connecting the VPort to the AC/DC power inputs, make

sure the DC power source voltage is stable.

Wiring the Relay Output

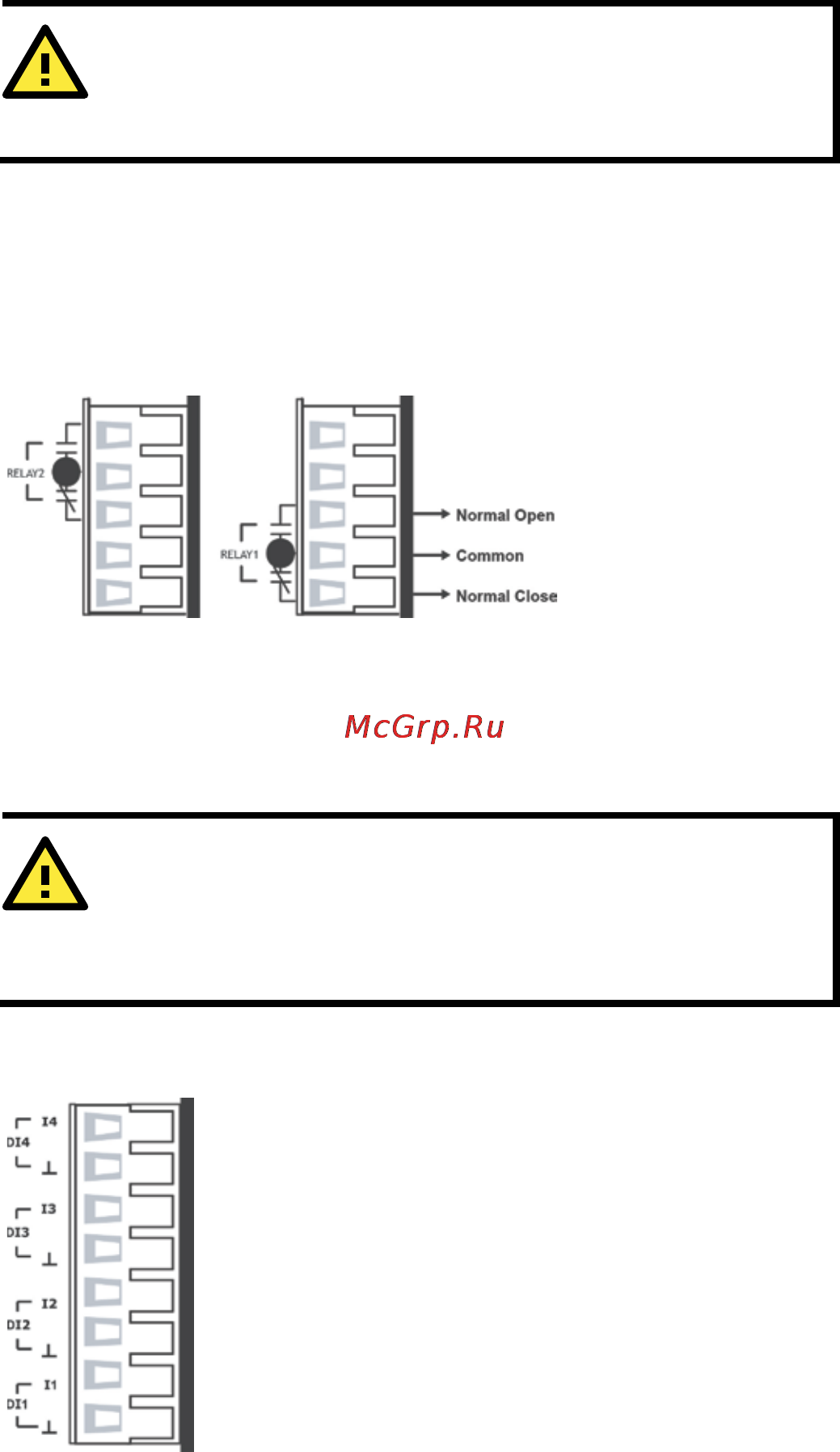

The VPort 364A has two sets of relay output, relay 1 and relay 2, which

are located on the two 5-pin terminal block connectors. Each relay output

consists of the 3 contacts of the terminal block on the VPort 364A’s top

panel.

The relay output can be set up for:

1. System alarm: Power failure and Network disconnected.

2. Event alarm: VMD (Video Motion Detection) , Video loss, Digital

Inputs and CGI Event

ATTENTION

The current and power capacity of the relay output is a maximum

of 24 VDC @ 1A. You should be careful not to exceed this power

specification.

Wiring the Digital Inputs

VPort 364A has four sets of digital input, DI1, DI2,

DI3 and DI4. Each DI consists of two contacts of the

-pin terminal block connector on VPort

’s top panel.

Top and front views of one of the terminal block

connectors are shown here.

STEP 1:

Insert the negative (ground)/positive DI

wires into the

┴/I1 terminals.

STEP 2: To keep the DI wires from pulling loose, use

a small f

lat-blade screwdriver to tighten the

wire

clamp screws on the front of the terminal block

connector.

STEP 3: Insert the plastic terminal block connector prongs into the

terminal block receptor, which is located on VPort 364A’s top panel.

Communication Connections

VPort 364A models have one RJ45 console port (RS-232 interface), and 2

10/100BaseT(X) Ethernet port or 1 100BaseFX (SC-type connector) fiber

port.
