Hotpoint-Ariston OFD 610 (MR) RU/HA [3/20] Electrical connections

DATA PLATE

Dimensions

width cm 43.5

height cm 32

depth cm 41.5

Volume

lt. 58

Dimensions of

models with

removable racks

width cm 37.5

height cm 32

depth cm 41.5

Volume of models

with removable

racks

lt. 50

Electrical

connections

voltage: 220-230V~ or 220-240V~

50/60 Hz or 50Hz (see data plate)

maximum power absorbed 2800W

ENERGY LABEL

Directive 2002/40/EC on the label

of electric ovens.

Norm EN 50304

Energy consumption for Natural

convection – heating mode:

Traditional mode

Declared energy consumption for

Forced convection Class – heating

mode: Baking

This appliance conforms to the

following European Economic

Community directives:

Voltage) and subsequent

amendments;

- 2004/108/EEC of 15/12/04

(Electromagnetic Compatibility) and

subsequent amendments;

- 93/68/EEC of 22/07/93 and

subsequent amendments.

- 2002/96/EC and subsequent

amendments.

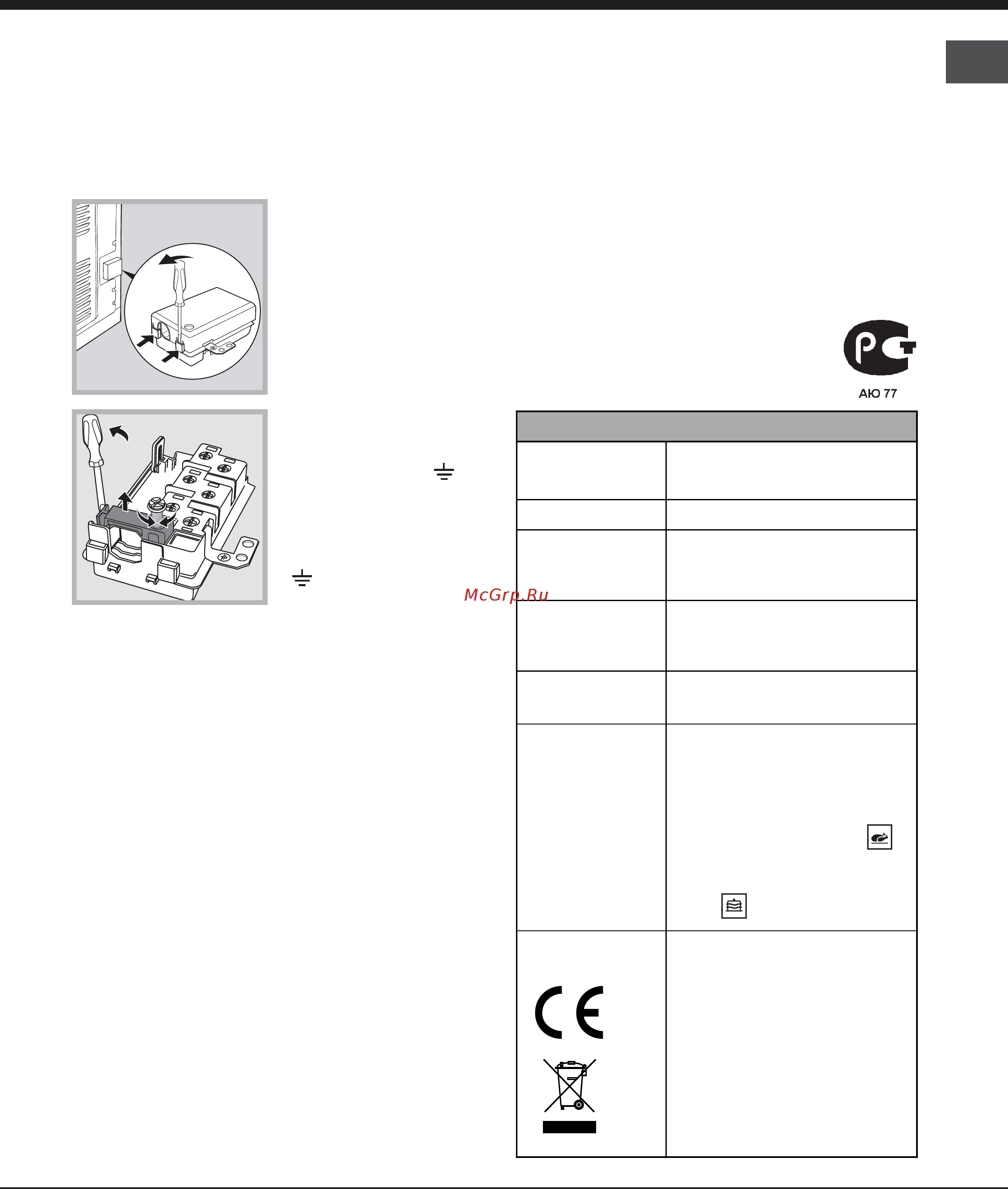

Electrical connections

! Ovens equipped with a three-pole power supply

cable are designed to operate with alternating current

at the voltage and frequency indicated on the data

plate located on the appliance (see below).

Fitting the power suppl y cable

1. Open the terminal

board by inserting a

screwdriver into the side

tabs of the cover. Use

the screwdriver as a

lever by pushing it down

to open the cover (see

diagram).

2. Loosen the cable

clamp screw and remove

it, using a screwdriver as

a lever (see figure).

3. Remove the wire

contact screws L-N-

then fasten the wires

under the screw heads,

respecting the colour

code: Blue (N), Brown (L)

and Yellow-Green Verde

( ).

Connecting the supply cable to the mains

Install a standardised plug corresponding to the load

indicated on the data plate (see side).

The appliance must be directly connected to the mains

using an omnipolar circuit-breaker with a minimum contact

opening of 3 mm installed between the appliance and the

mains, suitable for the load indicated and complying with

current electrical regulations (the earthing wire must not be

interrupted by the circuit-breaker). The supply cable must

not come into contact with surfaces with temperatures

higher than 50°C.

! The installer must ensure that the correct electrical

connection has been made and that it is compliant with

safety regulations.

Before connecting to the power supply, make sure that:

 The appliance is earthed and the plug is compliant

with the law.

 The socket can withstand the maximum power of the

appliance, which is indicated on the data plate (see

below).

 The voltage must be in the range between the

values indicated on the data plate (see below).

 The socket is compatible with the plug of the

appliance. If the socket is incompatible with the

plug, ask an authorised technician to replace it. Do

not use extension cords or multiple sockets.

! Once the appliance has been installed, the power

supply cable and the electrical socket must be easily

accessible.

! The cable must not be bent or compressed.

! The cable must be checked regularly and replaced

by authorised technicians only (see Assistance).

! The manufacturer declines any liability should

these safety measures not be observed.
