• Do not position blinds behind the cooker or less

than 200 mm away from its sides.

• Any hoods must be installed according to the

instructions listed in the relevant operating manual.

Levelling

If it is necessary to level the

appliance, screw the adjustable

feet into the places provided on

each corner of the base of the

cooker (

see figure

The legs* fit into the slots on

the underside of the base of

the cooker.

Electrical connection

Install a standardised plug corresponding to the load

indicated on the appliance data plate (

see Technical

data table

The appliance must be directly connected to the mains

using an omnipolar circuit-breaker with a minimum

contact opening of 3 mm installed between the appliance

and the mains. The circuit-breaker must be suitable for

the charge indicated and must comply with current

national legislation (the earthing wire must not be

interrupted by the circuit-breaker). The supply cable must

be positioned so that it does not come into contact with

temperatures higher than 50°C at any point.

Before connecting the appliance to the power supply,

make sure that:

• The appliance is earthed and the plug is compliant with

the law.

• The socket can withstand the maximum power of the

appliance, which is indicated by the data plate.

• The voltage is in the range between the values

indicated on the data plate.

• The socket is compatible with the plug of the

appliance. If the socket is incompatible with the

plug, ask an authorised technician to replace it. Do

not use extension cords or multiple sockets.

! Once the appliance has been installed, the power

supply cable and the electrical socket must be easily

accessible.

! The cable must not be bent or compressed.

! The cable must be checked regularly and replaced

by authorised technicians only.

! The manufacturer declines any liability should

these safety measures not be observed.

Gas connection

Connection to the gas network or to the gas cylinder

may be carried out using a flexible rubber or steel hose,

in accordance with current national legislation and after

making sure that the appliance is suited to the type of

gas with which it will be supplied (see the rating sticker

on the cover: if this is not the case

see below

). When

using liquid gas from a cylinder, install a pressure

regulator which complies with current national

regulations. To make connection easier, the gas supply

may be turned sideways*: reverse the position of the

hose holder with that of the cap and replace the gasket

that is supplied with the appliance.

! Check that the pressure of the gas supply is

consistent with the values indicated in the Table of

burner and nozzle specifications (

see below

). This will

ensure the safe operation and durability of your

appliance while maintaining efficient energy

consumption.

Gas connection using a flexible rubber hose

Make sure that the hose complies with current national

legislation. The internal diameter of the hose must

measure: 8 mm for liquid gas supply; 13 mm for

methane gas supply.

Once the connection has been performed, make sure

that the hose:

• Does not come into contact with any parts that

reach temperatures of over 50°C.

• Is not subject to any pulling or twisting forces and

that it is not kinked or bent.

• Does not come into contact with blades, sharp

corners or moving parts and that it is not

compressed.

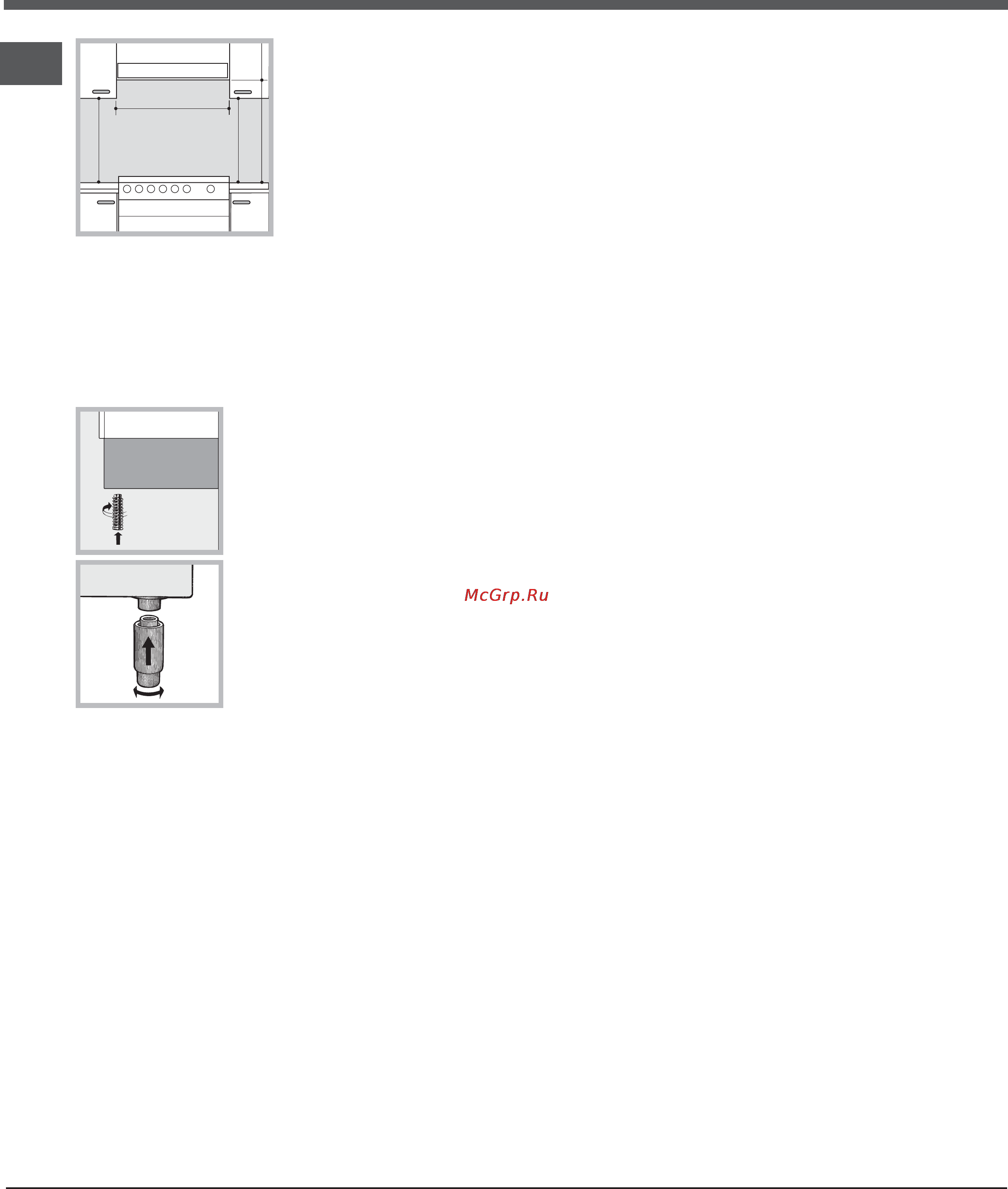

HOOD

420

Min.

min.

650

mm. with hood

min.

700

mm. without hood

mm.

600

Min. mm.

420

Min. mm.

* Only available in certain models
