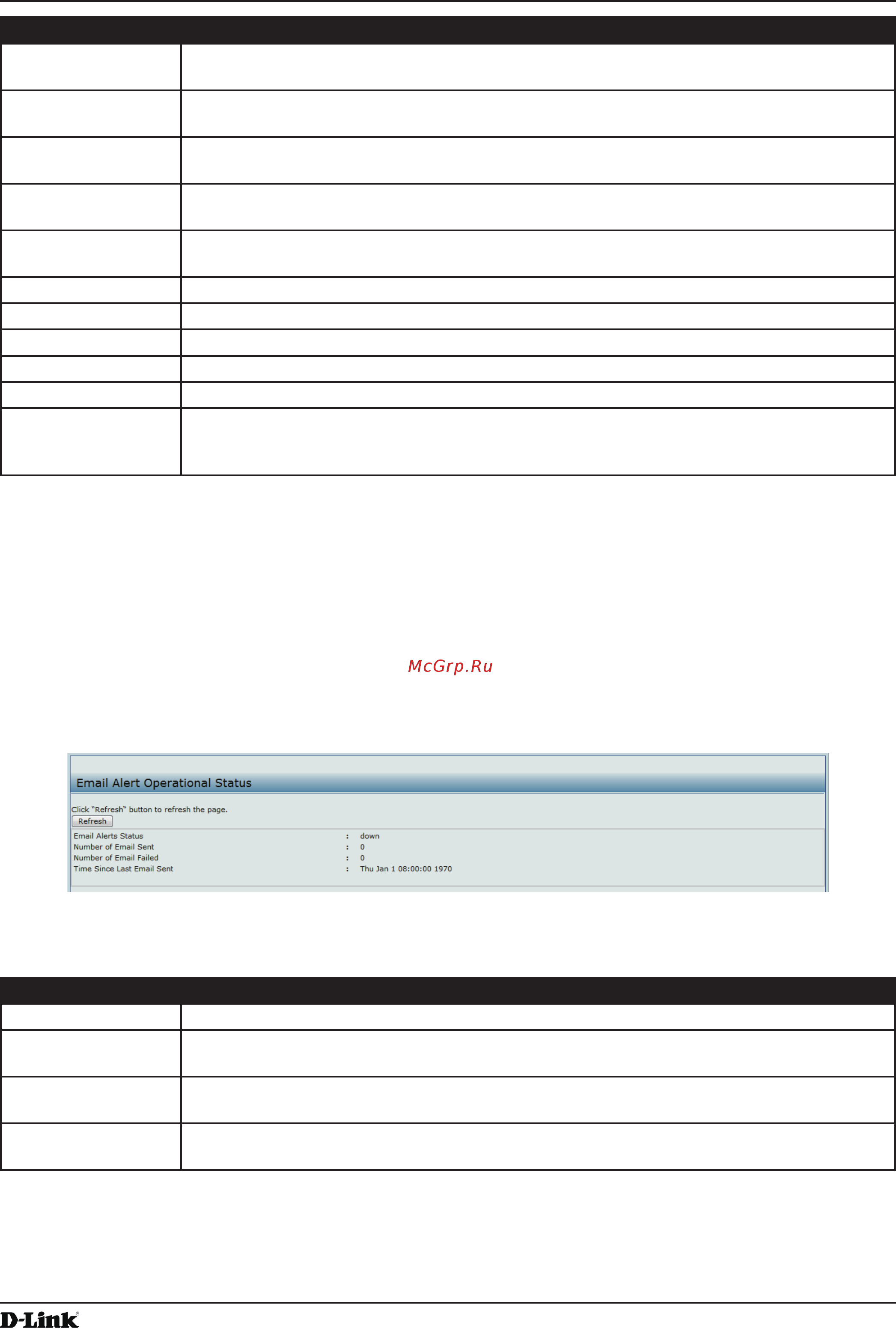

![D-Link DWL-3600AP [34/128] Viewing email alert operational status](/views2/1203430/page34/bg22.png)
Unied Access Point Administrator’s Guide
Unied Access Point Administrator’s Guide
Page 34
October 2013
Section 3 - Viewing Access Point Status
Field Description
Multicast Frames
Transmitted
Count of successfully transmitted MSDU frames where the multicast bit is set in the
destination MAC address.
Duplicate Frame
Count
Number of times a frame is received and the Sequence Control eld indicates is a duplicate.
Failed Transmit
Count
Number of times an MSDU is not transmitted successfully due to transmit attempts
exceeding either the short retry limit or the long retry limit.
Transmit Retry
Count
Number of times an MSDU is successfully transmitted after one or more retries.
Multiple Retry
Count
Number of times an MSDU is successfully transmitted after more than one retry.
RTS Success Count Count of CTS frames received in response to an RTS frame.
RTS Failure Count Count of CTS frames not received in response to an RTS frame.
ACK Failure Count Count of ACK frames not received when expected.
FCS Error Count Count of FCS errors detected in a received MPDU frame.
Frames Transmitted Count of each successfully transmitted MSDU.
WEP Undecryptable
Count
Count of encrypted frames received and the key conguration of the transmitter indicates
that the frame should not have been encrypted or that frame was discarded due to the
receiving station not implementing the privacy option.
Table 15 - Radio Statistics Information
Viewing Email Alert Operational Status
The Email Alert Operational Status page provides information about the email alerts sent based on the syslog
messages generated in the AP.
To view the Email Alert Operational Status, click the Status > Email Alert Status tab.
To congure the email alerts, see “Conguring Email Alert” on page 72.
Figure 15 - Email Alert Operational Status
The following table describes details about the Email Alert Operational Status.
Field Description
Email Alert Status The Email Alert operational status The status is either Up or Down. The default is Down.
Number of Email
Sent
The total number of email sent so far. The range is an unsigned integer of 32 bits. The
default is 0.
Number of Email
Failed
The total number of email failures so far. The range is an unsigned integer of 32 bits. The
default is 0.
Time Since Last
Email Sent
The time since the last email was sent. Time format is used. The default is 00 days 00 hours
00 minutes 00 seconds.
Table 16 - Email Alert Status
