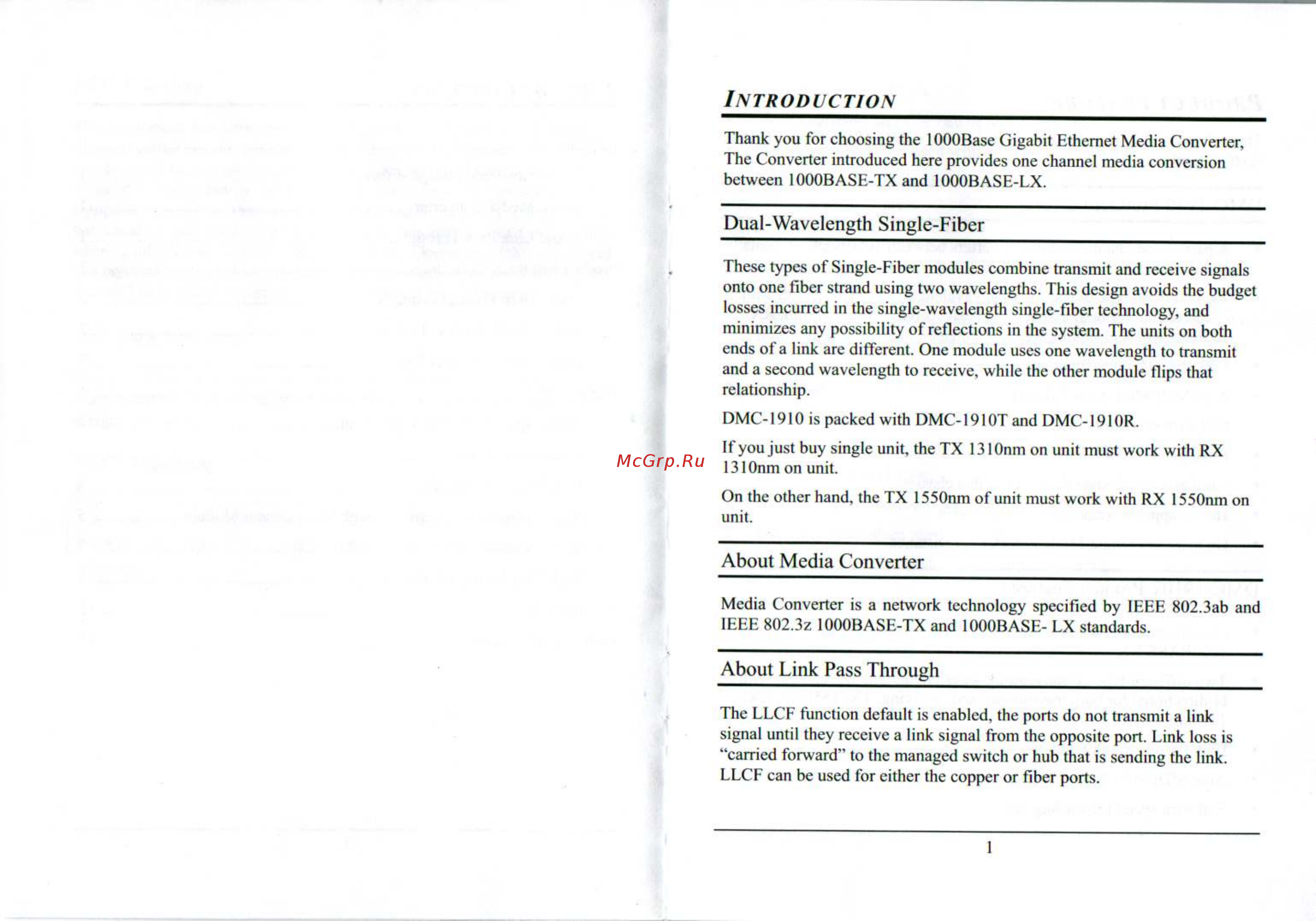

INTRODUCTION Thank you for choosing the lOOOBase Gigabit Ethernet Media Converter The Converter introduced here provides one channel media conversion between 1000BASE TX and 1000BASE LX Dual Wavelength Single Fiber These types of Single Fiber modules combine transmit and receive signals onto one fiber strand using two wavelengths This design avoids the budget losses incurred in the single wavelength single fiber technology and minimizes any possibility of reflections in the system The units on both ends of a link are different One module uses one wavelength to transmit and a second wavelength to receive while the other module flips that relationship DMC 1910 is packed with DMC 191OT and DMC 191 OR If you just buy single unit the TX 1310nm on unit must work with RX 1310nm on unit On the other hand the TX 1550nm of unit must work with RX 1550nm on unit About Media Converter Media Converter is a network technology specified by IEEE 802 3ab and IEEE 802 3z 1000BASE TX and 1000BASE LX standards About Link Pass Through The LLCF function default is enabled the ports do not transmit a link signal until they receive a link signal from the opposite port Link loss is carried forward to the managed switch or hub that is sending the link LLCF can be used for either the copper or fiber ports I
