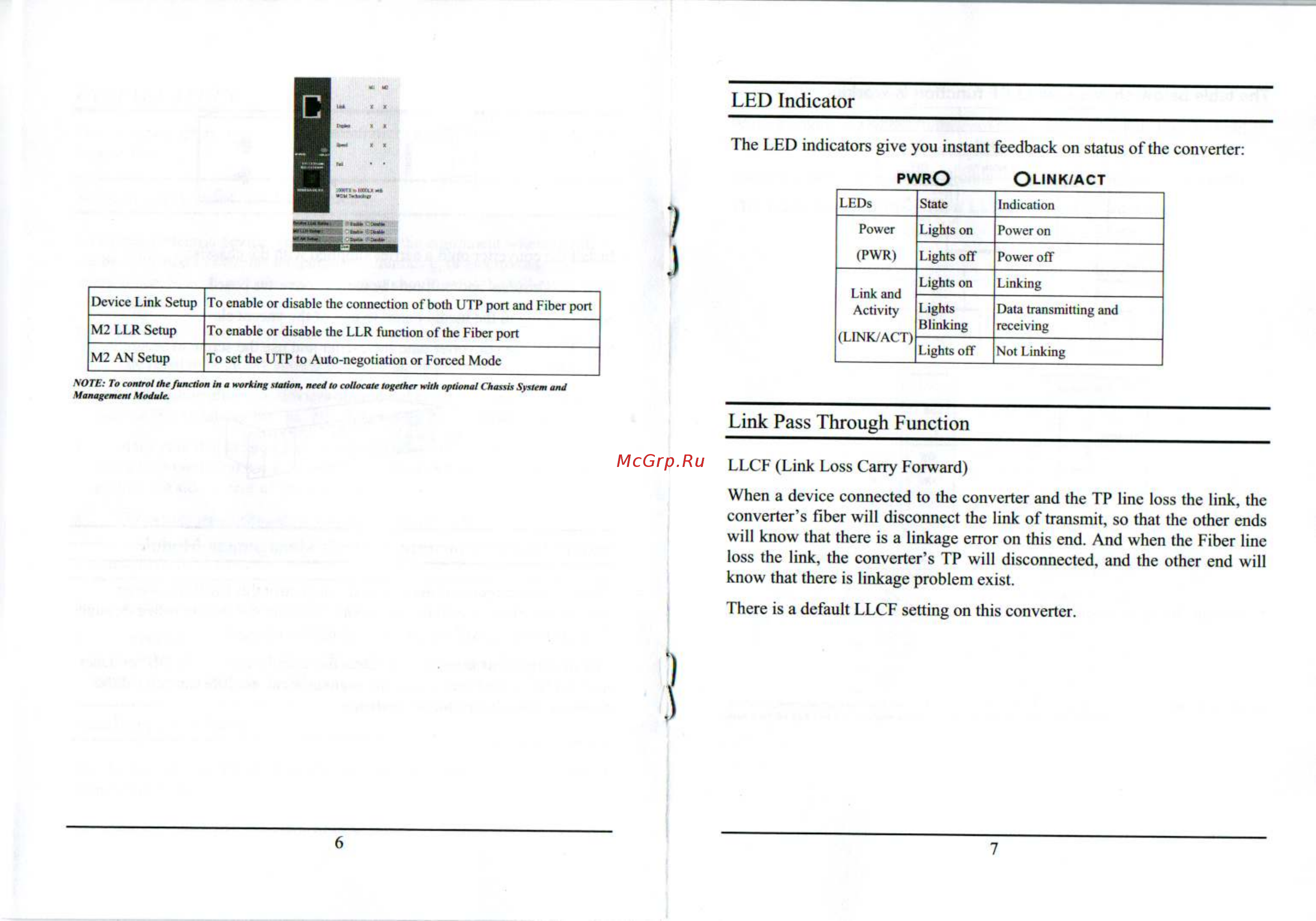

LED Indicator The LED indicators give you instant feedback on status of the converter PWRO OLINK ACT LEDs Device Link Setup To enable or disable the connection of both UTP port and Fiber port M2 LLR Setup To enable or disable the LLR function of the Fiber port M2 AN Setup To set the UTP to Auto negotiation or Forced Mode State Indication Power Lights on Power on PWR Lights off Power off Lights on Linking Lights Blinking Data transmitting and receiving Lights off Not Linking Link and Activity LINK ACT NOTE To control the function in a working station need to collocate together with optional Chassis System and Management Module Link Pass Through Function LLCF Link Loss Carry Forward When a device connected to the converter and the TP line loss the link the converter s fiber will disconnect the link of transmit so that the other ends will know that there is a linkage error on this end And when the Fiber line loss the link the converter s TP will disconnected and the other end will know that there is linkage problem exist There is a default LLCF setting on this converter 6 7
