D-Link DMC-1910R [9/11] Pecifications

Содержание

• D link 1
• Onverter 1
• D link 2
• Able o 3
• Ce mark warning 3
• Fcc warning 3
• Ontents 3
• Vcci warning 3
• About link pass through 4
• About media converter 4
• Dual wavelength single fiber 4
• Ntroduction 4
• Dmc 1910 product features 5
• Dmc 1910r product features 5
• Dmc 1910t product features 5
• Roduct feature 5
• Connecting to power 6
• Installing in a chassis 6
• Monitoring the converter through management module 6
• Nstalla tion 6
• Selecting a site for the equipment 6
• Converter s fiber will disconnect the link of transmit so that the other ends 7
• Know that there is linkage problem exist 7
• Led indicator 7
• Link pass through function 7
• Llcf link loss carry forward 7
• Loss the link the converter s tp will disconnected and the other end will 7
• Olink act 7
• The led indicators give you instant feedback on status of the converter 7
• There is a default llcf setting on this converter 7
• When a device connected to the converter and the tp line loss the link the 7
• Will know that there is a linkage error on this end and when the fiber line 7
• 1 by single fiber module is designed in dmc 1910 this function is not necessary 8
• 2 by single fiber module is designed in dmc 1910 this function is not necessary 8
• A on off 8
• B off off 8
• Media converter llr auto negotiation 8
• Mote if connecting two converters with llr function in both ends it is recommended that the monitor end converter had 8
• The converter s fiber will disconnect the link of transmit 8
• The table below shows how llcf function is working llr link loss return 8
• The table below shows how llr function is working 8
• There is a switch to enable or disable the function of the media converter 8
• To turn off the llr function and turn on the llr function of the remote end converter 8
• When a device connected to the converter and the fiber line loss the link 8
• By single fiber module is designed in dmc 1910 this function is not 9
• Converters must set to forced mode 9
• Forced mode and off for auto negotiation mode 9
• Necessary 9
• Negotiation and when using two converters at the same time the two 9
• Note be sure the opposite end is using the same setting forced or auto 9
• Pecifications 9
• Switch 9
• Switch 1 fiber mode switch 9
• Switch 2 9
• Switch 2 llr 9
• There is a two pin dip switch on the module which defines as switch 1 and 9
• When the switch was turned to on it means that the fiber was turned to 9
• D link 10
• Limited warranty 10
• Nformation 10
• Rderin 10
• Contents are subject to change without prior notice copyright 2002 by d link 11
• Copyright statement no part of this publication or documentation accompanying this 11
• Corporation d link systems inc all rights reserved 11
• Corporation d link systems inc as stipulated by the united states copyright act of 11
• D link office 11
• For detailed warranty outside the united states please contact corresponding local 11
• Product may be reproduced in any form or by any means or used to make any derivative 11
• Register your d link product online at http support dlink com reqister 11
• Such as translation transformation or adaptation without permission from d link 11

Похожие устройства

• Hotpoint-Ariston FK 838J C AN Инструкция по эксплуатации
• Hotpoint-Ariston LSFF 9H124 CX Инструкция по эксплуатации
• Hotpoint-Ariston BD 2922 EU/HA Инструкция по эксплуатации
• Hotpoint-Ariston WK 22M DSL0 Инструкция по эксплуатации
• Hotpoint-Ariston 7HKRD 640 B RU/HA Инструкция по эксплуатации
• Hotpoint-Ariston 7HKRD 640 X RU/HA Инструкция по эксплуатации
• Hotpoint-Ariston WMSG 600 B Инструкция по эксплуатации
• Hotpoint-Ariston II E75 AA0 Инструкция по эксплуатации
• Hotpoint-Ariston WML 708 Инструкция по эксплуатации
• Hotpoint-Ariston II DC60 AA0 Инструкция по эксплуатации
• Hotpoint-Ariston OL 1038 LI RFH (CF) BR Инструкция по эксплуатации
• Hotpoint-Ariston SL B16 APR Инструкция по эксплуатации
• Hotpoint-Ariston FK1041LP.20 X/HA(DS) Инструкция по эксплуатации
• Hotpoint-Ariston SL C20 AA0 Инструкция по эксплуатации
• Hotpoint-Ariston FK1041LP.20 X/HA(CF) Инструкция по эксплуатации
• Hotpoint-Ariston KIS 644 DD Z S Инструкция по эксплуатации
• Hotpoint-Ariston WK 24E AR0 Инструкция по эксплуатации
• Hotpoint-Ariston FP 1009 AX0 Инструкция по эксплуатации
• Hotpoint-Ariston RPD 927 DX Инструкция по эксплуатации
• Hotpoint-Ariston SJ 4010 AX0 Инструкция по эксплуатации

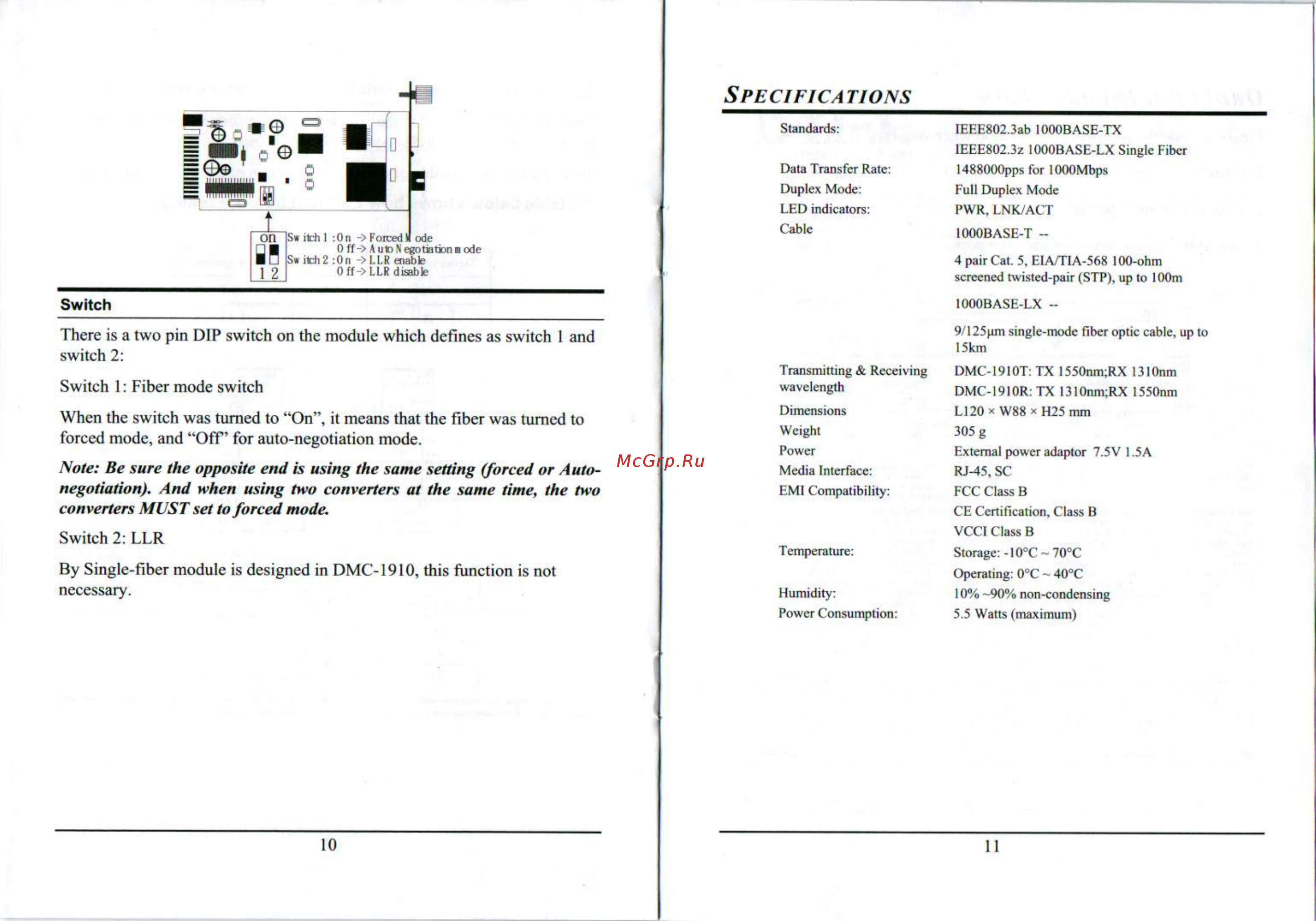

SPECIFICATIONS Standards Data Transfer Rate IEEE802 3ab 1000BASE TX lEEE802 3z I000BASE LX Single Fiber 1488000pps for 1000Mbps Duplex Mode Full Duplex Mode LED indicators PWR LNK ACT Cable 1000BASE T 4 pair Cat 5 E1A T1A 568 100 ohm screened twisted pair STP up to 100m Switch I000BASE LX There is a two pin DIP switch on the module which defines as switch 1 and switch 2 9 125pm single mode fiber optic cable up to 15km Transmitting Receiving wavelength Switch 1 Fiber mode switch When the switch was turned to On it means that the fiber was turned to forced mode and Off for auto negotiation mode Note Be sure the opposite end is using the same setting forced or Auto negotiation And when using two converters at the same time the two converters MUST set to forced mode Dimensions Weight Power Media Interface EMI Compatibility DMC 1910T TX 1550nm RX 1310nm DMC 19IOR TX 1310nm RX 1550nm L120 x W88 H25 mm 305 g External power adaptor 7 5V 1 5A RJ 45 SC FCC Class B CE Certification Class B VCCI Class B Switch 2 LLR By Single fiber module is designed in DMC 1910 this function is not necessary Temperature Storage IO C 70 C Operating 0 C 40 C Humidity 10 90 non condensing 5 5 Watts maximum Power Consumption 10 n
