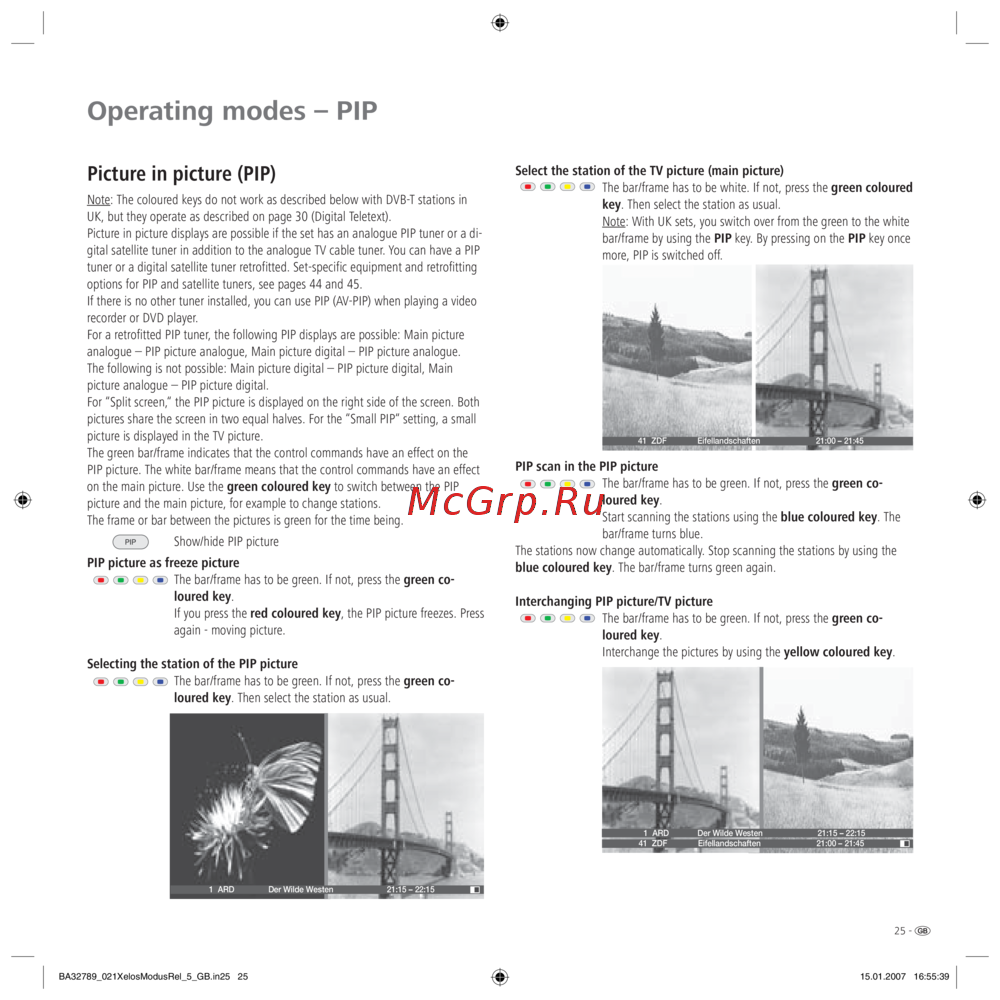

Picture in picture (PIP)
Note: The coloured keys do not work as described below with DVB-T stations in
UK, but they operate as described on page 30 (Digital Teletext).
Picture in picture displays are possible if the set has an analogue PIP tuner or a di-
gital satellite tuner in addition to the analogue TV cable tuner. You can have a PIP
tuner or a digital satellite tuner retrofitted. Set-specific equipment and retrofitting
options for PIP and satellite tuners, see pages 44 and 45.
If there is no other tuner installed, you can use PIP (AV-PIP) when playing a video
recorder or DVD player.
For a retrofitted PIP tuner, the following PIP displays are possible: Main picture
analogue – PIP picture analogue, Main picture digital – PIP picture analogue.
The following is not possible: Main picture digital – PIP picture digital, Main
picture analogue – PIP picture digital.
For “Split screen,“ the PIP picture is displayed on the right side of the screen. Both
pictures share the screen in two equal halves. For the “Small PIP“ setting, a small
picture is displayed in the TV picture.
The green bar/frame indicates that the control commands have an effect on the
PIP picture. The white bar/frame means that the control commands have an effect
on the main picture. Use the green coloured key to switch between the PIP
picture and the main picture, for example to change stations.
The frame or bar between the pictures is green for the time being.
Show/hide PIP picture
PIP picture as freeze picture
The bar/frame has to be green. If not, press the green co-
loured key.
If you press the red coloured key, the PIP picture freezes. Press
again - moving picture.
Selecting the station of the PIP picture
The bar/frame has to be green. If not, press the green co-
loured key. Then select the station as usual.
Select the station of the TV picture (main picture)
The bar/frame has to be white. If not, press the green coloured
key. Then select the station as usual.
Note: With UK sets, you switch over from the green to the white
bar/frame by using the PIP key. By pressing on the PIP key once
more, PIP is switched off.
PIP scan in the PIP picture
The bar/frame has to be green. If not, press the green co-
loured key.
Start scanning the stations using the blue coloured key. The
bar/frame turns blue.
The stations now change automatically. Stop scanning the stations by using the
blue coloured key. The bar/frame turns green again.
Interchanging PIP picture/TV picture
The bar/frame has to be green. If not, press the green co-
loured key.
Interchange the pictures by using the yellow coloured key.
1 ARD Der Wilde Westen 21:15 – 22:15
41 ZDF Eifellandschaften 21:00 – 21:45
1 ARD Der Wilde Westen 21:15 – 22:15
41 ZDF Eifellandschaften 21:00 – 21:45
Operating modes – PIP
