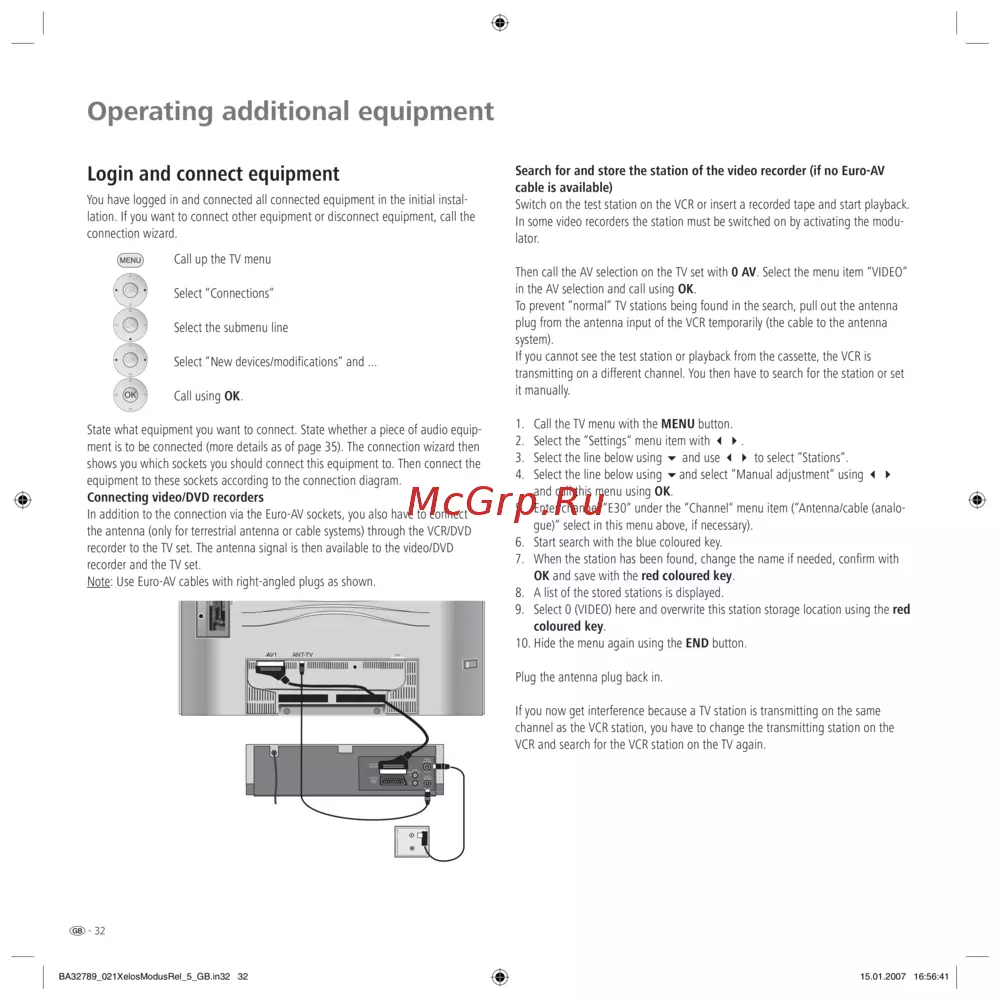

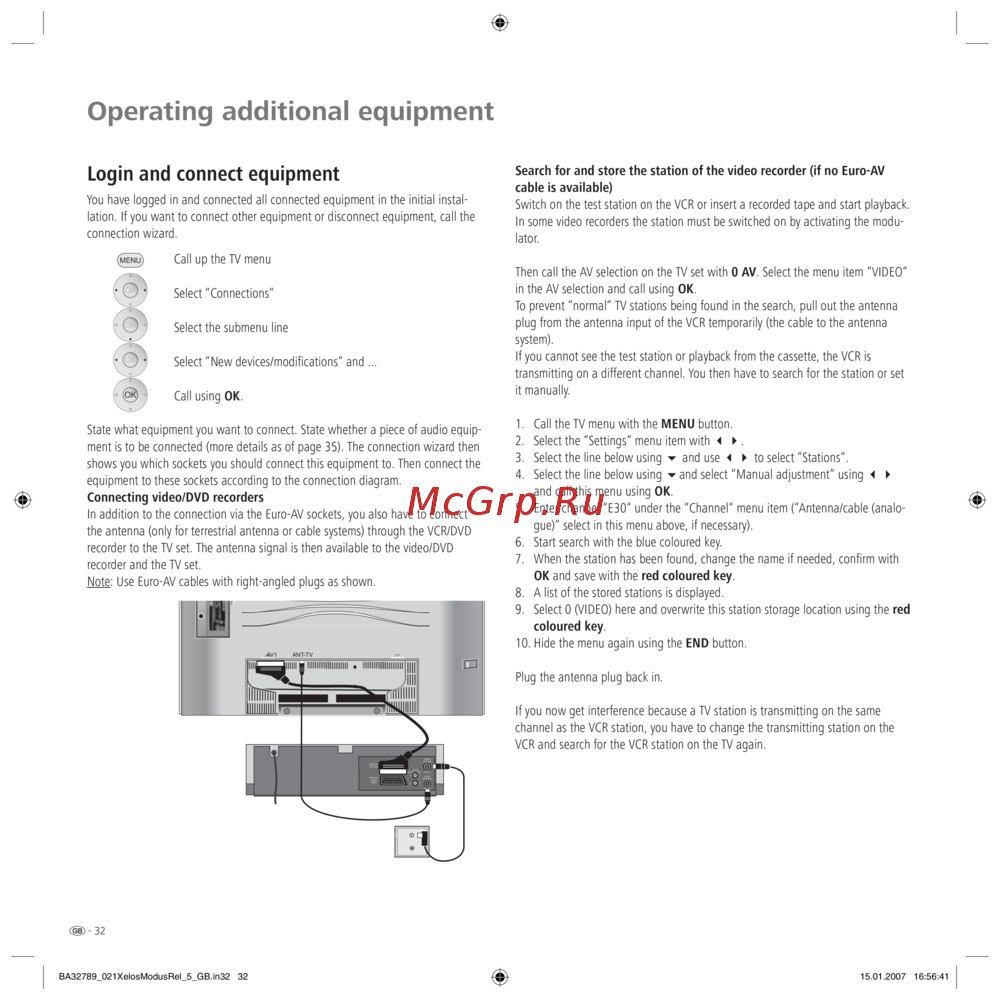

- 32
Operating additional equipment
Search for and store the station of the video recorder (if no Euro-AV
cable is available)
Switch on the test station on the VCR or insert a recorded tape and start playback.
In some video recorders the station must be switched on by activating the modu-
lator.
Then call the AV selection on the TV set with 0 AV. Select the menu item “VIDEO“
in the AV selection and call using OK.
To prevent “normal“ TV stations being found in the search, pull out the antenna
plug from the antenna input of the VCR temporarily (the cable to the antenna
system).
If you cannot see the test station or playback from the cassette, the VCR is
transmitting on a different channel. You then have to search for the station or set
it manually.
1. Call the TV menu with the MENU button.
2. Select the “Settings“ menu item with .
3. Select the line below using and use to select “Stations“.
4. Select the line below using and select “Manual adjustment“ using
and call this menu using OK.
5. Enter channel “E30“ under the “Channel“ menu item (“Antenna/cable (analo-
gue)“ select in this menu above, if necessary).
6. Start search with the blue coloured key.
7. When the station has been found, change the name if needed, confirm with
OK and save with the red coloured key.
8. A list of the stored stations is displayed.
9. Select 0 (VIDEO) here and overwrite this station storage location using the red
coloured key.
10. Hide the menu again using the END button.
Plug the antenna plug back in.
If you now get interference because a TV station is transmitting on the same
channel as the VCR station, you have to change the transmitting station on the
VCR and search for the VCR station on the TV again.
Login and connect equipment
You have logged in and connected all connected equipment in the initial instal-
lation. If you want to connect other equipment or disconnect equipment, call the
connection wizard.
Call up the TV menu
Select “Connections“
Select the submenu line
Select “New devices/modifications“ and ...
Call using OK.
State what equipment you want to connect. State whether a piece of audio equip-
ment is to be connected (more details as of page 35). The connection wizard then
shows you which sockets you should connect this equipment to. Then connect the
equipment to these sockets according to the connection diagram.
Connecting video/DVD recorders
In addition to the connection via the Euro-AV sockets, you also have to connect
the antenna (only for terrestrial antenna or cable systems) through the VCR/DVD
recorder to the TV set. The antenna signal is then available to the video/DVD
recorder and the TV set.
Note: Use Euro-AV cables with right-angled plugs as shown.
ENTREE
ANTENNE
EURO AV2
DECODER
EURO AV1
AUDIO/
VIDEO
SORTIE
ANTENNE
AERIAL
RF OUT
SORTIE
GL
D
R
OUT
AUDIO
AV1 ANT-TV
BA32789_021XelosModusRel_5_GB.in32 32BA32789_021XelosModusRel_5_GB.in32 32 15.01.2007 16:56:4115.01.2007 16:56:41
