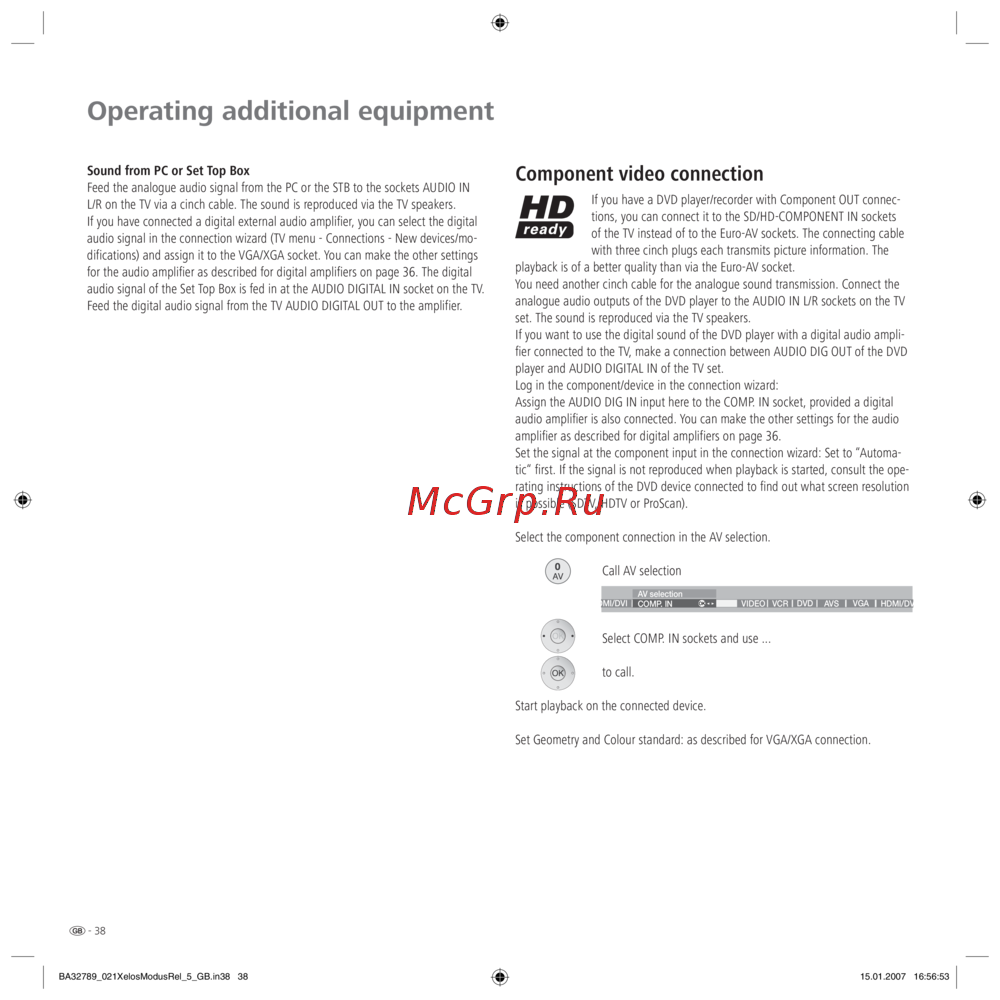

Operating additional equipment
Sound from PC or Set Top Box
Feed the analogue audio signal from the PC or the STB to the sockets AUDIO IN
L/R on the TV via a cinch cable. The sound is reproduced via the TV speakers.
If you have connected a digital external audio amplifier, you can select the digital
audio signal in the connection wizard (TV menu - Connections - New devices/mo-
difications) and assign it to the VGA/XGA socket. You can make the other settings
for the audio amplifier as described for digital amplifiers on page 36. The digital
audio signal of the Set Top Box is fed in at the AUDIO DIGITAL IN socket on the TV.
Feed the digital audio signal from the TV AUDIO DIGITAL OUT to the amplifier.
Component video connection
If you have a DVD player/recorder with Component OUT connec-
tions, you can connect it to the SD/HD-COMPONENT IN sockets
of the TV instead of to the Euro-AV sockets. The connecting cable
with three cinch plugs each transmits picture information. The
playback is of a better quality than via the Euro-AV socket.
You need another cinch cable for the analogue sound transmission. Connect the
analogue audio outputs of the DVD player to the AUDIO IN L/R sockets on the TV
set. The sound is reproduced via the TV speakers.
If you want to use the digital sound of the DVD player with a digital audio ampli-
fier connected to the TV, make a connection between AUDIO DIG OUT of the DVD
player and AUDIO DIGITAL IN of the TV set.
Log in the component/device in the connection wizard:
Assign the AUDIO DIG IN input here to the COMP. IN socket, provided a digital
audio amplifier is also connected. You can make the other settings for the audio
amplifier as described for digital amplifiers on page 36.
Set the signal at the component input in the connection wizard: Set to “Automa-
tic“ first. If the signal is not reproduced when playback is started, consult the ope-
rating instructions of the DVD device connected to find out what screen resolution
is possible (SDTV, HDTV or ProScan).
Select the component connection in the AV selection.
Call AV selection
Select COMP. IN sockets and use ...
to call.
Start playback on the connected device.
Set Geometry and Colour standard: as described for VGA/XGA connection.
VIDEO
COMP. IN
AVS
VGA
DVD
D
MI/DVI
HDMI/D
V
AV selection
VCR
OK
BA32789_021XelosModusRel_5_GB.in38 38BA32789_021XelosModusRel_5_GB.in38 38 15.01.2007 16:56:5315.01.2007 16:56:53
