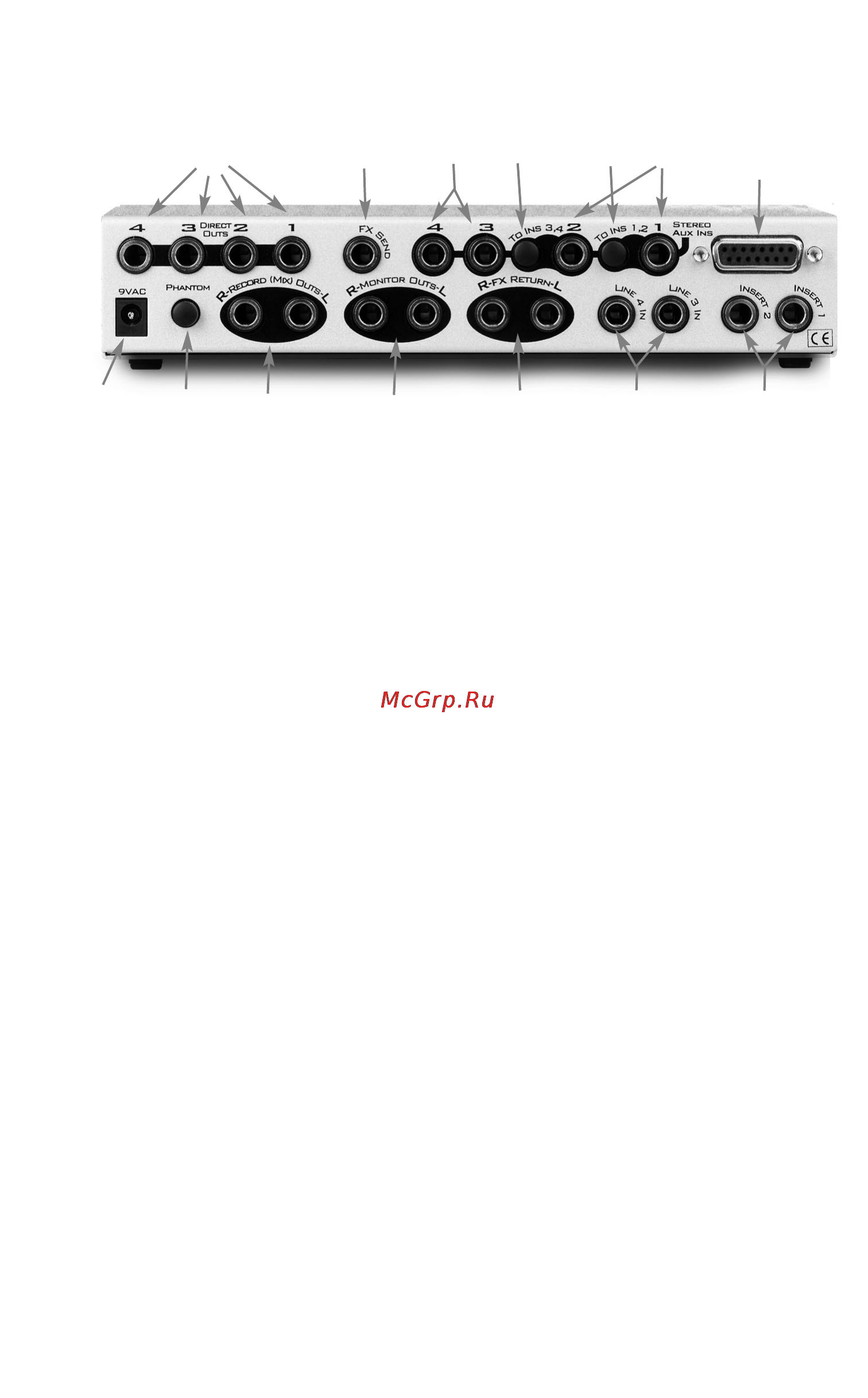

4.2 Rear Panel

1. 9v AC Power Jack: This jack accepts a 2.5mm plug from a 9vAC, 500 mA

power supply, included with the Omni. Use only the proper, AC power

supply on the Omni.

2. Direct Outs 1 – 4: These jacks are connected to the Delta H/W Outs 1

through 4, and bypass the Omni mixer. The 1/4” jacks accept TS plugs for

unbalanced operation, or TRS for balanced.

3. Phantom Switch: When pressed and locked to the in position, phantom

power is engaged and is sent to the XLR microphone inputs. Phantom

power is switched off when this button is in the out position.

4. L&R Record (Mix) Outs: The 1/4” jacks accept TS plugs for unbalanced

operation or TRS for balanced. The “Record (Mix) Outs” typically feed a

stereo mixdown deck. These outputs are pre-Monitor Control level, and are

therefore unaffected by changes in “Monitor Control” position.

5. FX Send: This mono send accepts a TS plug for unbalanced operation, or

TRS for balanced. The send gets its signal from the position of the “Channel

1-4 Effects Send” controls in relation to the signal present at the Delta H/W

Outs 1-4.

6. L&R Monitor Outs: The 1/4” jacks accept TS plugs for unbalanced operation

or TRS for balanced. These outputs typically feed a monitoring system. They

receive their signal from the stereo bus of the Omni mixer post-Monitor

Level control, and are therefore directly affected by the position of the

“Monitor Control.”

7. Stereo Aux Ins 1 – 4: These 1/4” jacks accept a TRS plug that is designed to

carry the L&R signals from a stereo source, such as a MIDI keyboard or

other stereo instrument. Typically, a stereo cable with a TRS plug to L&R

mono TS plugs, often called an “insert cable,” will work properly.

8. “To Ins 1, 2” Switch: This switch, when pressed and locked to the in position,

will send the stereo signal that is present at the Aux In 1 jack to the Delta

H/W In 1 & 2. The Aux In 1 signal is then simultaneously muted to the

Omni stereo buss.
