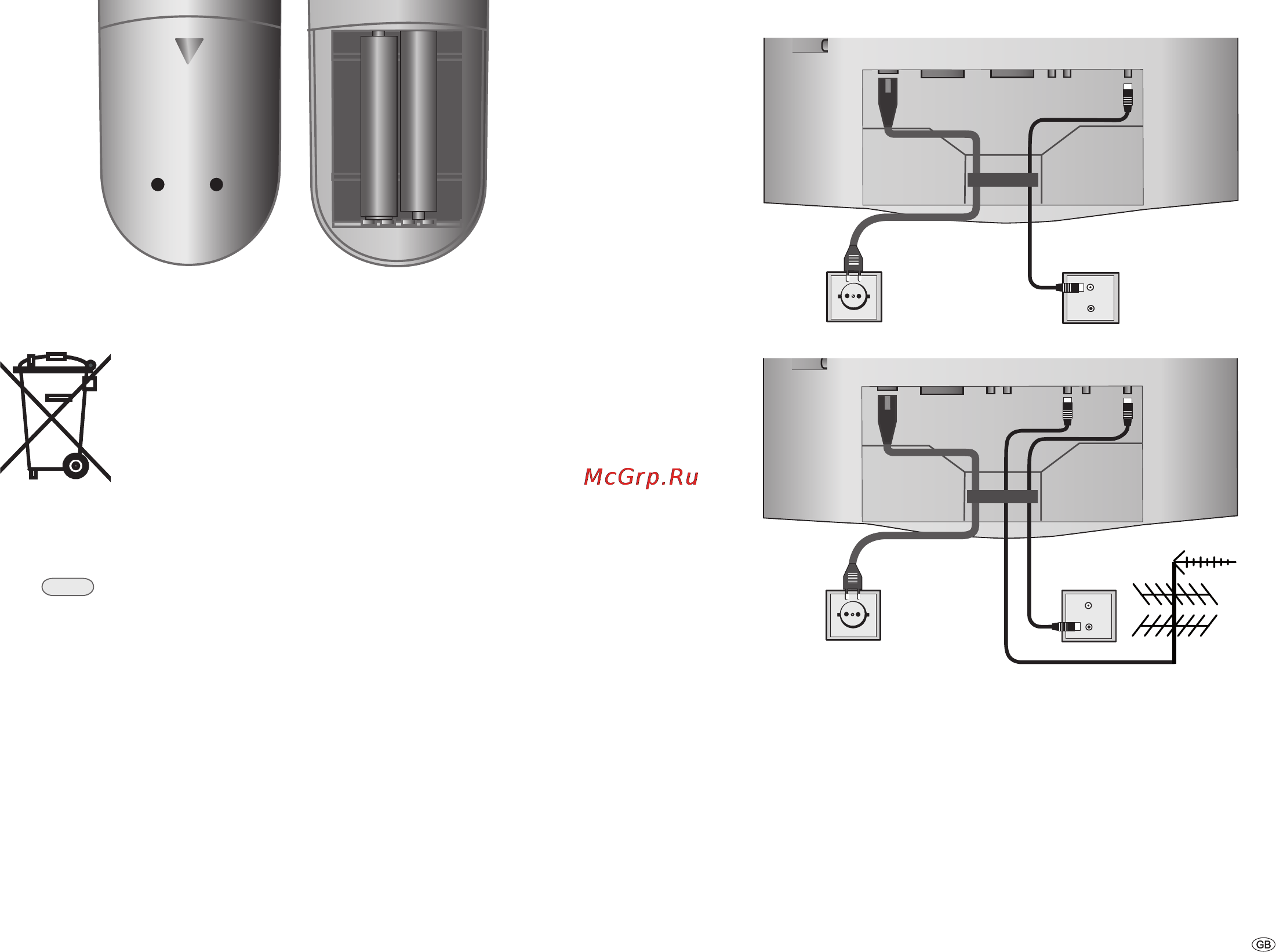

Loewe Xelos A 20 [9/28] Initial installation
![Loewe Xelos A 20 [9/28] Initial installation](/views2/1020463/page9/bg9.png)
9 -
Remote control
Batteries
To insert or change the batteries press on the arrow. Slide the battery compart-
ment cover downwards and remove it. Insert Alkali Mangan LR 03 (AAA) batter-
ies and ensure that the + and – ends are connected correctly.
Slide the cover upwards to shut.
Information for the disposal of batteries
The batteries provided contain no harmful materials such as
cadmium, lead or mercury.
Regulations concerning used batteries stipulate that batteries
may no longer be thrown out with the household rubbish.
Deposit any used batteries free of charge into the designated
collection containers set up at commercial businesses.
Set the remote control for operating the TV
Press the TV button.
TV
How to operate other Loewe equipment is described on page 23.
Connection
Power mains
Plug the small plug of the power cable into the mains socket on the
back of the TV, the large plug into a a 220-240V/50–60 Hertz power
outlet.
Initial installation
Antenna
Connect the cable system on the back of the set to the ANT VHF/UHF socket.
If separate antenne exist for the radio and TV reception, the two antenne must
be connected by an antenna switch. Appropriate antenna switches are available
from your dealer.
In DVB-T models, connect the DVB-T antenna to the DVB-T socket and connect
a FM (VHF) antenna to the ANT VHF/UHF socket if necessary (please remove
any plugged antenna bridge, see page 6).
Lay the cables in the cable holder in the rear middle of the TV set.
If the reception conditions are good, then a room antenna may be used for
DVB-T. Passive and active room antennas are available on the market. The pow-
er is supplied for an active antenna via the antenna connection. For automatic
programming or in “TV Menu – Connections – Antenna DVB-T,“ the distribution
voltage (5 volts) is to be set correspondingly.
It may be practical to use a nondirectional antenna. If the location is outside the
normal transmitting range, then a unidirectional antenna may also be used to
improve the reception quality.
You can fi nd out more on the digital stations that can be received in your area
at your specialist dealer.
+
+
TV
R
Xelos A 20
Mimo L 20
ANT
VHF/UHF
220 - 240V~
220 - 240 V ~
TV
R
220 - 240 V ~
DVB-T
ANT
VHF/UHF
220 - 240V~
Xelos A 20 DVB-T
Mimo L 20 DVB-T
