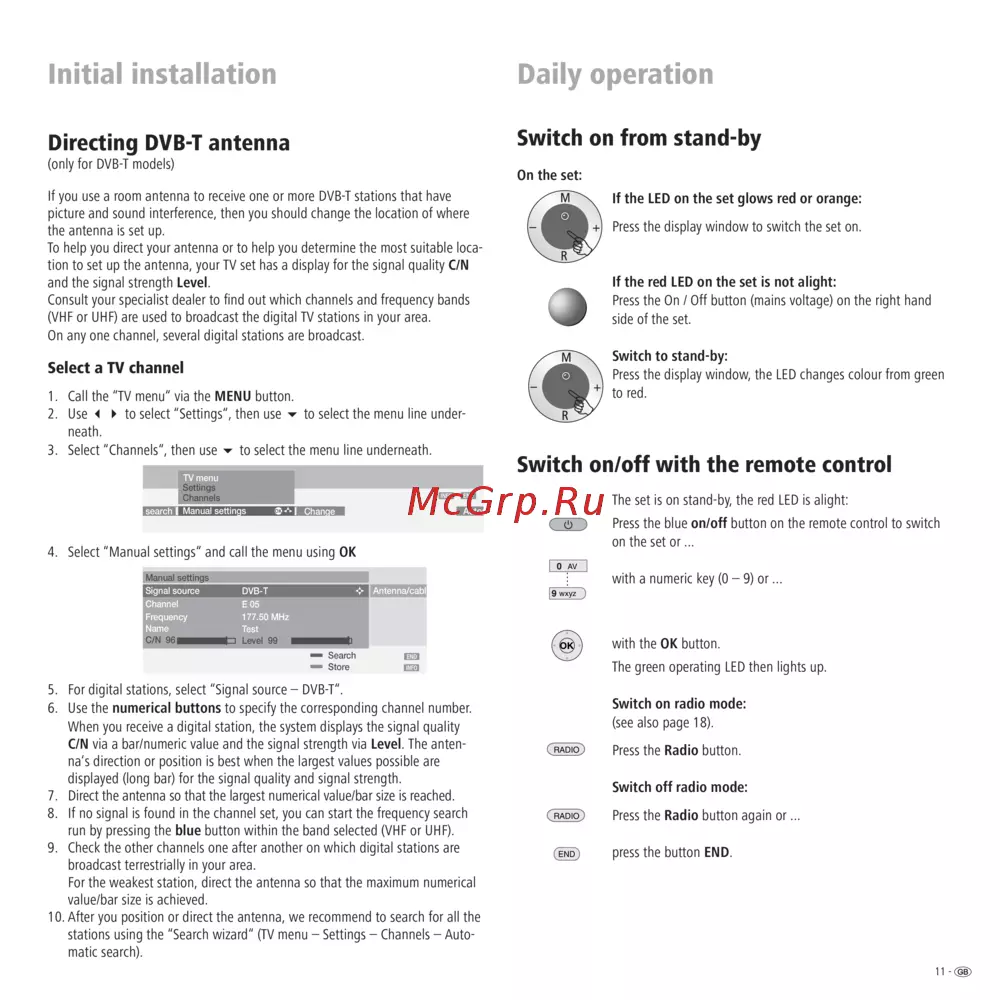

![Loewe Xelos A 20 DVB-T [11/28] Switch on off with the remote control](/views2/1020463/page11/bgb.png)
11 -
Initial installation Daily operation
Switch on from stand-by
On the set:
If the LED on the set glows red or orange:
Press the display window to switch the set on.
If the red LED on the set is not alight:
Press the On / Off button (mains voltage) on the right hand
side of the set.
Switch to stand-by:
Press the display window, the LED changes colour from green
to red.
Switch on/off with the remote control
The set is on stand-by, the red LED is alight:
Press the blue on/off button on the remote control to switch
on the set or ...
with a numeric key (0 – 9) or ...
AV
wxyz
with the OK button.
The green operating LED then lights up.
OK
Switch on radio mode:
(see also page 18).
Press the Radio button.
RADIO
Switch off radio mode:
Press the Radio button again or ...
RADIO
press the button END.
END
(
(
Directing DVB-T antenna
(only for DVB-T models)
If you use a room antenna to receive one or more DVB-T stations that have
picture and sound interference, then you should change the location of where
the antenna is set up.
To help you direct your antenna or to help you determine the most suitable loca-
tion to set up the antenna, your TV set has a display for the signal quality C/N
and the signal strength Level.
Consult your specialist dealer to fi nd out which channels and frequency bands
(VHF or UHF) are used to broadcast the digital TV stations in your area.
On any one channel, several digital stations are broadcast.
Select a TV channel
1. Call the “TV menu“ via the MENU button.
2. Use to select “Settings“, then use to select the menu line under-
neath.
3. Select “Channels“, then use to select the menu line underneath.
4. Select “Manual settings“ and call the menu using OK
5. For digital stations, select “Signal source – DVB-T“.
6. Use the numerical buttons to specify the corresponding channel number.
When you receive a digital station, the system displays the signal quality
C/N via a bar/numeric value and the signal strength via Level. The anten-
na‘s direction or position is best when the largest values possible are
displayed (long bar) for the signal quality and signal strength.
7. Direct the antenna so that the largest numerical value/bar size is reached.
8. If no signal is found in the channel set, you can start the frequency search
run by pressing the blue button within the band selected (VHF or UHF).
9. Check the other channels one after another on which digital stations are
broadcast terrestrially in your area.
For the weakest station, direct the antenna so that the maximum numerical
value/bar size is achieved.
10. After you position or direct the antenna, we recommend to search for all the
stations using the “Search wizard“ (TV menu – Settings – Channels – Auto-
matic search).
INFO
END
Auto
m
Change
Manual settings
TV menu
Settings
Channels
c
search
OK
INFO
END
Manual settings
Search
Store
Signal source
Channel
Frequency
Name
C/N 96
DVB-T
E 05
177.50 MHz
Test
Level 99
Antenna/cabl
