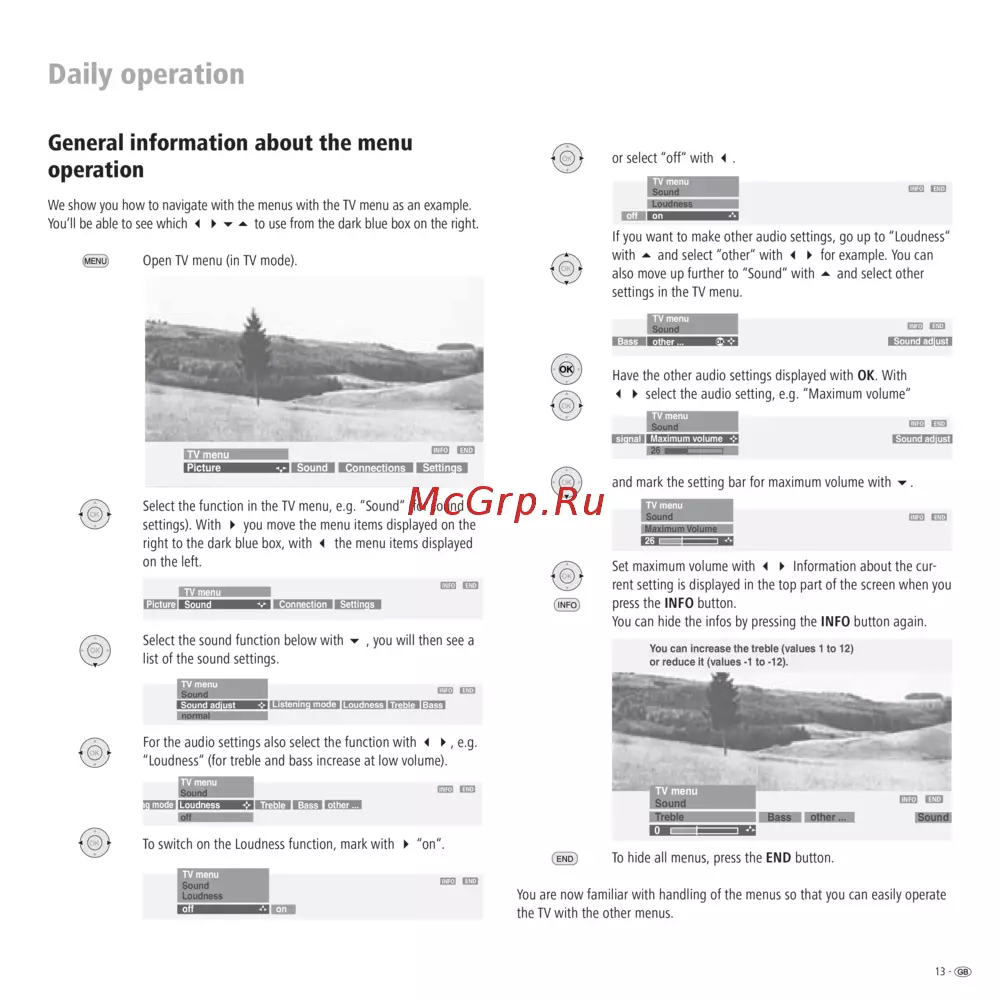

Loewe Xelos A 20 DVB-T [13/28] General information about the menu operation
![Loewe Xelos A 20 DVB-T [13/28] General information about the menu operation](/views2/1020463/page13/bgd.png)
13 -
Daily operation
General information about the menu
operation
We show you how to navigate with the menus with the TV menu as an example.
You‘ll be able to see which to use from the dark blue box on the right.
MENU
Open TV menu (in TV mode).
OK
Select the function in the TV menu, e.g. “Sound“ (for sound
settings). With you move the menu items displayed on the
right to the dark blue box, with the menu items displayed
on the left.
INFO
END
TV menu
Settings
Connection
Sound
Select the sound function below with , you will then see a
list of the sound settings.
OK
INFO
END
normal
Bass
Treble
Loudness
Sound adjust
TV menu
Listening mode
Sound
For the audio settings also select the function with , e.g.
“Loudness“ (for treble and bass increase at low volume).
OK
INFO
END
off
other ...
Bass
Treble
TV menu
Sound
n
g mode
Loudness
To switch on the Loudness function, mark with “on“.
OK
INFO
END
off on
Loudness
TV menu
Sound
or select “off“ with .
OK
INFO
END
onoff
Loudness
TV menu
Sound
If you want to make other audio settings, go up to “Loudness“
with and select “other“ with for example. You can
also move up further to “Sound“ with and select other
settings in the TV menu.
OK
INFO
END
other ...
Bass
Sound adjust
TV menu
Sound
OK
Have the other audio settings displayed with OK. With
select the audio setting, e.g. “Maximum volume“
OK
OK
INFO
END
Sound adjust
signal
Maximum volume
TV menu
26
Sound
and mark the setting bar for maximum volume with .
OK
Maximum Volume
26
TV menu
Sound
INFO
END
Set maximum volume with Information about the cur-
rent setting is displayed in the top part of the screen when you
press the INFO button.
You can hide the infos by pressing the INFO button again.
OK
INFO
INFO
END
Treble
TV menu
0
Sound
Bass
other ...
Sound
You can increase the treble (values 1 to 12)
or reduce it (values -1 to -12).
To hide all menus, press the END button.
END
You are now familiar with handling of the menus so that you can easily operate
the TV with the other menus.
INFO
END
Settings
Connections
Sound
TV menu
