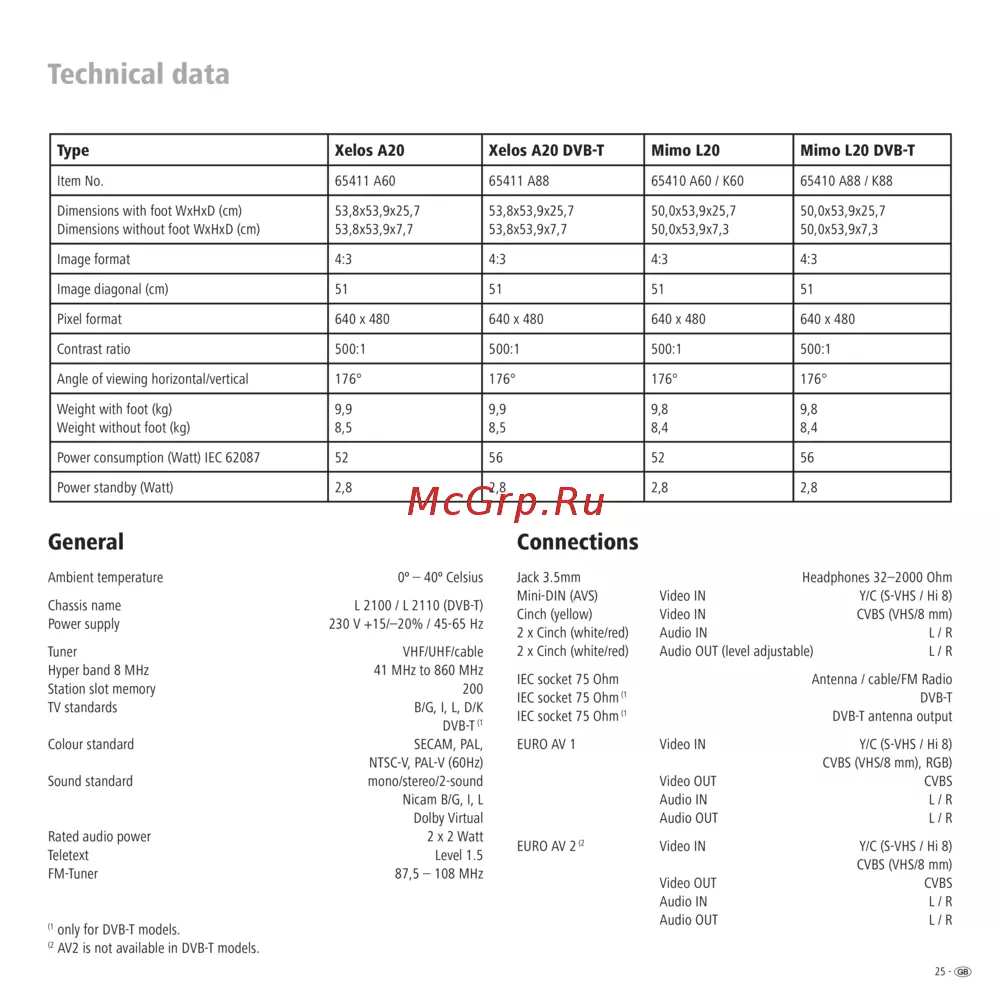

Technical data
General
Ambient temperature 0º – 40º Celsius
Chassis name L 2100 / L 2110 (DVB-T)
Power supply 230 V +15/–20% / 45-65 Hz
Tuner VHF/UHF/cable
Hyper band 8 MHz 41 MHz to 860 MHz
Station slot memory 200
TV standards B/G, I, L, D/K
DVB-T
(1
Colour standard SECAM, PAL,
NTSC-V, PAL-V (60Hz)
Sound standard mono/stereo/2-sound
Nicam B/G, I, L
Dolby Virtual
Rated audio power 2 x 2 Watt
Teletext Level 1.5
FM-Tuner 87,5 – 108 MHz
(1
only for DVB-T models.
(2
AV2 is not available in DVB-T models.
Connections
Jack 3.5mm Headphones 32–2000 Ohm
Mini-DIN (AVS) Video IN Y/C (S-VHS / Hi 8)
Cinch (yellow) Video IN CVBS (VHS/8 mm)
2 x Cinch (white/red) Audio IN L / R
2 x Cinch (white/red) Audio OUT (level adjustable) L / R
IEC socket 75 Ohm Antenna / cable/FM Radio
IEC socket 75 Ohm
(1
DVB-T
IEC socket 75 Ohm
(1
DVB-T antenna output
EURO AV 1 Video IN Y/C (S-VHS / Hi 8)
CVBS (VHS/8 mm), RGB)
Video OUT CVBS
Audio IN L / R
Audio OUT L / R
EURO AV 2
(2
Video IN Y/C (S-VHS / Hi 8)
CVBS (VHS/8 mm)
Video OUT CVBS
Audio IN L / R
Audio OUT L / R
Type Xelos A20 Xelos A20 DVB-T Mimo L20 Mimo L20 DVB-T
Item No. 65411 A60 65411 A88 65410 A60 / K60 65410 A88 / K88
Dimensions with foot WxHxD (cm)
Dimensions without foot WxHxD (cm)
53,8x53,9x25,7
53,8x53,9x7,7
53,8x53,9x25,7
53,8x53,9x7,7
50,0x53,9x25,7
50,0x53,9x7,3
50,0x53,9x25,7
50,0x53,9x7,3
Image format 4:3 4:3 4:3 4:3
Image diagonal (cm) 51 51 51 51
Pixel format 640 x 480 640 x 480 640 x 480 640 x 480
Contrast ratio 500:1 500:1 500:1 500:1
Angle of viewing horizontal/vertical 176° 176° 176° 176°
Weight with foot (kg)
Weight without foot (kg)
9,9
8,5
9,9
8,5
9,8
8,4
9,8
8,4
Power consumption (Watt) IEC 62087 52 56 52 56
Power standby (Watt) 2,8 2,8 2,8 2,8
