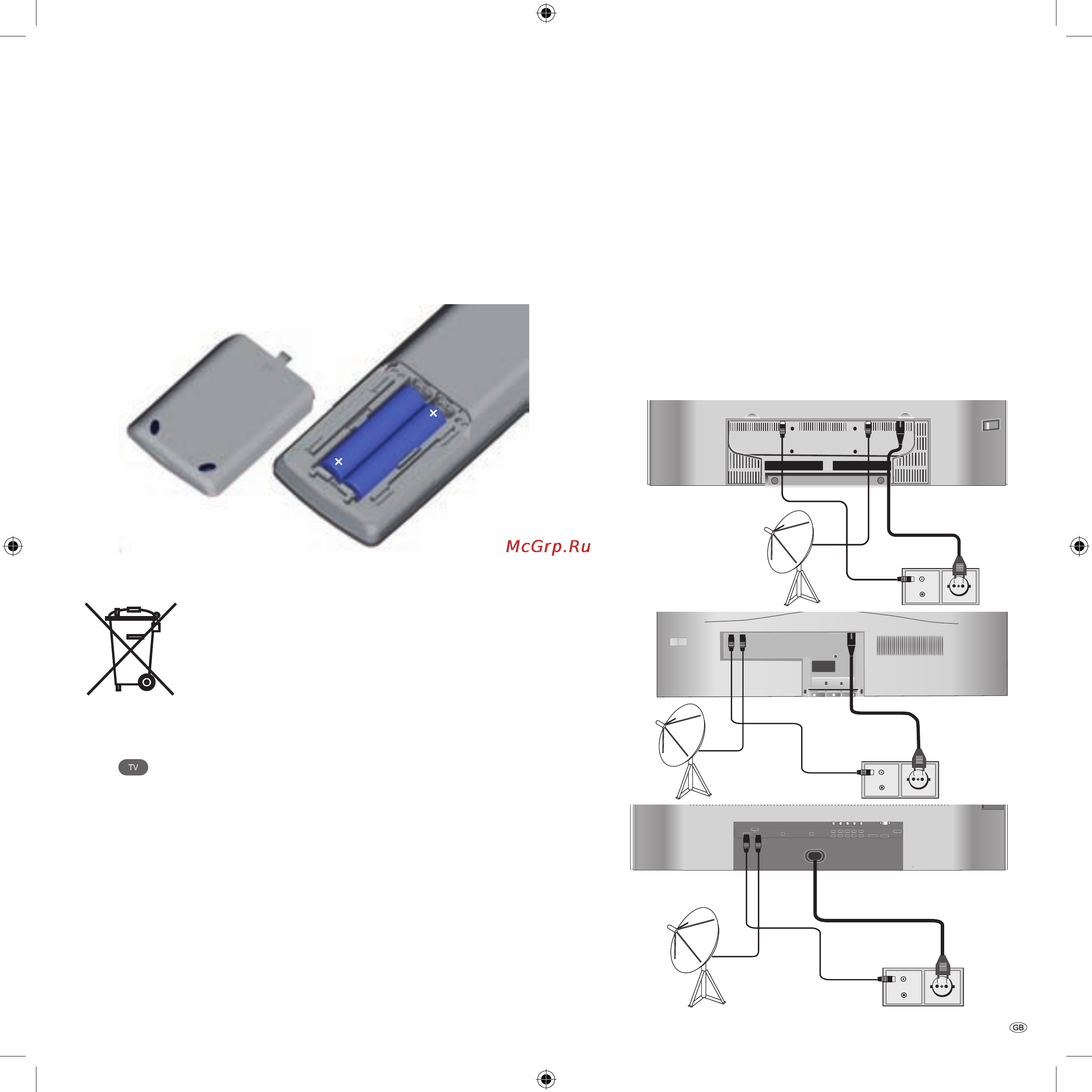

First installation
Remote control
Batteries
To insert or change the batteries, press on the arrow. Slide the battery compart-
ment cover downwards and remove it. Insert LR 03 alkaline-manganese batteries
(AAA) and ensure that the + and - ends are positioned correctly.
Then push the cover back on from the bottom.
Note on disposing batteries:
The batteries provided contain no harmful materials such as
cadmium, lead or mercury.
Regulations concerning used batteries stipulate that batteries
may no longer be thrown out with the household rubbish.
Deposit any used batteries free of charge into the designated
collection containers set up at commercial businesses.
Setting up the remote control for operating the TV
Press the TV button
How to operate other Loewe equipment is described on page 39.
Connection
Power mains
Remove the cover for the connections.
Connect the TV set to a 220-240V/50- 60 hertz power outlet. For the LCD sets,
plug the small plug of the mains cable into the mains socket on the rear of the
TV set; plug the large mains plug into a mains socket. For Plasma sets, the mains
cable is permanently connected to the set.
Antennas
Plug the antenna plug of your antenna/cable system or the room antenna for DVB-
T into the ANT-TV socket (Tuner 1).
ANT-TV
ANT-SAT
220-240V~
50/60Hz
TV
R
Xelos A32/37
Modus L32/37
89352.001
SERVICE
VGA/XGA
HDTV IN
AUDIO OUT
AUDIO DIGI TAL
IN
LR
OUT
AUDIO IN
L
SD/HD-COMPONENT IN
C/P
rr YC/Pbb
R
C
AV 2
RGB / YUV
( )
AV 1
ANT-TV
ANT-SAT
13/18 V /350 mA
5 V /80 mA
HDMI DVI
( )
Xelos A42
Modus L42
ANT-TV ANT-SAT
220-240V~
50/60Hz
Xelos A 26
AAA LR03
AAA LR03
