- 12
First installation
If the reception conditions are good, then a room antenna may be used for DVB-T.
Passive and active room antennas are available on the market. The power is sup-
plied for an active antenna via the antenna connection. For automatic programming
or in “TV Menu – Connections – Antenna DVB – Antenna DVB-T,“ the distribution
voltage (5 volts) is to be set correspondingly.
It may be practical to use a nondirectional antenna. If the location is outside the
normal transmitting range, then a unidirectional antenna may also be used to
improve the reception quality.
You can find out more on the digital stations that can be received in your area at
your specialist dealer.
If a set was retrofitted with a PIP tuner or if this is already integrated in a set with a
digital recorder, then plug the antenna into the antenna input of the PIP tuner and
connect the PIP tuner output with the ANT-TV socket (Tuner 1). See illustrations on
page 6/7.
Set-specific equipment and retrofitting options for PIP and satellite tuners, see
pages 44 and 45.
If a Digital Satellite Tuner 1 has been retrofitted, connect your satellite antenna
system to the ANT-SAT socket.
If a Digital Satellite Tuner 2 has been retrofitted, connect one antenna cable each,
for example from the antenna switch or from the twin LNC, to both SAT sockets.
When laying the cable, use the cable clips affixed beneath the TV set.
Replace the connection cover on the TV set.
Use of the binders for Xelos A42 and
Modus L 42
The enclosed binders are intended
for holding the connection cables
together and fastening them to the
rear panel.
The binders can be opened again by
pressing on the binder latch.

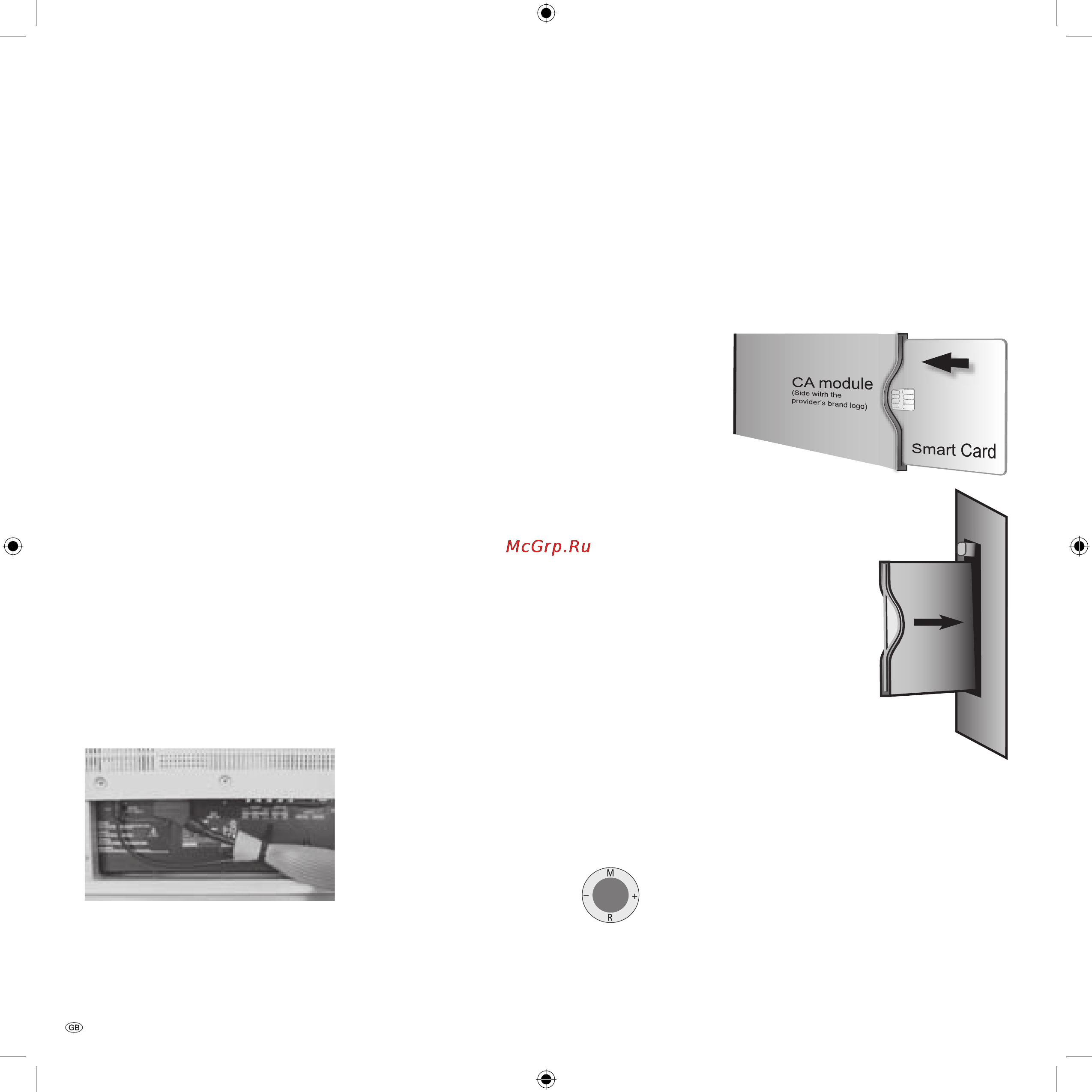

Using the conditional access module
In order to be able to receive encrypted digital stations, a Conditional Access
module (CA-module
(1
) and a Smart Card
(1
, if necessary, must be inserted into the
corresponding slot of your TV set. You can find the Common Interface slot (CI-Slot)
on the back of your TV set, see the illustration on pages 5 –7.
1. Make sure the TV set is switched off with the mains switch on the set.
2. First push the smart card into the CA module as far as it will go. Insert it so
that the side with the
golden contact chip faces
the side of the module
printed with the supplier‘s
brand logo. Printed arrows
indicate how to insert the
card. Also follow the instal-
lation instructions included
with the smart card.
3. Slide the CA module
(1
carefully into the slot with the
contact side facing the front. When you are standing
in front of the TV set, the logo on the CA module
must face the rear.
Make sure the module is not twisted in the process.
Do not use force.
When the module locks, the eject button is pressed
outwards.
(1
The CA module and the smart card are not included
in the scope of delivery for this set; you can usually
obtain them at your specialist dealer.
Switching on
Press the mains switch. The indicator lamp on the set now turns
red (standby mode).
Switch on the set using the switch integrated in the indicator.
The indicator on the TV set lights up and turns green (indicator
lamp).
Contact side
Eject button
CA module
CI-Slot
BA32789_021XelosModusRel_5_GB.in12 12BA32789_021XelosModusRel_5_GB.in12 12 15.01.2007 16:54:0315.01.2007 16:54:03
