3. NETGEAR genie Basic Settings

Your Internet connection and network

This chapter explains the features available from the NETGEAR genie Basic Home screen,

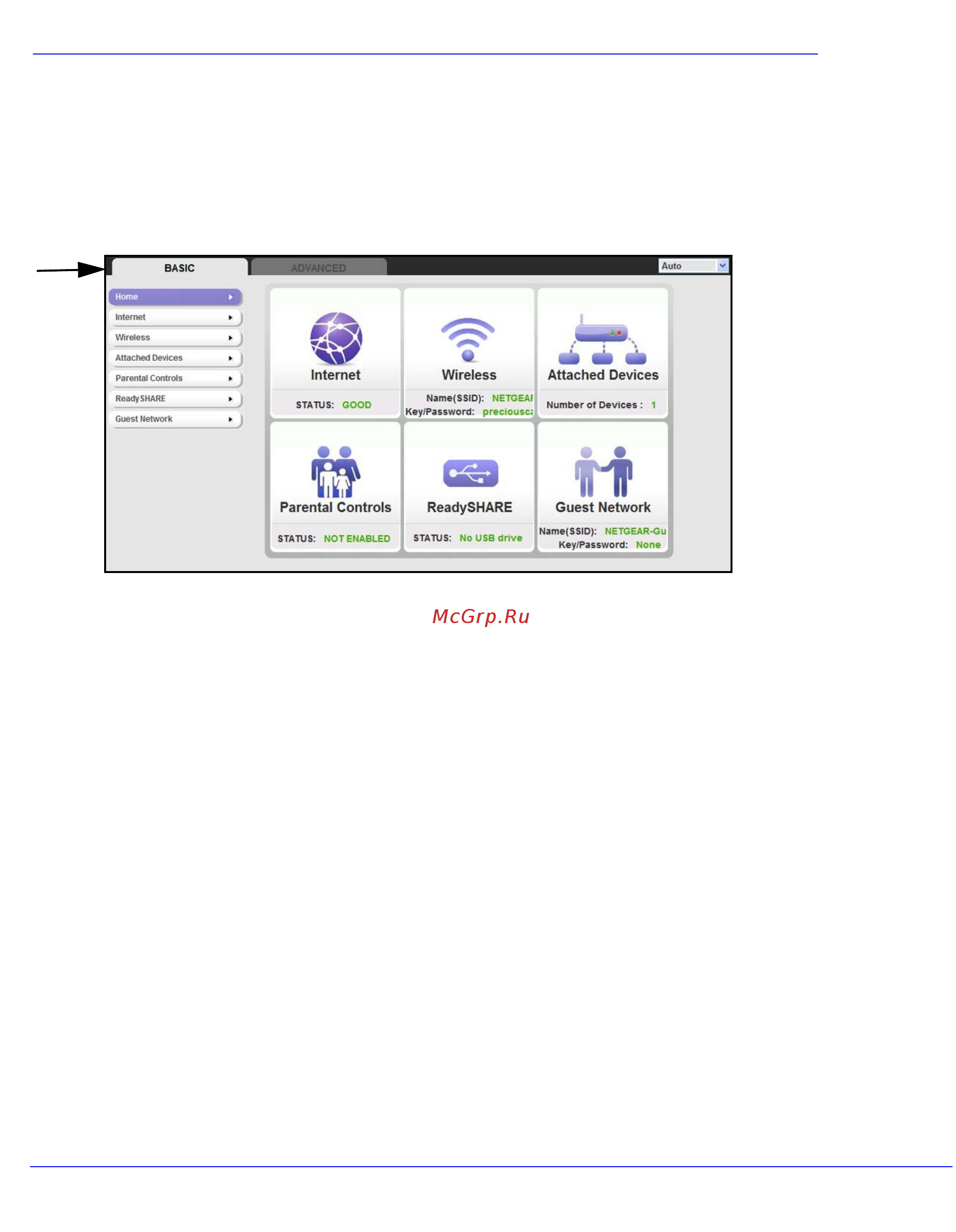

shown in the following figure:

This chapter contains the following sections:

• Internet Setup

• Attached Devices

• Parental Controls

• ReadySHARE USB Storage

• Basic Wireless Settings

• Guest Networks
