NETGEAR genie Advanced Home
31
N900 Wireless Dual Band Gigabit Router WNDR4500

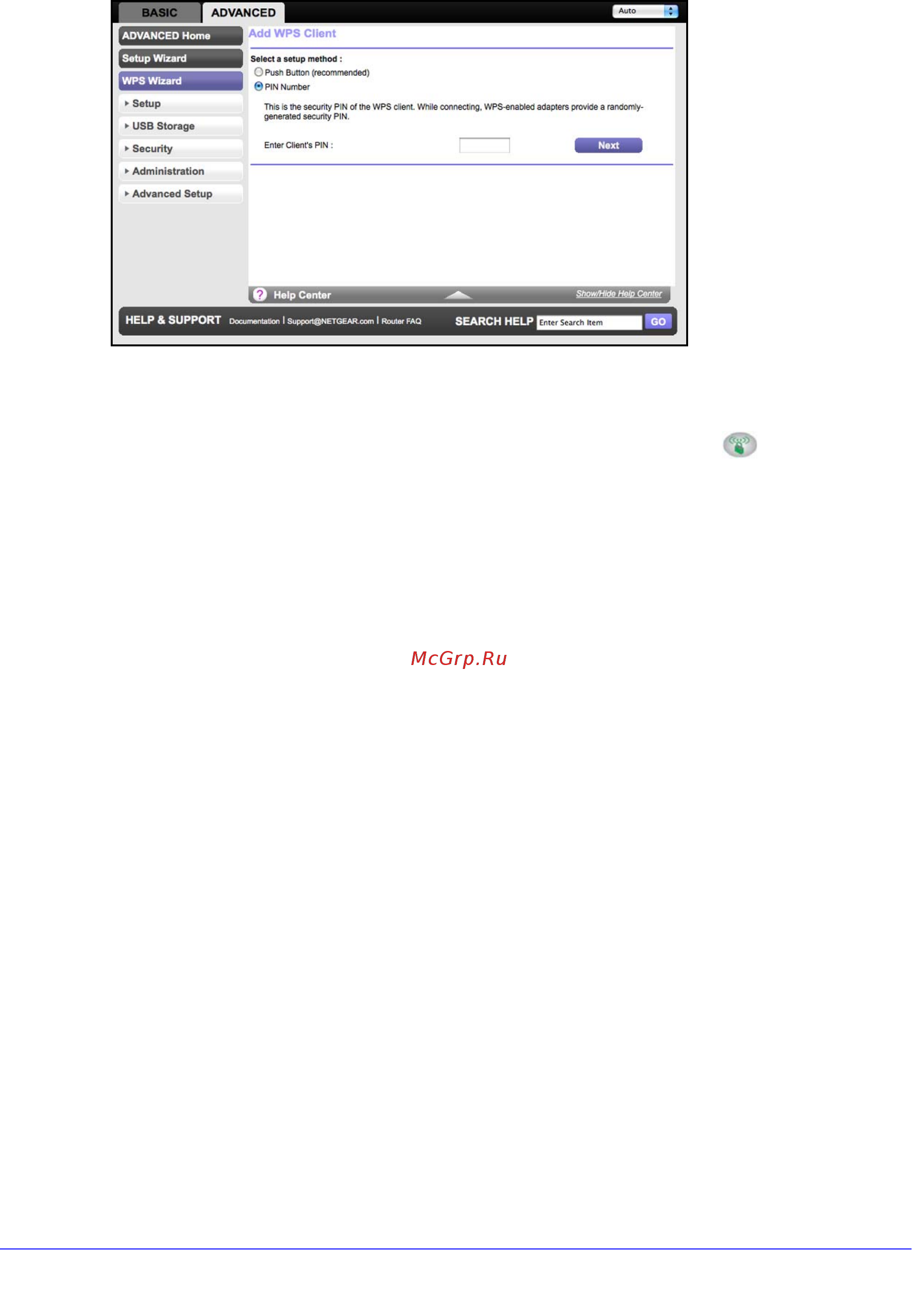

Within 2 minutes, go to the client device and use its WPS software to join the network
without entering a password.
The router attempts to add the WPS-capable device. The WPS LED
on the front of
the router blinks green. When the router estab
lishes a WPS connection, the LED is solid
green, and the router WPS screen displays a confirmation message.
4. Repe
at Step 2 and Step 3 to add another WPS client to your network.
Setup Menu
Select Advanced > Setup to display the Setup menu. The following selections are available:
• Internet Setup. This is a short
cut to the same Internet Setup screen that you can access
from the dashboard on the Basic Home screen. See Internet Setup on page 19
.
• Wireless Setup. This is a shortcut to the same Wireless Settings screen that you can
a
ccess from the dashboard on the Basic Home screen. See Basic Wireless Settings on
page 23.
• Guest Network. T
his is a shortcut to the same Guest Network screen that you can
access from the dashboard on the Basic Home screen. See Guest Networks on page 26.
• WAN Setup. Intern
et (WAN) setup. See WAN Setup on page 32.
• LAN Setup. Local are
a network (LAN) setup. See LAN Setup on page 35.
• QoS Setup.Quality of Service (QoS) setup
. See Quality of Service (QoS) Setup on
page 38.
