Hardware Setup

N600 Wireless Dual Band Router WNDR3400v2

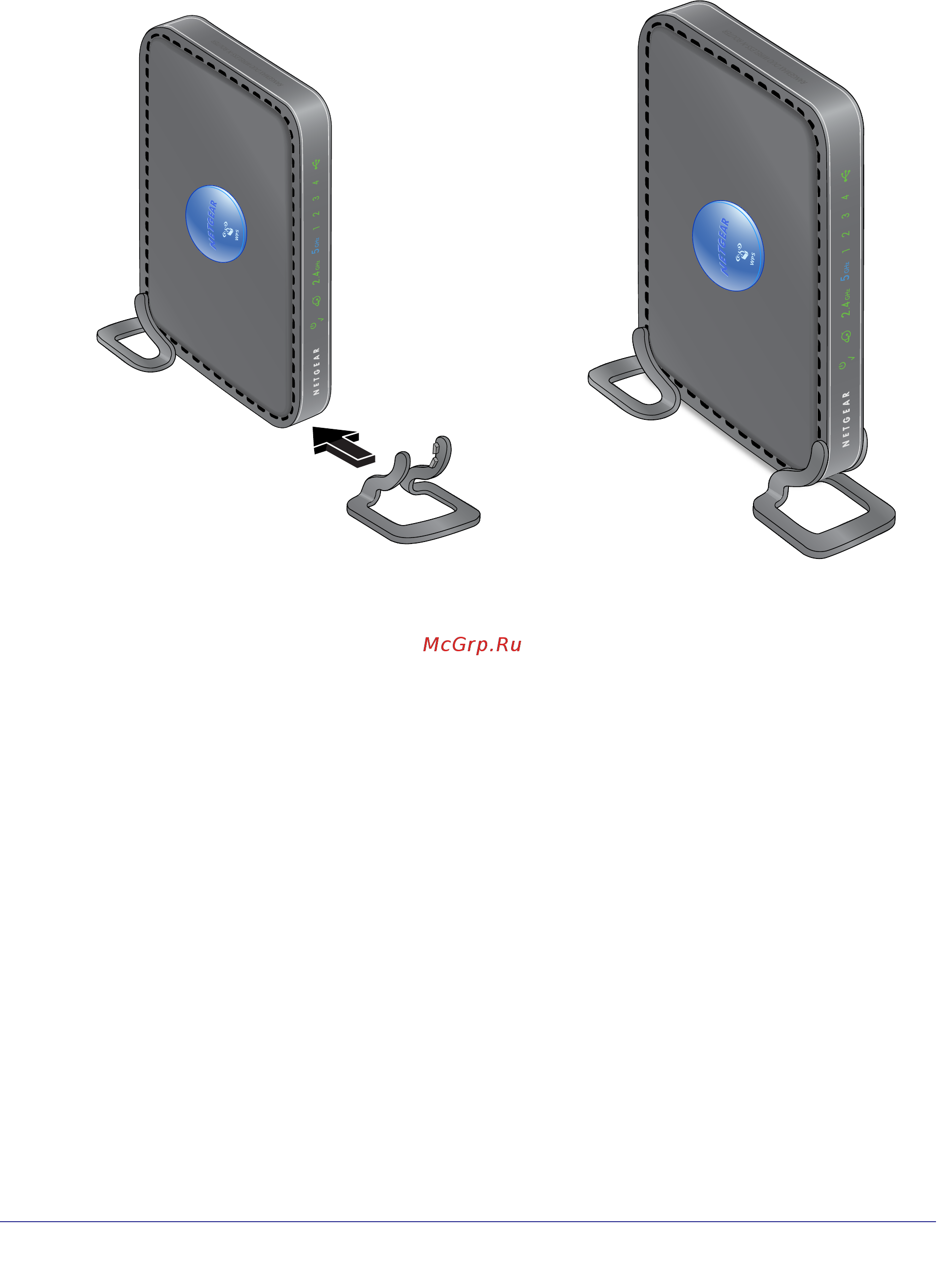

2. Set up your N600 Wireless Dual Band Router by inserting the tabs of the stand (supplied

with your router) into the slots on the bottom of your router as shown.

3. Place your router in a suitable area for installation (near an AC power outlet and accessible

to the Ethernet cables for your wired computers).
