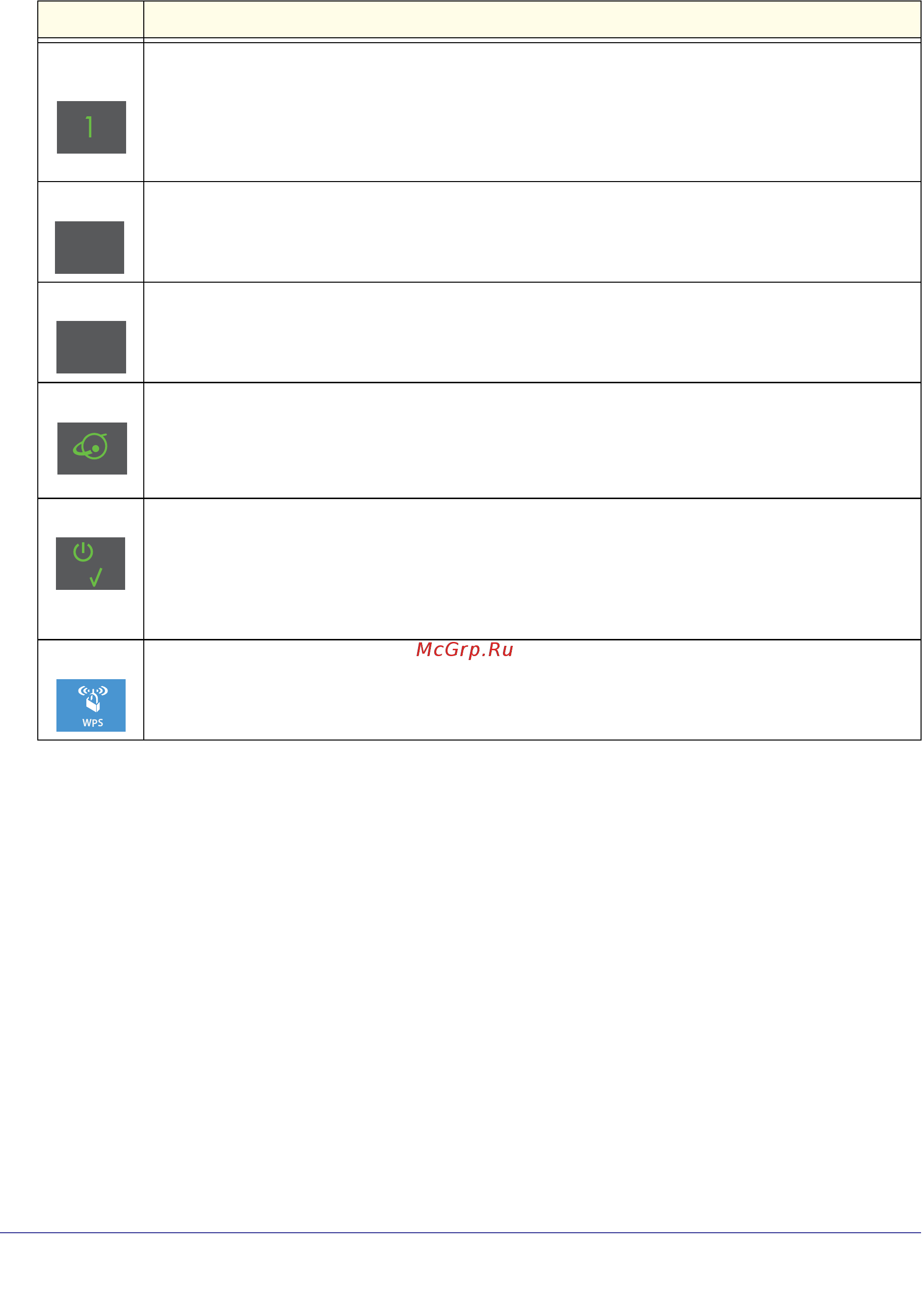

Hardware Setup
12
N600 Wireless Dual Band Router WNDR3400v2
LAN ports
1–4
• Solid green. The LAN port has detected a 1,000 Mpbs link with an attached device.
• Blinking green. Data is being sent at 1,000 Mbps.
• Solid amber. The LAN port has detected a 10 Mbps link with an attached device.
• Blinking amber. Data is being sent at 100 Mbps or 10 Mbps.
• Off. No link is detected on this port.
5 GHz
5
GHz
• Solid blue. The wireless radio is operating.
• Blinking blue. Data is being sent or received over the wireless network.
• Off. The wireless radio is off.
2.4 GHz
2.4
GHz
• Solid blue. The wireless radio is operating.
• Blinking blue. Data is being sent or received over the wireless network.
• Off. The wireless radio is off.
Internet
• Solid amber. The IP address has not been acquired.
• Solid green. An IP address has been received; ready to transmit data.
• Blinking green. Data is being sent to or received from the Internet.
• Off. No Ethernet cable is connected between the router and the modem.
Power/Test
• Solid amber. The unit is starting up after being powered on.
• Solid green. The power is on and the router is ready.
• Blinking amber. A firmware update is in progress.
• Blinking green. The firmware is corrupt.
• Off. Power is not supplied to the router.
WPS
• Solid green. Indicates that wireless security is enabled.
• Blinking green. The router is using WPS to add a wireless device to the network.
• Off. No WPS connection exists.
Table 1. Front panel LED descriptions (continued)
LED Description
