Nec M350X [11/136] Introduction
![Nec M350X [11/136] Introduction](/views2/1205533/page11/bgb.png)
1
Projector
Soft case
(24BS8121)
1. Introduction

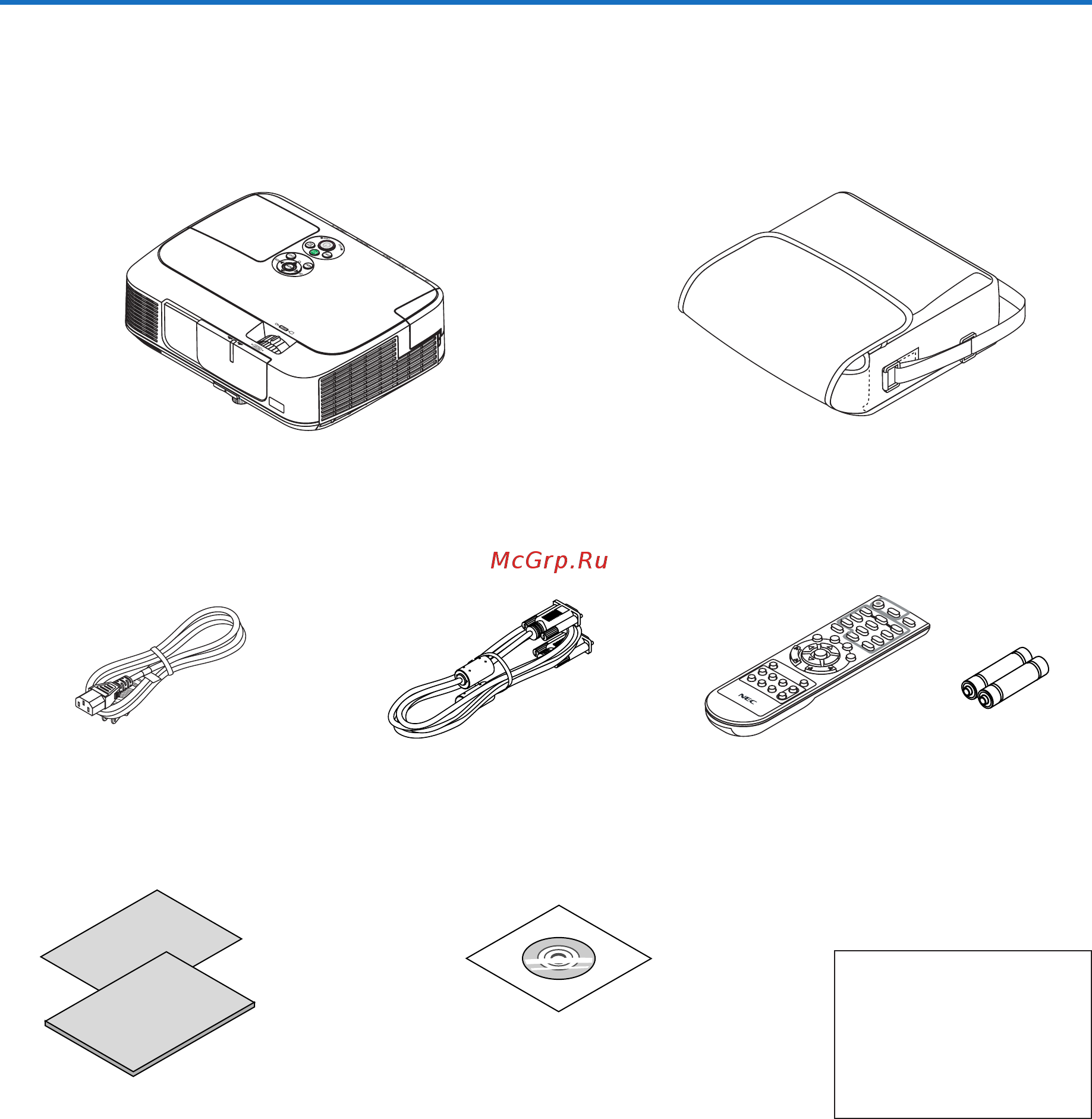

1 What’s in the Box?
Makesureyourboxcontainseverythinglisted.Ifanypiecesaremissing,contactyourdealer.
Pleasesavetheoriginalboxandpackingmaterialsifyoueverneedtoshipyourprojector.
Power cord
(US: 7N080236)
(EU: 7N080022)
Computer cable (VGA)
(7N520073/7N520052)
NEC Projector CD-ROM
User’s manual (PDF) and the utility
software
(7N951512)
For North America only
Registrationcard
Limitedwarranty
For customers in Europe:
YouwillndourcurrentvalidGuar-
anteePolicyonourWebSite:
www.nec-display-solutions.com
• ImportantInfomation(ForNorthAmerica:
7N8N0981) (For Other countries than North
America: 7N8N0981 and 7N8N0992)
• QuickSetupGuide(7N8N1001)/(7N8N1011)
Remote control
(7N900921)
Batteries (AAA × 2)
Unlessotherwisedescribedintheuser’smanual,thedrawingsfortheprojectorcabinetshowexamplesoftheM350X.
