Nec M350X [43/136] Convenient features
![Nec M350X [43/136] Convenient features](/views2/1205533/page43/bg2b.png)
33
3. Convenient Features
3 Click“Next”.

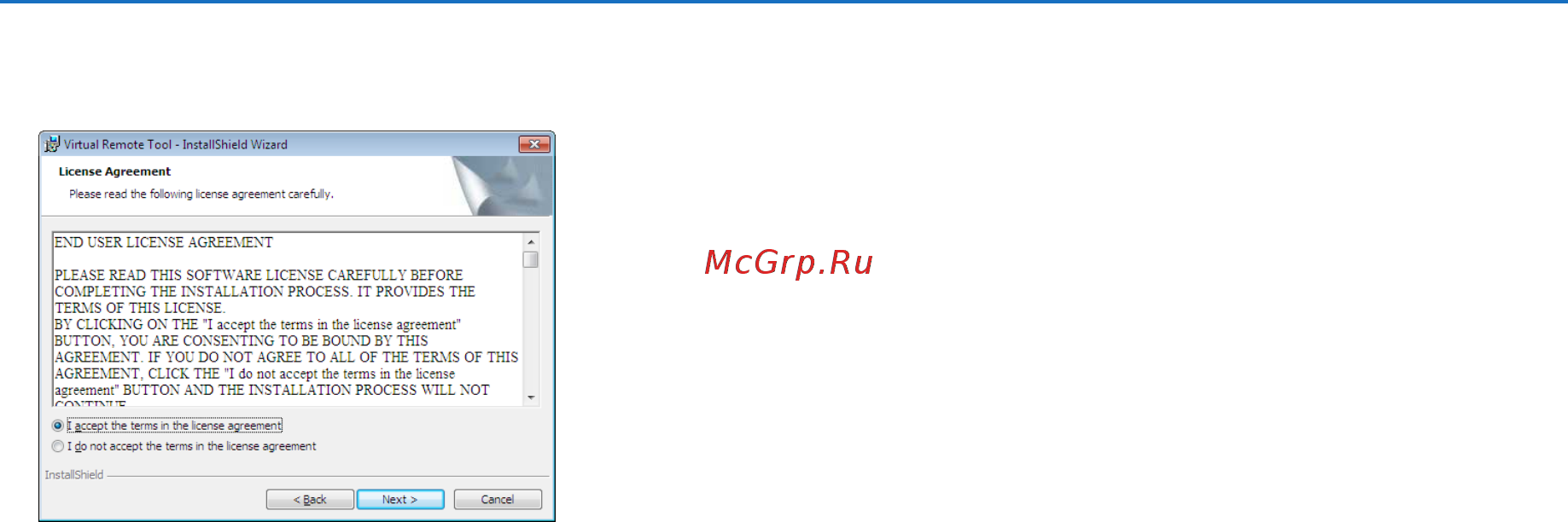

“END USER LICENSE AGREEMENT” screen will be displayed.
Read “END USER LICENSE AGREEMENT” carefully.
4 Ifyouagree,click“Iacceptthetermsinthelicenseagreement”andthenclick“Next”.
• Followtheinstructionsontheinstallerscreenstocompletetheinstallation.
• Whentheinstallationiscomplete,youwillreturntothemenuwindow.
