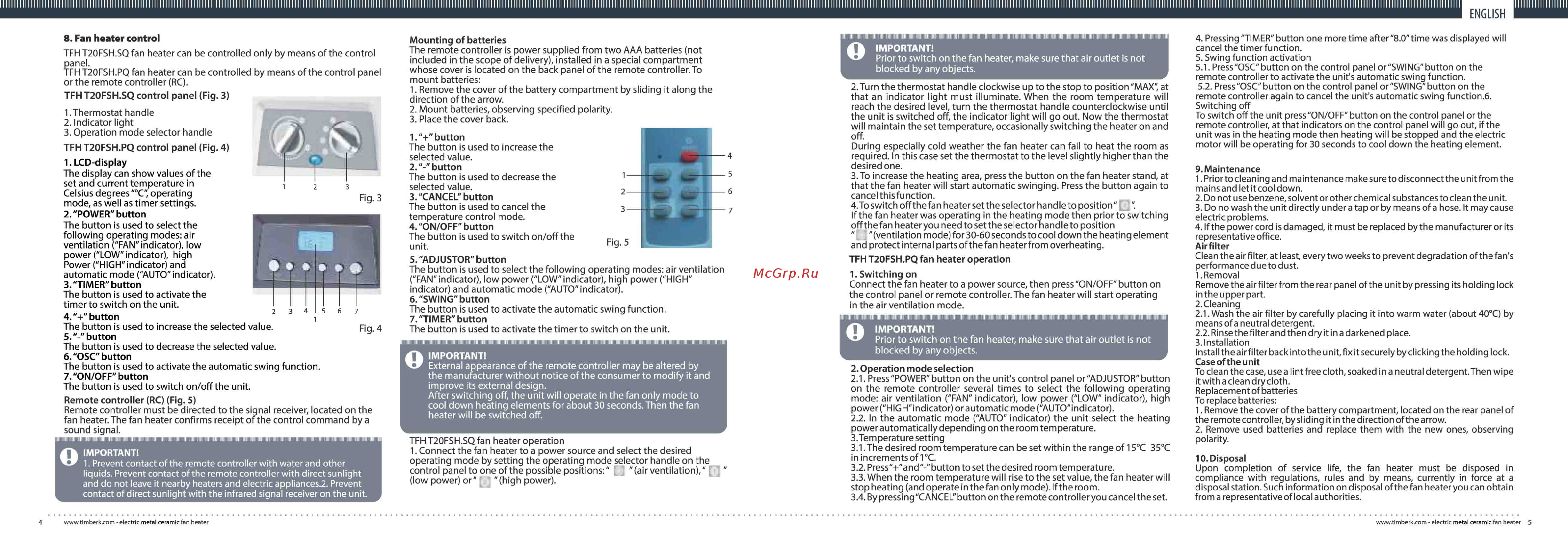

Illllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll 8 Fan heater control TFHT20FSH SQfan heater can be controlled only by means of the control panel TFHT20FSH PQfan heater can be controlled by means of the control panel or the remote controller RC TFH T20FSH SQ control panel Fig 3 1 Thermostat handle 2 Indicator light 3 Operation mode selector handle TFH T20FSH PQ control panel Fig 4 1 LCD display The display can show values of the set and current temperature in Celsius degrees C operating mode as well as timer settings 2 POWER button The button is used to select the following operating modes air ventilation FAN indicator low power LOW indicator high Power HIGH indicator and automatic mode AUTO indicator 3 TIMER button The button is used to activate the timer to switch on the unit 4 button The button is used to increase the selected value 5 button The button is used to decrease the selected value 6 OSC button The button is used to activate the automatic swing function 7 ON OFF button The button is used to switch on off the unit Fig 3 Fig 4 Remote controller RC Fig 5 Remote controller must be directed to the signal receiver located on the fan heater The fan heater confirms receipt of the control command by a sound signal O 4 IMPORTANT 1 Prevent contact of the remote controller with water and other liquids Prevent contact of the remote controller with direct sunlight and do not leave it nearby heaters and electric appliances 2 Prevent contact of direct sunlight with the infrared signal receiver on the unit www timberk com electric metal ceramic fan heater Mounting of batteries The remote controller is power supplied from two AAA batteries not included in the scope of delivery installed in a special compartment whose cover is located on the back panel of the remote controller To mount batteries 1 Remove the cover of the battery compartment by sliding it along the direction of the arrow 2 Mount batteries observing specified polarity 3 Place the cover back 1 button The button is used to increase the selected value 2 button The button is used to decrease the selected value 3 CANCEL button The button is used to cancel the temperature control mode 4 ON OFF button The button is used to switch on off the unit 5 ADJUSTOR button The button is used to select the following operating modes air ventilation FAN indicator low power LOW indicator high power HIGH indicator and automatic mode AUTO indicator 6 SWING button The button is used to activate the automatic swing function 7 TIMER button The button is used to activate the timer to switch on the unit O IMPORTANT External appearance of the remote controller may be altered by the manufacturer without notice of the consumer to modify it and improve its external design After switching off the unit will operate in the fan only mode to cool down heating elements for about 30 seconds Then the fan heater will be switched off TFH T20FSH SQ fan heater operation 1 Connect the fan heater to a power source and select the desired operating mode by setting the operating mode selector handle on the control panel to one of the possible positions air ventilation low power or high power lllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll O IMPORTANT Prior to switch on the fan heater make sure that air outlet is not blocked by any objects 2 Turn the thermostat handle clockwise up to the stop to position MAX at that an indicator light must illuminate When the room temperature will reach the desired level turn the thermostat handle counterclockwise until the unit is switched off the indicator light will go out Now the thermostat will maintain the set temperature occasionally switching the heater on and off During especially cold weather the fan heater can fail to heat the room as required In this case set the thermostat to the level slightly higher than the desired one 3 To increase the heating area press the button on the fan heater stand at that the fan heater will start automatic swinging Press the button again to cancel this function 4 To switch off the fan heater set the selector handle to position If the fan heater was operating in the heating mode then prior to switching offthefan heater you need to set the selector handle to position ventilation mode for 30 60 seconds to cool down the heating element and protect internal parts of thefan heater from overheating TFH T20FSH PQ fan heater operation 1 Switching on Connect the fan heater to a power source then press ON OFF button on the control panel or remote controller The fan heater will start operating in the air ventilation mode O IMPORTANT Prior to switch on the fan heater make sure that air outlet is not blocked by any objects 2 Operation mode selection 2 1 Press POWER button on the unit s control panel or ADJUSTOR button on the remote controller several times to select the following operating mode air ventilation FAN indicator low power LOW indicator high power HIGH indicator or automatic mode AUTO indicator 2 2 In the automatic mode AUTO indicator the unit select the heating power automatically depending on the room temperature 3 Temperature setting 3 1 The desired room temperature can beset within the range of 15 C 35 C in increments of 1 C 3 2 Press and buttonto set the desired room temperature 3 3 When the room temperature will rise to the set value the fan heater will stop heating and operate in thefan only mode If the room 3 4 By pressing CANCEL button on the remote controller you cancel the set ENGLISH lllllllllllllllll 4 Pressing TIMER button one more time after 8 0 time was displayed will cancel the timer function 5 Swing function activation 5 1 Press OSC button on the control panel or SWING button on the remote controller to activate the unit s automatic swing function 5 2 Press OSC button on the control panel or SWING button on the remote controller again to cancel the unit s automatic swing function 6 Switching off To switch off the unit press ON OFF button on the control panel or the remote controller at that indicators on the control panel will go out if the unit was in the heating mode then heating will be stopped and the electric motor will be operating for 30 seconds to cool down the heating element 9 Maintenance 1 Prior to cleaning and maintenance make sure to disconnect the unit from the mains and let it cool down 2 Do not use benzene solvent or other chemical substances to clean the unit 3 Do no wash the unit directly under a tap or by means of a hose It may cause electric problems 4 If the power cord is damaged it must be replaced by the manufacturer or its representative office Airfilter Clean the air filter at least every two weeks to prevent degradation of the fan s performance due to dust 1 Removal Remove the air filter from the rear panel of the unit by pressing its holding lock in the upper part 2 Cleaning 2 1 Wash the air filter by carefully placing it into warm water about 40 C by means of a neutral detergent 2 2 Rinse thefiIter and then dry it in a darkened place 3 Installation Install the air filter back into the unit fix it securely by clicking the holding lock Case of the unit To clean the case use a lint free cloth soaked in a neutral detergent Then wipe it with a clean dry cloth Replacement of batteries To replace batteries 1 Remove the cover of the battery compartment located on the rear panel of the remote controller by sliding it in the direction of the arrow 2 Remove used batteries and replace them with the new ones observing polarity 10 Disposal Upon completion of service life the fan heater must be disposed in compliance with regulations rules and by means currently in force at a disposal station Such information on disposal of thefan heater you can obtain from a representative of local authorities www timberk com electric metal ceramic fan heater 5
