5 -

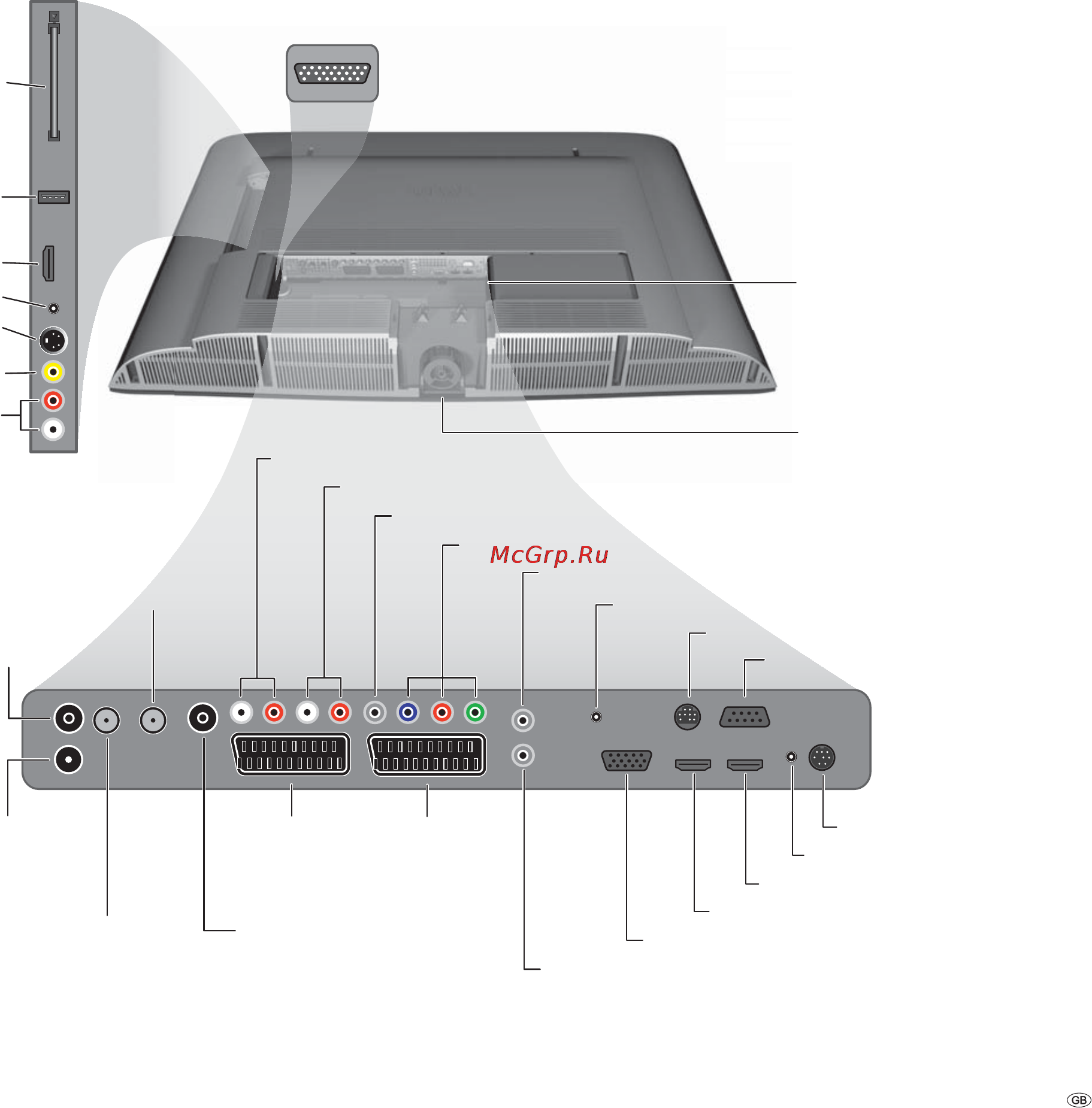

Connections rear side of the device Art 37 SL
(1
See page 66 for equipment and upgrade possibilities.
Factory setting:
AV2: DVD recorder
You can change this during the initial
installation (page 12) or in the connection
wizard (page 44).
Before you connect other devices or
make any changes, please start the con-
nection wizard (page 44) and the sound
components wizard (page 51), and then
follow the instructions that are displayed
on the TV set.
Be
f
ore
m
ake a
n
ne
ct
io
n
w
compon
e
follow t
h
o
n t
h
e
T
IR-Link
(1
- output for infrared transmitter
ANT OUT
(1
Connect antenna
output with ANT-TV
(tuner 1)
ANT-TV
Antenna/cable
analogue/digital
(Tuner 1)
mains switch
CONTROL
(1
- rotating stand control (MU)
RS-232C
(1
- serial interface
AUDIO IN1 L/R - audio input left/right (analogue)
AUDIO OUT L/R - audio output left/right (analogue)
ANT SAT2
(1
Satellite antenna
(Sat tuner 2)
ANT2
(1
Antenna/cable
analogue/digital
(tuner 2)
AV1
Euro-AV
socket 1
AV2 (RGB)
Euro-AV
socket 2
220-240V~ 50/60Hz
mains connection
SERVICE - service socket
PC IN - VGA/XGA input
HDMI 2 - HDMI (DVI) input 2
AUDIO DIGITAL IN - digital audio input
AUDIO DIGITAL OUT - digital audio output
SD/HD-COMPONENT IN Cb/Pb–Cr/Pr–Y - component video inputs
Headphones connection
AV-S - S-VHS connection (AVS)
(e.g. for camcorder)
VIDEO IN - Video in (AVS)
AUDIO IN - Audio in left /
right (AVS)
AUDIO IN1 C - centre audio input (analogue)
AUDIO LINK
(1
-
surround audio
outputs (analogue)
HDMI 1 - HDMI (DVI) input 1
HDMI 3 - HDMI (DVI) input 3
USB - USB connection
(USB stick/card reader)
ANT SAT
(1
Satellite antenna
(Sat tuner 1)
AUDIO IN2 - audio input (analogue)
CI - Common Interface
(CI-Slot)
