5
SWING
Press the oscillate control knob, the fan begins to wave. Pull the button, the fan stops waving.
SETTING THE TILT ANGLE
Slack off the knurled screw on the ball joint, move the fan to the desired angle, then tighten the knurled
screw down again.
The r
emote control must face to the receiver:
• The using range of the remote control must be within 8 meter away from the receiver. If the remote
control isn't faced to the receiver, its using range will be narrowed.
• If this fan is used in the room with operating high>power machines, the remote control will be out of
order.
• Don't put any obstructions between the receiver and the remote control.
• Please take good care of the remote control and avoid knocking and breaking it.
• If you don't use the remote control, please take the cell out and keep it well.
MAINTENANCE
1. Always unplug the fan before performing any maintenance work.
2. Carefully clean the fan prior to storing.
3. When storing the fan during the winter months, be sure to keep it in a dry location protected from damp.
4. While using the fan, be sure to keep it clean by periodically wiping it with a cloth soaked in soapy water.
5. Never use detergents or solvents.
6. Always follow the assembly procedure with care when re>assembling the fan.

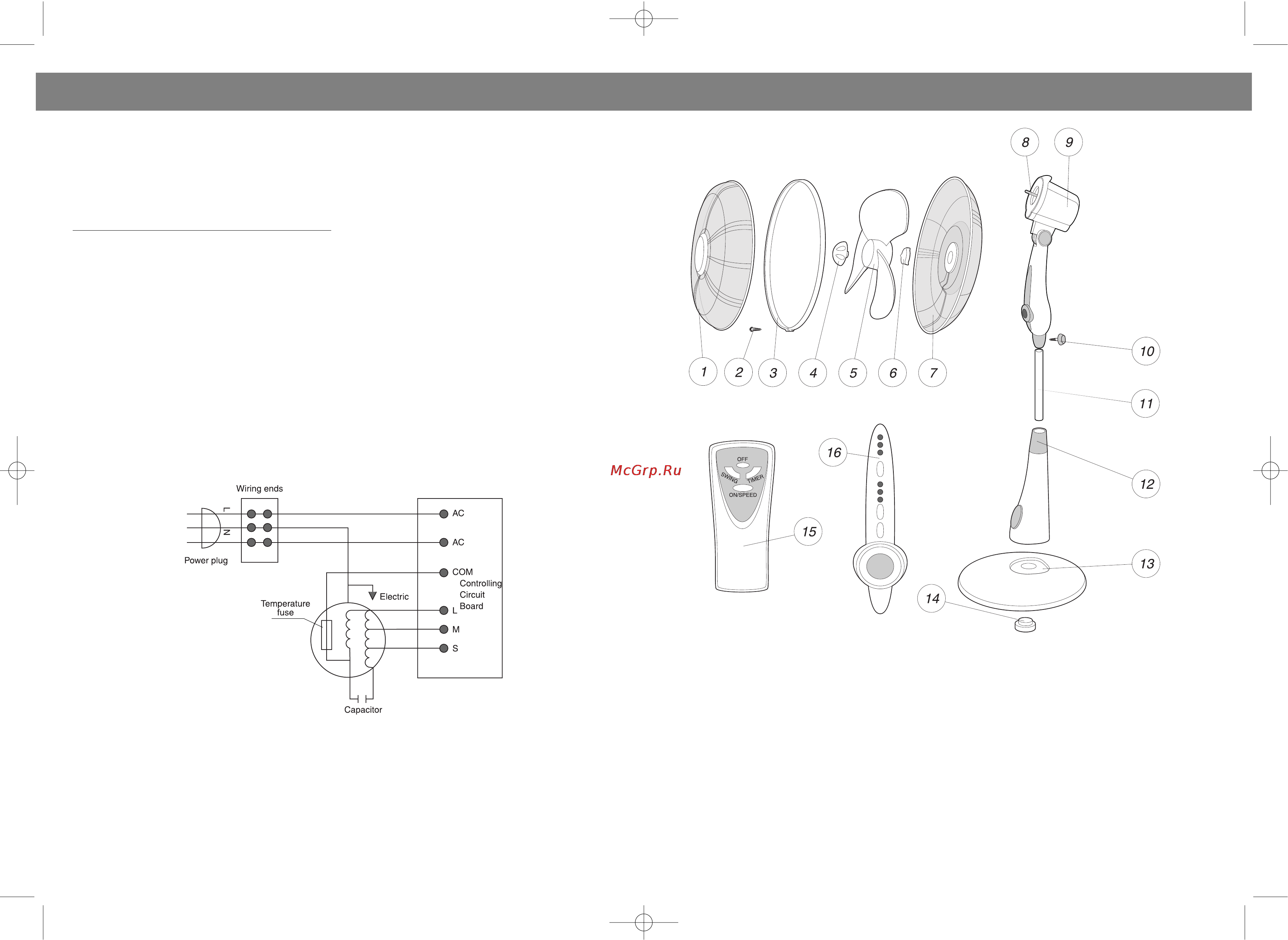

ELECTRIC PRINCIPLES DIAGRAM
SPECIFICATION
Power 60 W
Voltage 220>240 V ~ 50 Hz
Blade>diameter 16” (40 cm.)
3>speed control
SERVICE LIFE OF THE FAN NOT LESS THAN 5 YEARS
4
ENGLISH РУССКИЙ
1. Передняя решетка
2. Винт для крепления обода
3. Обод
4. Фиксатор лопасти вентилятора
5. Лопасть вентилятора
6. Гайка для крепления
задней решетки
7. Задняя решетка
8. Вал двигателя
9. Кожух двигателя
10. Винт, фиксирующий высоту
вентилятора
11. Верхняя выдвижная трубка
12. Нижняя часть основания
13. Подставка
14. Гайка для крепления нижней
части основания
15. Пульт ДУ
16. Панель управления
УКАЗАНИЯ ПО СБОРКЕ:
1919.qxd 24.12.03 11:45 Page 8
Содержание
- Manual instruction инструкция по эксплуатации 1
- Модель vt 1919 1
- English 2
- Front grill 2 grill nut 3 grill ring 4 fan blade nut 5 fan blade 6 rear grill mounting ring 7 rear grill 8 motor shaft 2
- Motor housing 10 height adjustment collar 11 upper body 12 lower body 13 base 14 base nut 15 remote control 16 control panel 2
- Name of components 2
- Qxd 24 2 3 11 45 page 4 2
- Русский 2
- Assembl y instructions please assemble correctly by the following orders when using 3
- Assembly the stand 3
- English 3
- Front net assembly 3
- Link the fan main body and the standing shaft together by the fixing screw and then fix them loosen the fixing screw and pull the electroplated pipe to the height needed and then fix it firmly 3
- Off stop 3
- Press the off key all the working state will be cancel 3
- Put the fan blade onto the electrical axle centre and the axle centre bolt must be pressed to the end of the concave notch at the back of the fan blade they must be tallied completely screw the screw into the electrical axle centre in anti clockwise direction and then fix it 3
- Put the hook of the front guard ring on the top of rear net put the rear net into front make them tally completely tighten the fastening screw of the lower of the front guard ring 3
- Qxd 24 2 3 11 45 page 6 3
- Rear net assembly 3
- Safety measures 1 never use this fan close to a water source bathtub washbasin swimming pool 2 never slip fingers pencils or any other object through two grilles when the fan is in motion 3 disconnect the fan when moving it from one place to another 4 disconnect the fan prior to removing the grilles for cleaning 5 always ensure that the fan is placed on a stable surface to avoid it tipping over 6 never expose the fan to rain water projections or damp 7 if the fan s power cord becomes damaged it must only be replaced by an after sales service technician or another suitably qualified person to avoid any safety hazard 3
- Screw the blade fastening screw out in clockwise direction and screw the net fastening screw out in anti clockwise direction fix the rear guard onto the three pillars of the motor front shell screw the net fastening screw tightly in clockwise direction 3
- Screw the iron plate out of the standing shaft in anti clockwise direction put the standing shaft into the stand screw the iron plate firmly from the bottom of the stand in clockwise direction and combinate the standing shaft and the stand well 3
- Strong 1 low speed 2 medium speed 3 high speed 3
- The assembly of fan blade 3
- The whole assembly 3
- Using the fan on speed 3
- Русский 3
