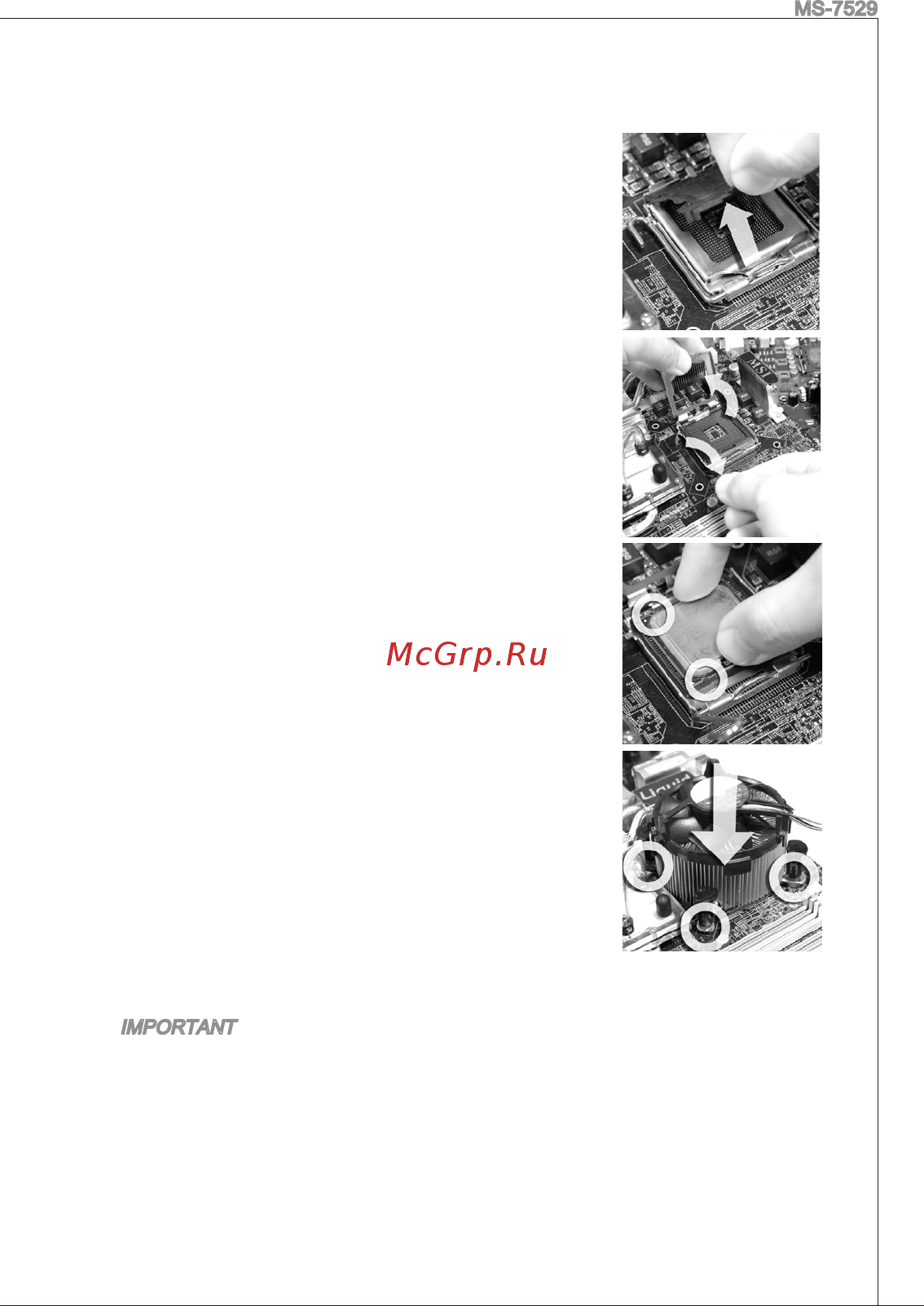

MS 7529 Follow the steps below to install the CPU cooler correctly Wrong installation will cause the damage of your CPU mainboard 1 The CPU socket has a plastic cap on it to protect the contact from damage Before you install the CPU always cover it to protect the socket pin 2 Remove the cap from lever hinge sde 3 The pins of socket reveal 4 Open the load lever 5 Lift the load lever up and open the load plate 6 After confirming the CPU direction for correct mat ing put down the CPU in the socket housing frame Be sure to grasp on the edge of the CPU base Note that the alignment keys are matched 7 Visually inspect if the CPU is sealed well into the socket If not take out the CPU with pure vertical motion and reinstall 8 Cover the load plate onto the package 9 Press down the load lever lightly onto the load plate and then secure the lever with the hook under re tention tab 10 Align the holes on the mainboard with the heatsink Push down the cooler until its four clips get wedged into the holes of the mainboard 11 Press the four hooks down to fasten the cooler Then rotate the locking switch refer to the correct direction marked on it to lock the hooks 12 Turn over the mainboard to confirm that the clip ends are correctly inserted 13 Finally attach the CPU Fan cable to the CPU fan connector on the mainboard IMPORTANT Read the CPU status in BIOS Whenever CPU is not installed always protect your CPU socket pin with the plastic cap covered to avoid damaging Mainboard photos shown in this section are for demonstration of the CPU ccder installation only The appearance of your mainboard may vary depending on the model you purchase 13
