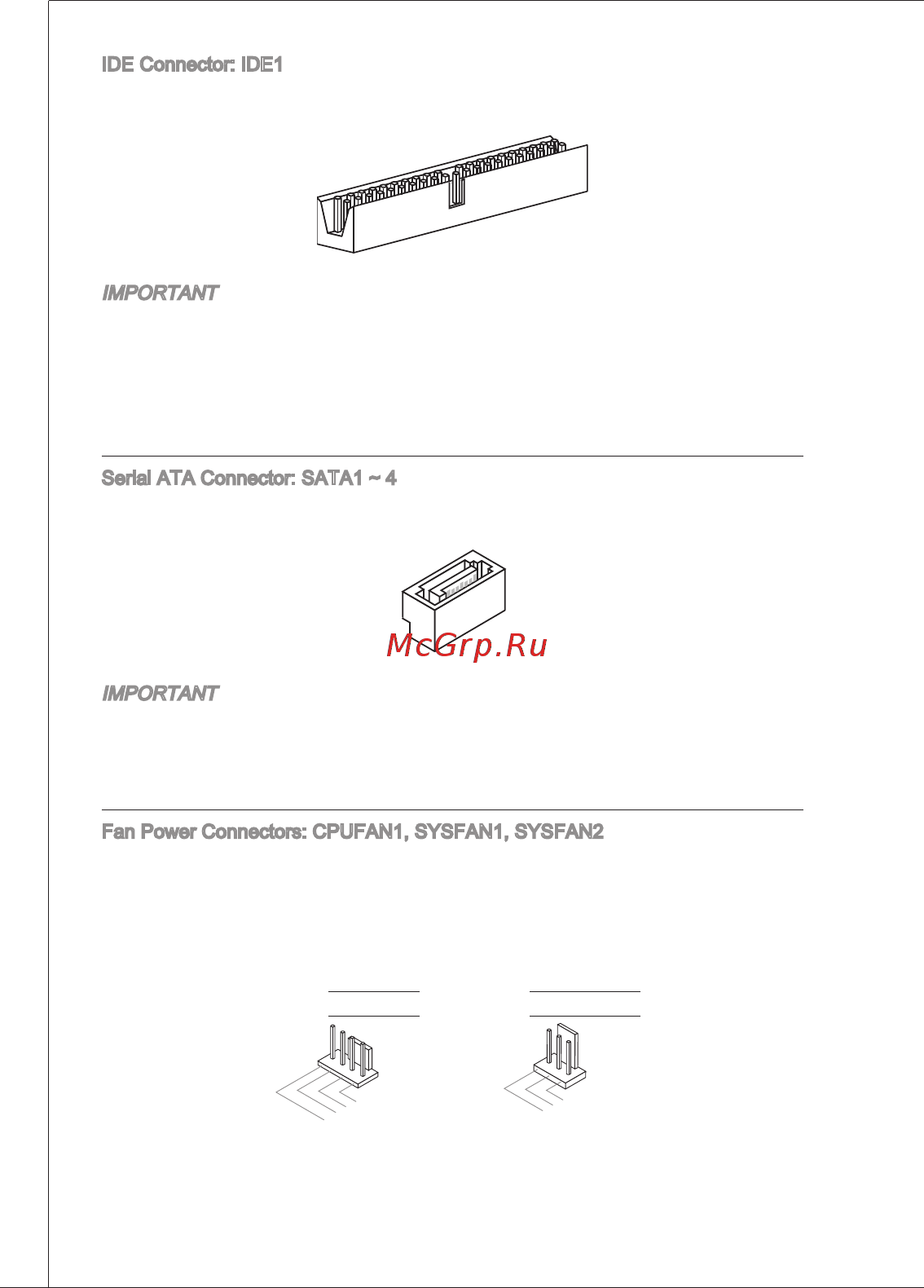

IDE Connector IDE1 This connector supports IDE hard disk drives optical disk drives and other IDE devices IMPORTANT If you install two IDE devices on the same cable you must configure the drives to cable select mode or separately to master slave mode by setting jumpers Refer to IDE device documentation supplied by the vendors for jumper setting instructions Serial ATA Connector SATA1 4 This connector is a high speed connect to one Serial ATA device Serial ATA interface port Each connector can IMPORTANT Please do not fold the Serial ATA cable into 90 degree angle Otherwise data loss may occur during transmission Fan Power Connectors CPUFAN1 SYSFAN1 SYSFAN2 The fan power connectors support system cooling fan with 12V When connect ing the wire to the connectors always note that the red wire is the positive and should be connected to the 12V the black wire is Ground and should be con nected to GND If the mainboard has a System Hardware Monitor chipset on board you must use a specially designed fan with speed sensor to take advantage of the CPU fan control CPUFAN1 16 SYSFAN1 2
