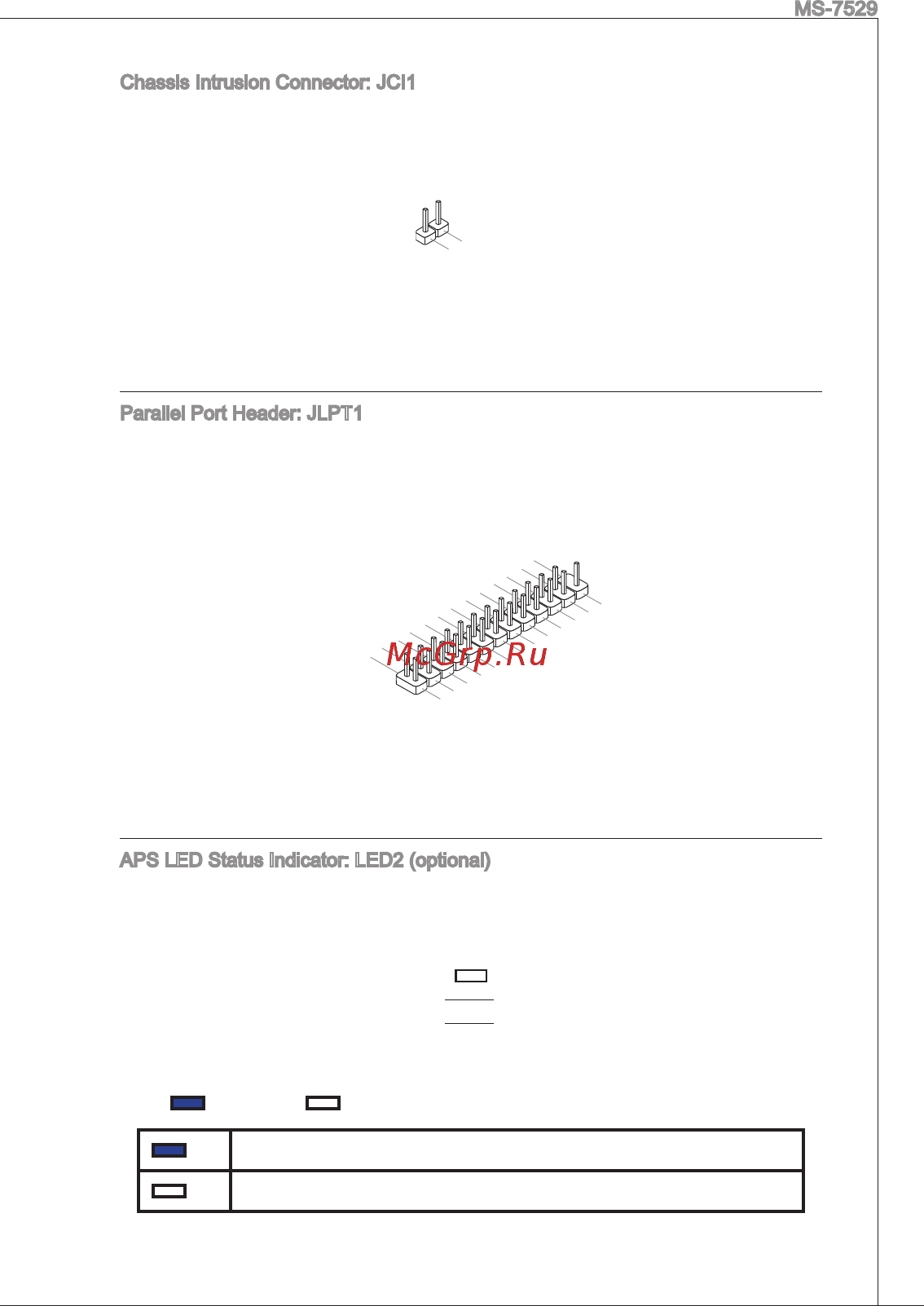

MS 7529 Chassis Intrusion Connector JCI1 This connector connects to the chassis intrusion switch cable If the chassis is opened the chassis intrusion mechanism will be activated The system will record this status and show a warning message on the screen To clear the warning you must enter the BIOS utility and clear the record Parallel Port Header JLPT1 This connector is used to connect an optional parallel port bracket The parallel port is a standard printer port that supports Enhanced Parallel Port EPP and Extended Capabilities Parallel Port ECP mode APS LED Status Indicator LED2 optional The APS Active Phase Switching LED indicates the current CPU power phase mode Follow tthe instructions belows to read LED2 M ON I i OFF LZZl LED2 will light blue when CPU is in 2 or 3 phase power mode l l LED2 will dark when CPU is in 1 phase power mode 19
