En-4
MS-7526 Mainboard

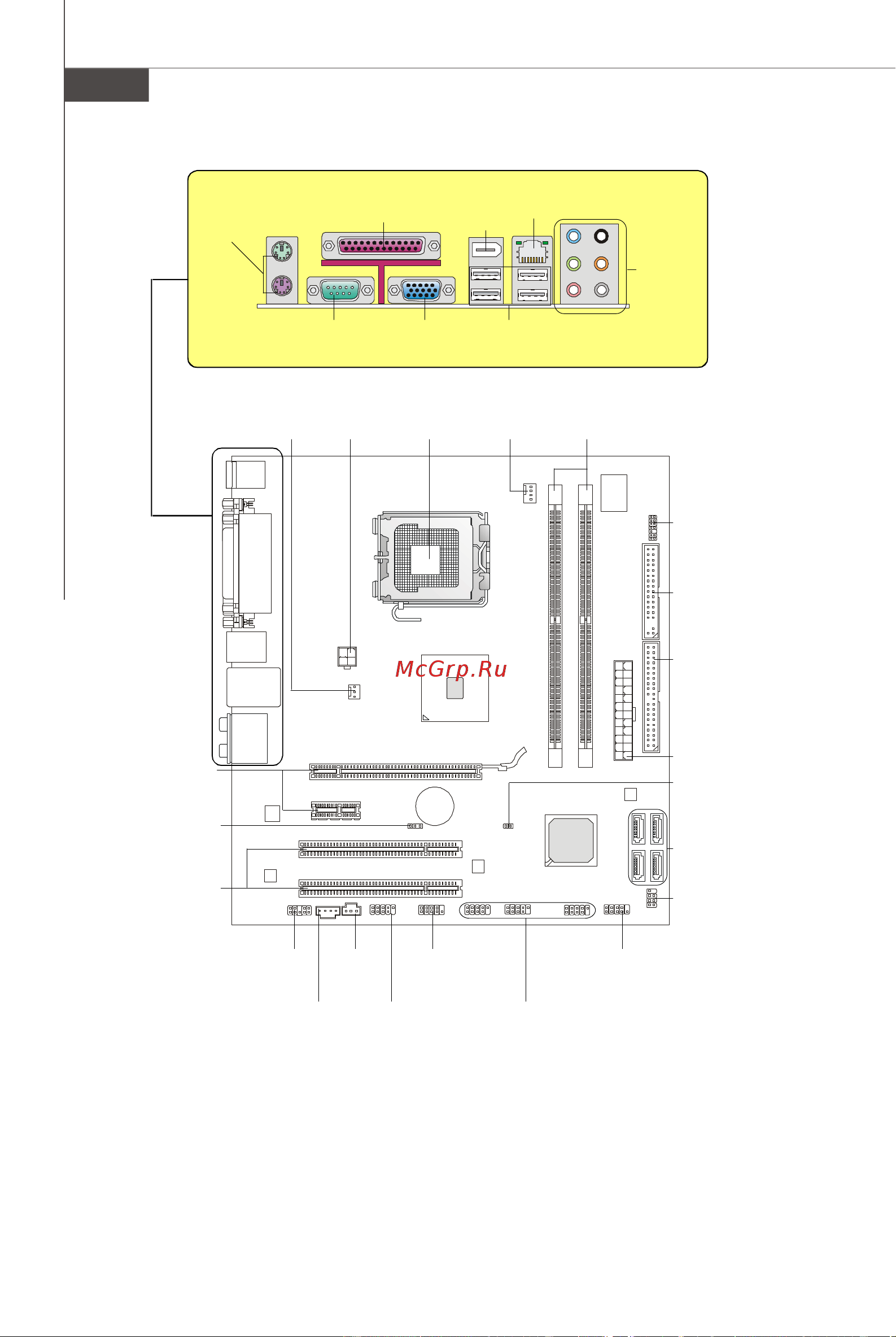

Quick Components Guide of G43M2/ G45M2 Series
(MS-7526 v1.X) Mainboard
Mouse/
Keyboard,
En-15
VGA Port,
En-15
1394
Port,
En-16
USB Port,
En-16
LAN,
En-16
Audio
Port,
En-16
Line-In
RS-Out
Serial Port,
En-15
Parallel Port,
En-15
Line-Out
Mic
CS-Out
SS-Out
PWR1,
En-13
CPU,
En-5
DIMM1~2,
En-7
ATX1, En-13
IDE1, En-9
SYSFAN1,
En-9
JCI1, En-12
SATA1~4, En-10
JBAT1, En-12
JUSB1~3,
En-11
JFP2, En-10
JFP1,
En-10
JTPM1, En-13
J1394_1,
En-10
JSPD1,
En-11
JAUD1,
En-11
JCD1,
En-12
PCI Slot, En-14
PCI Express Slot,
En-14
CPUFAN1,
En-9
FDD1, En-9
JCOM2,
En-12
