MSI G41M-P31 [15/153] Atx 24 pin power connector jpwr1

MSI G41M-P31 [15/153] Atx 24 pin power connector jpwr1

MS-7592





13 .+3. 3
V
1. +3.3
V
14 .-12 V
2. +3.3
V
15 .Gro und
3
.G roun d
16 .PS- ON
#
4. +5
V
17 .Gro und
5
.G roun d
18 .Gro und
6. +5
V
19 .Gro und
7
.G roun d
22 .+5
V
10 .+12 V
20 .Res
8. PW
R O
K
23 .+5
V
11
.+ 12V
21 .+5
V
9. 5VSB
24 .Gro und
12 .+3. 3
V


4. +12V
2. Grou nd
3. +12V
1
.G roun d



    





Содержание

Похожие устройства

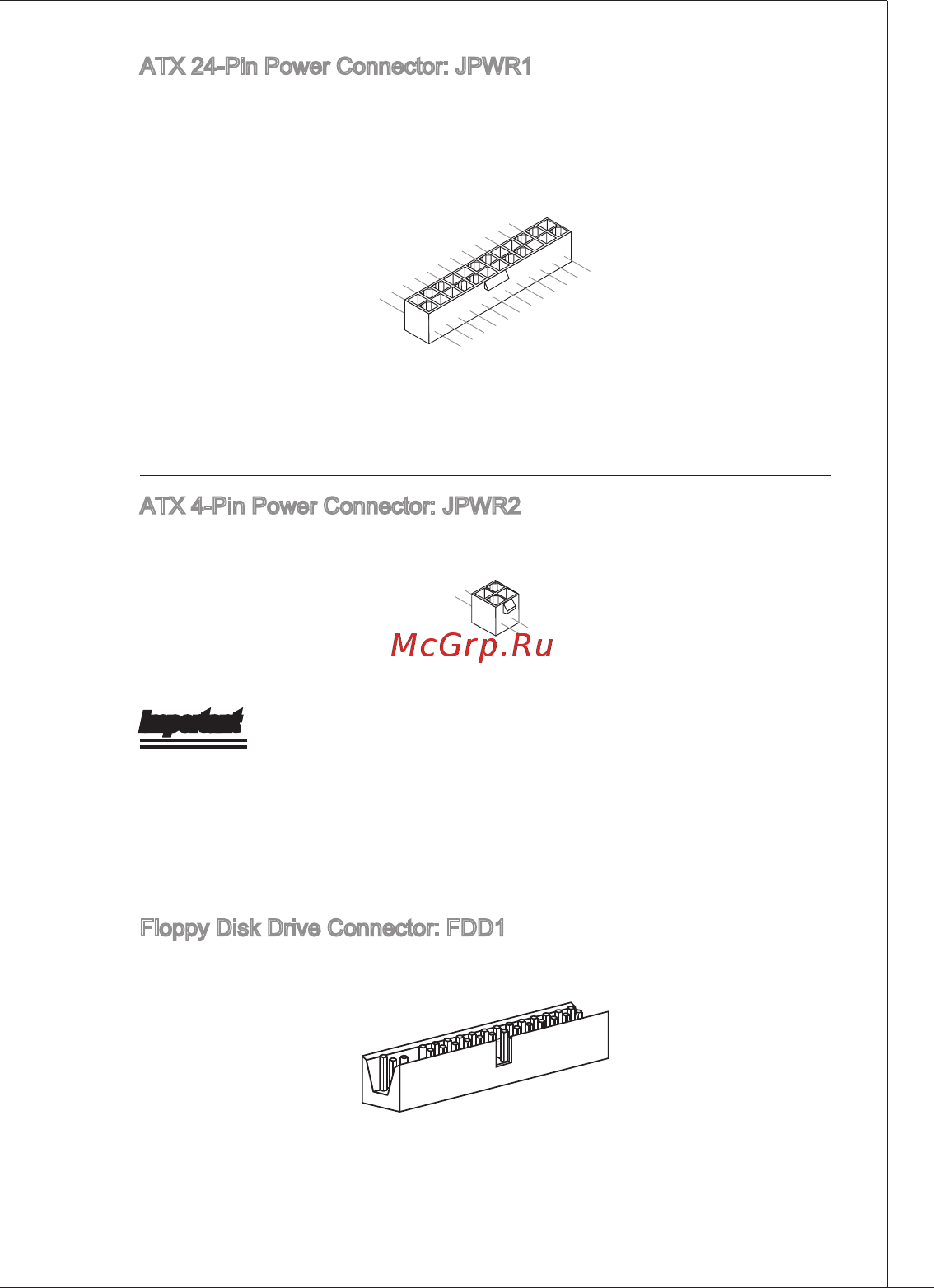

MS 7592 ATX 24 Pin Power Connector JPWR1 This connector allows you to connect an ATX 24 pin power supply To connect the ATX 24 pin power supply make sure the plug of the power supply is inserted in the proper orientation and the pins are aligned Then push down the power supply firmly into the connector ATX 4 Pin Power Connector JPWR2 This 4 Pin power connector is used to provide pcwer to the CPU Make sure that all the connectors are connected to proper ATX power sup plies to ensure stable operation of the mainboard Power supply of 350 watts and above is highly recommended for system stability Floppy Disk Drive Connector FDD1 This connector supports 360KB 720KB 1 2MB 1 44MB or 2 88MB floppy disk drive 15
