APU & Cooler Installaton

When you are nstallng the APU, make sure the APU has a cooler attached on the top

to prevent overheatng. Meanwhle, do not forget to apply some thermal paste on APU

before nstallng the heat snk/cooler fan for better heat dsperson.

Follow the steps below to nstall the APU & cooler correctly. Wrong nstallaton wll

cause the damage of your APU & manboard.

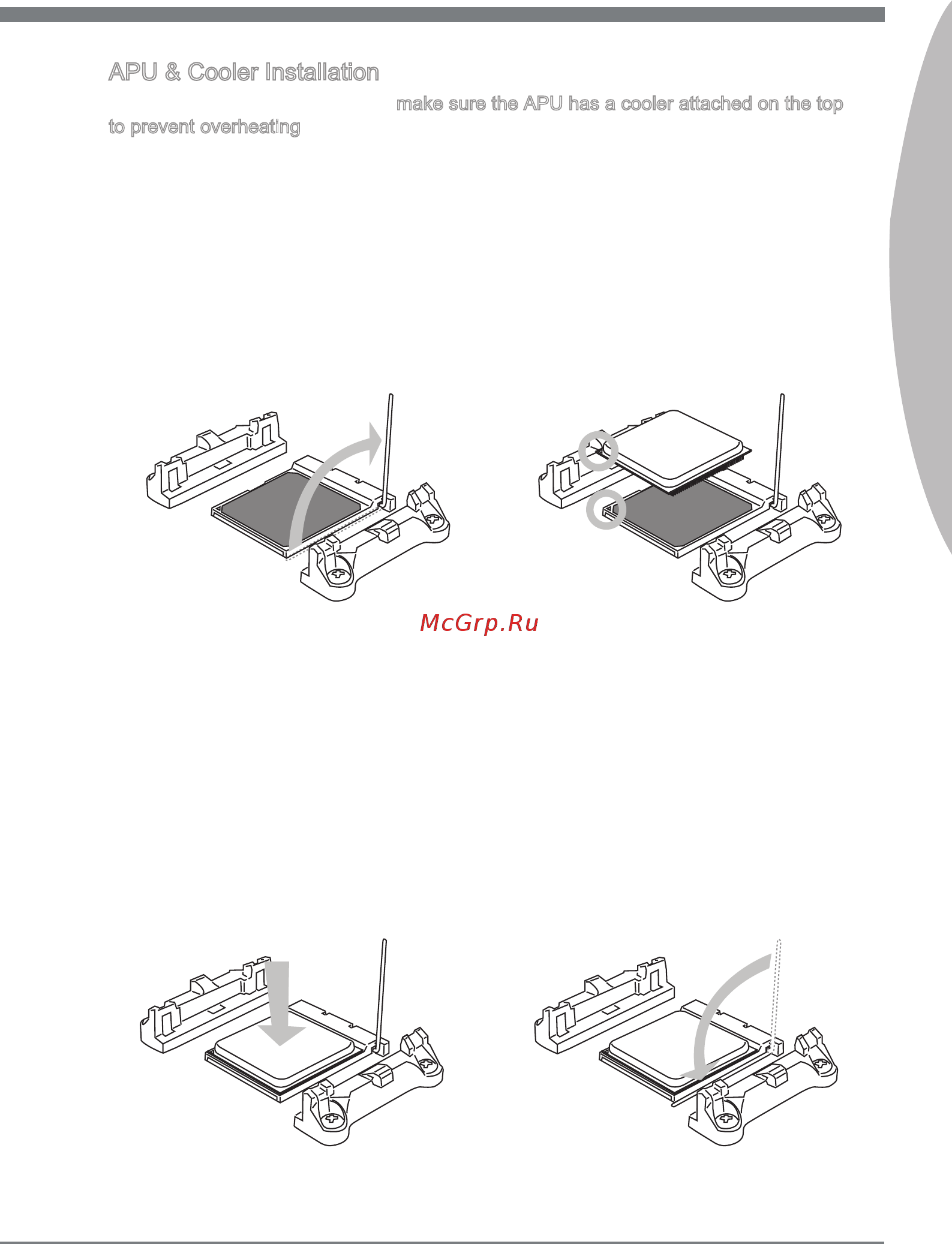

Pull the lever sdeways away from

the socket. Make sure to rase the

lever up to a 90-degree angle.

Look for the gold arrow of the APU.

The gold arrow should pont as

shown n the pcture. The APU can

only t n the correct orentaton.

If the APU s correctly nstalled, the

pns should be completely embedded

nto the socket and can not be seen.

Please note that any volaton of the

correct nstallaton procedures may

cause permanent damages to your

manboard.

3. Press the APU down rmly nto the

socket and close the lever. As the

APU s lkely to move whle the lever

s beng closed, always close the

lever wth your ngers pressng tghtly

on top of the APU to make sure the

APU s properly and completely

embedded nto the socket.
