3.4 Use Lightning Arrester

Power lightning arrester and signal lightning arrester are used for lighting protection.

Power lightning arrester is used for limiting the voltage surge due to a lightning. If an

outdoor AC power cord should be directly connected to the device, please use a power

lightning arrester.

Note: Power lightning arrester is not provided with our product. If needed, please self

purchase it.

Signal lightning arrester is used to protect RJ45 ports of the device from lightning.

When cabling outdoors, please install a signal lightning arrester before connecting the

cable to the device.

When purchasing or using a signal lightning arrester, please observe the following

rules:

■

The port rate of the signal lightning arrester should match the rate of the desired port

on the device. If it is not matched, this signal lighting arrester will not work. Purchase

a standard lightning arrester.

■

Install signal lightning arrester near the protected device and connect it to the

ground via a shorter ground cable.

Ethernet Cable

Equipotential Bonding CableGrounding Terminal

Signal Lightning Arrester Device

T2600-28TS

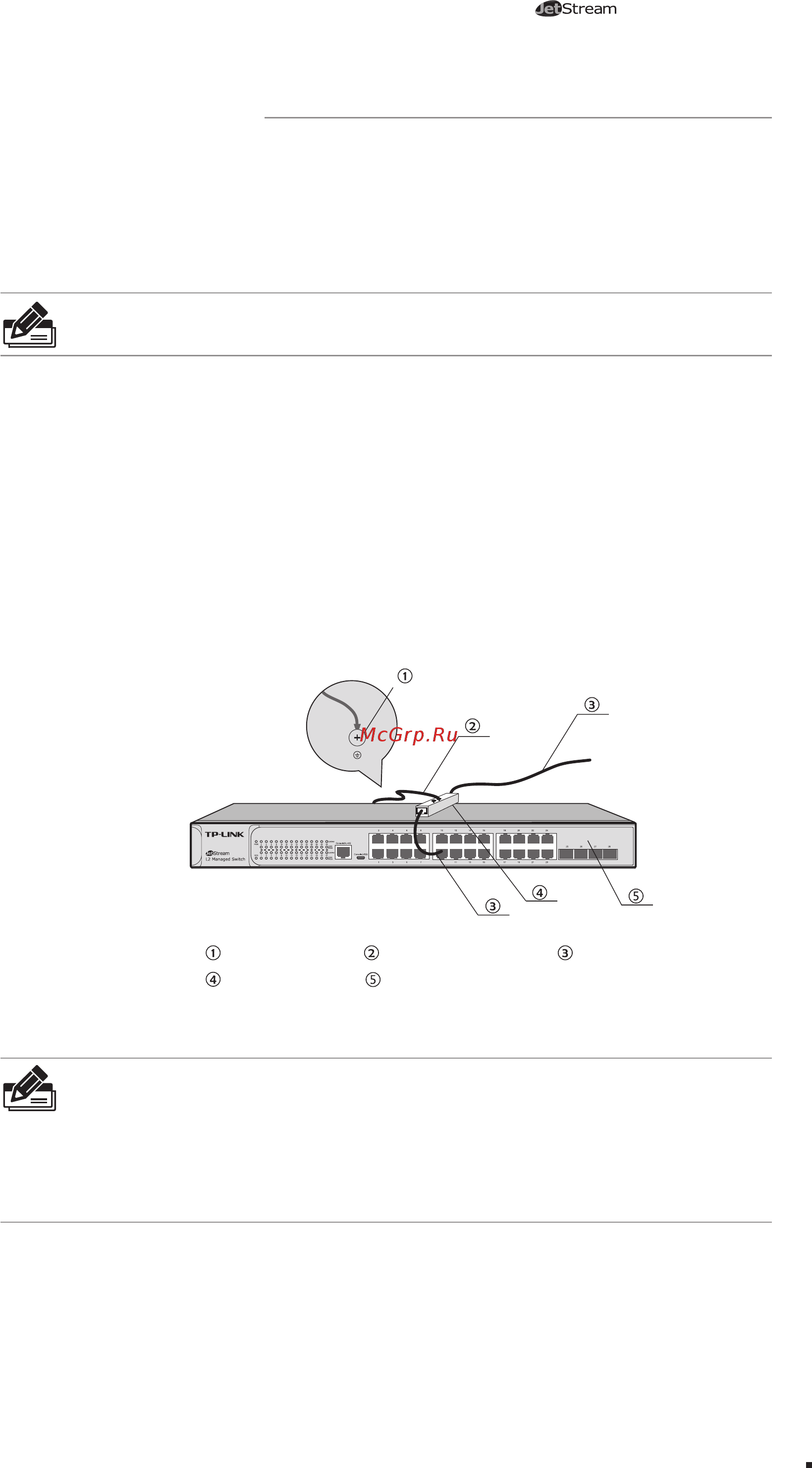

Figure 3-4 Lightning Arrester Connection

Note:

■

Signal lightning arrester is not provided with our product. If needed, please self

purchase it.

■

The SFP ports perform transmission by optical fiber which is immune to electric

conduction. Therefore, 3.4 Use Lightning Arrester is not appropriate for SFP ports

but only applies to RJ45 ports.
