Connection

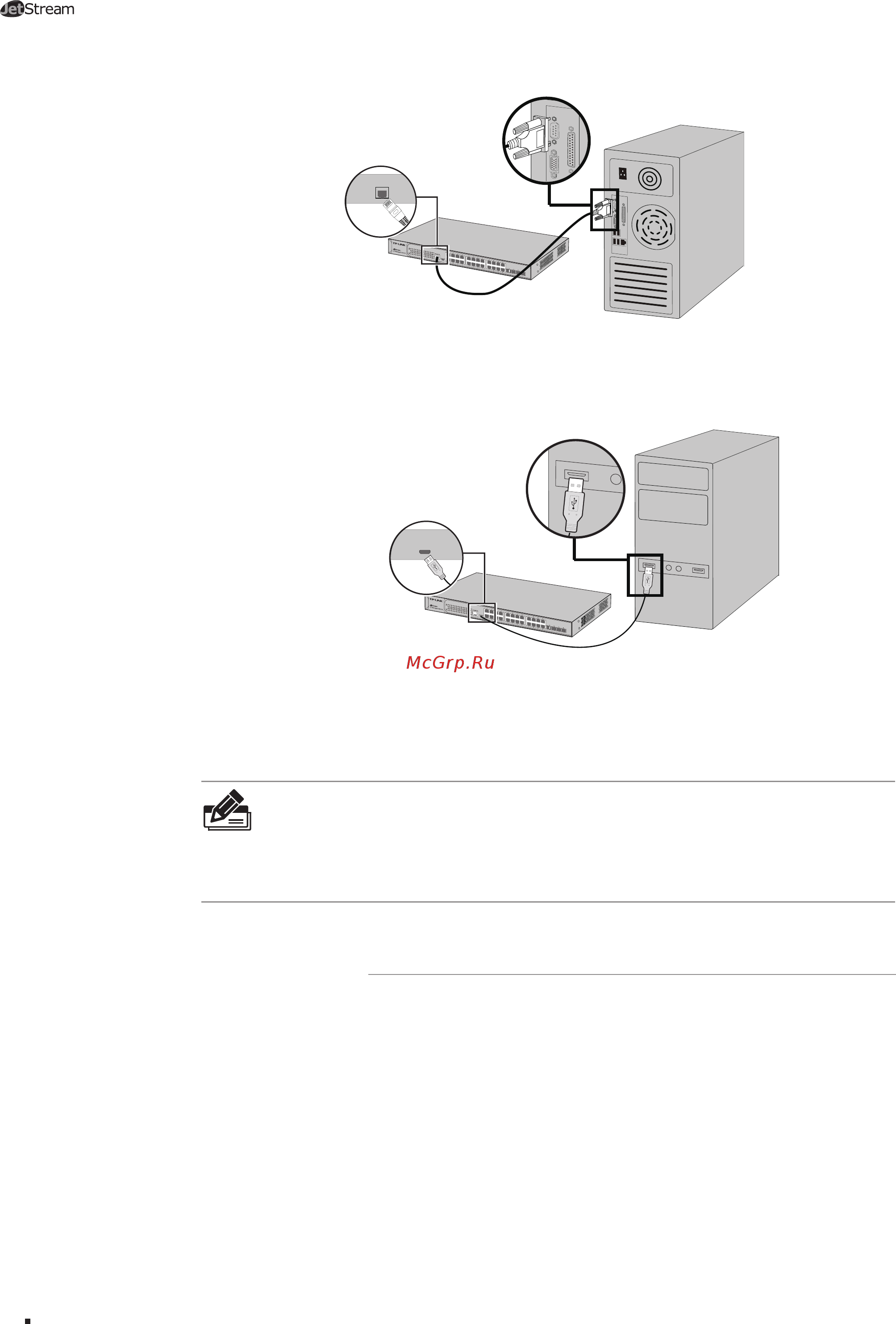

Figure 4-4 Connecting the Console (RJ-45) Port

Connect the Console (USB) port of the device with your computer by the USB cable as

the following figure shows.

T2600-28TS

Console(USB)

Figure 4-5 Connecting the Console (USB) Port

You can also manage the device through the console port, for details please refer to the

CLI Reference Guide on the resource CD.

Note:

■

Console (RJ-45) port and Console (USB) port cannot be used cocurrently. Console

(USB) port takes priority over the Console (RJ-45) port.

■

Please keep the device power off when plugging the cable.

■

Do not connect the console port with other ports by RJ45 cable.

4.4 Verify Installation

After completing the installation, please verify the following items:

■

There are 5~10cm of clearance around the sides of the device for ventilation and the

air flow is adequate.

■

The voltage of the power supply meets the requirement of the input voltage of the

device.

■

The power socket, device and rack are well grounded.

■

The device is correctly connected to other network devices.

T2600-28TS

Console(RJ45)
