Private VLAN functions are implemented on the PVLAN Config and Port Config pages.

6.9.1 PVLAN Config

On this page, you can create Private VLAN and view the information of the current defined Private

VLANs.

Choose the menu VLAN→Private VLAN→PVLAN Config to load the following page.

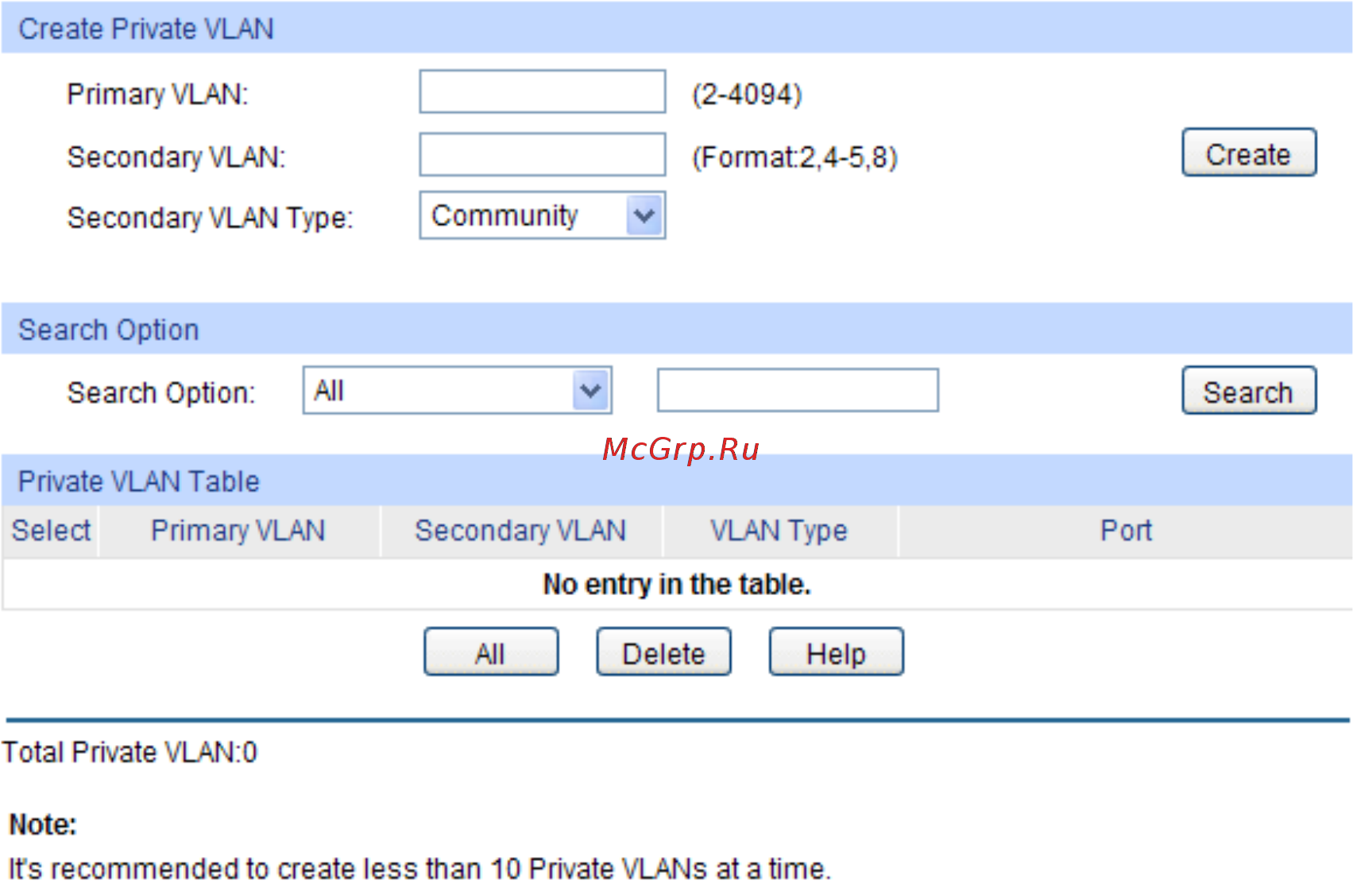

Figure 6-17 Create Private VLAN

The following entries are displayed on this screen:



Create Private VLAN

Primary VLAN:

Enter the ID number of the Primary VLAN.

Secondary VLAN:

Enter the ID number of the Secondary VLAN.



Search Option

Search Option:

Select a Search Option from the pull-down list and click the Search

button to find your desired entry in Private VLAN.

 All: Enter either the Primary VLAN ID or Secondary VLAN ID of

the desired Private VLAN.

 Primary VLAN ID:

Enter the Primary VLAN ID number of the

desired Private VLAN.

 Secondary VLAN ID:

Enter the Secondary VLAN ID number of

the desired Private VLAN.



Private VLAN Table

Select:

Select the entry to delete. It is multi-optional.
