166

Select: Select the Querier you want to change.

VLAN ID: Displays the VLAN ID.

Query Interval: Displays the Query message interval time.

Max Response Time: Displays the value of Maximum Response Time of the

Query message.

General Query

Source IP:

Displays the Query message source IP address.

Note:

The MLD Snooping Querier doesn’t participate in the MLD Querier Election, but an MLD Snooping

Querier will affect the MLD Querier Election in the IPv6 network running MLD because of its

relatively smaller IP address.

9.2.6 Profile Config

On this page you can configure an MLD profile.

Choose the menu Multicast→MLD Snooping→Profile Config to load the following page.

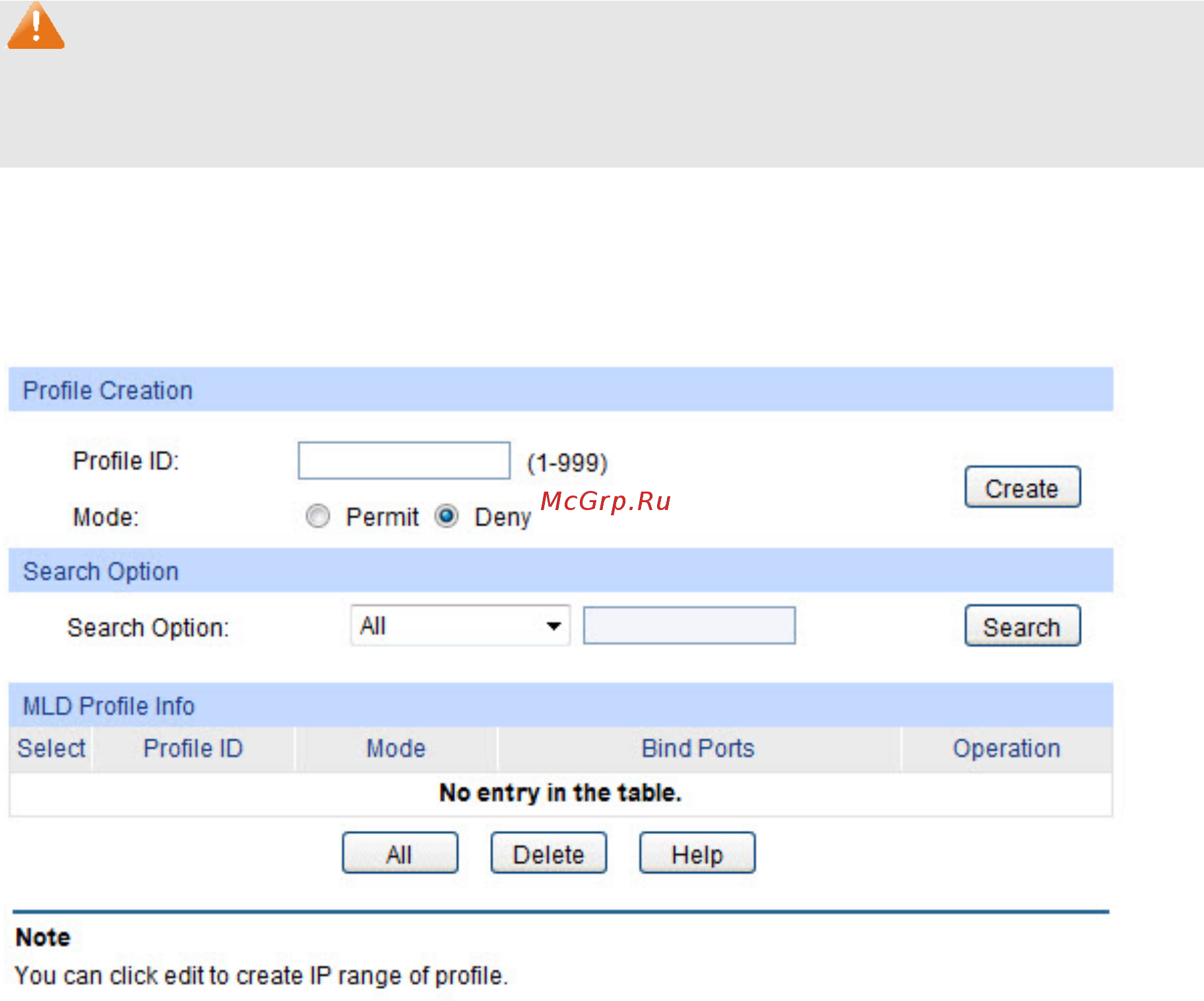

Figure 9-19 Profile Config

The following entries are displayed on this screen:



Profile Creation

Profile ID: Specify the Profile ID you want to create, and it should

range from 1 to 999.

Mode: The attributes of the profile.

 Permit:

Only permit the IP address within the IP

range and deny others.

 Deny:

Only deny the IP address within the IP

range and permit others.



Search Option

Search Option: Select the rules for displaying profile entries.
