Choose the menu ACL→ACL Config→Standard-IP ACL to load the following page.

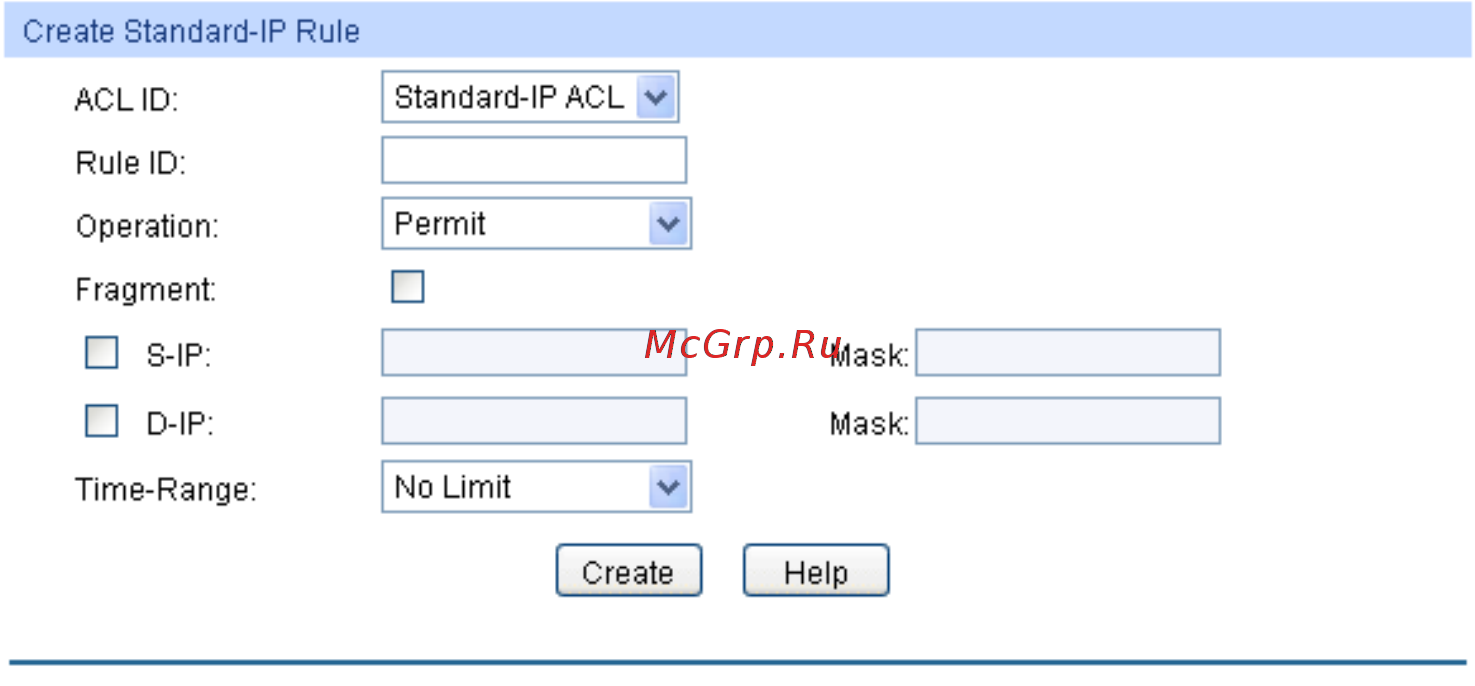

Figure12-7 Create Standard-IP Rule

The following entries are displayed on this screen:



Create Standard-IP Rule

ACL ID: Select the desired Standard-IP ACL for configuration.

Rule ID: Enter the rule ID.

Operation:

Select the operation for the switch to process packets which match the

rules.

 Permit: Forward packets.

 Deny: Discard Packets.

Fragment: Select if the rule will take effect on the fragment. When the fragment is

selected, this rule will process all the fragments and the last piece of

fragment will be always forwarded.

S-IP: Enter the source IP address contained in the rule.

D-IP: Enter the destination IP address contained in the rule.

Mask: Enter

IP address mask. If it is set to 1, it must strictly match the

address.

Time-Range: Select the time-range for the rule to take effect.

12.2.5 Extend-IP ACL

Extend-IP ACLs analyze and process data packets based on a series of match conditions, which

can be the source IP addresses, destination IP addresses, IP protocol and other information of this

sort carried in the packets.

Choose the menu ACL→ACL Config→Extend-IP ACL to load the following page.
