6. The Firmware Upgrade Utility

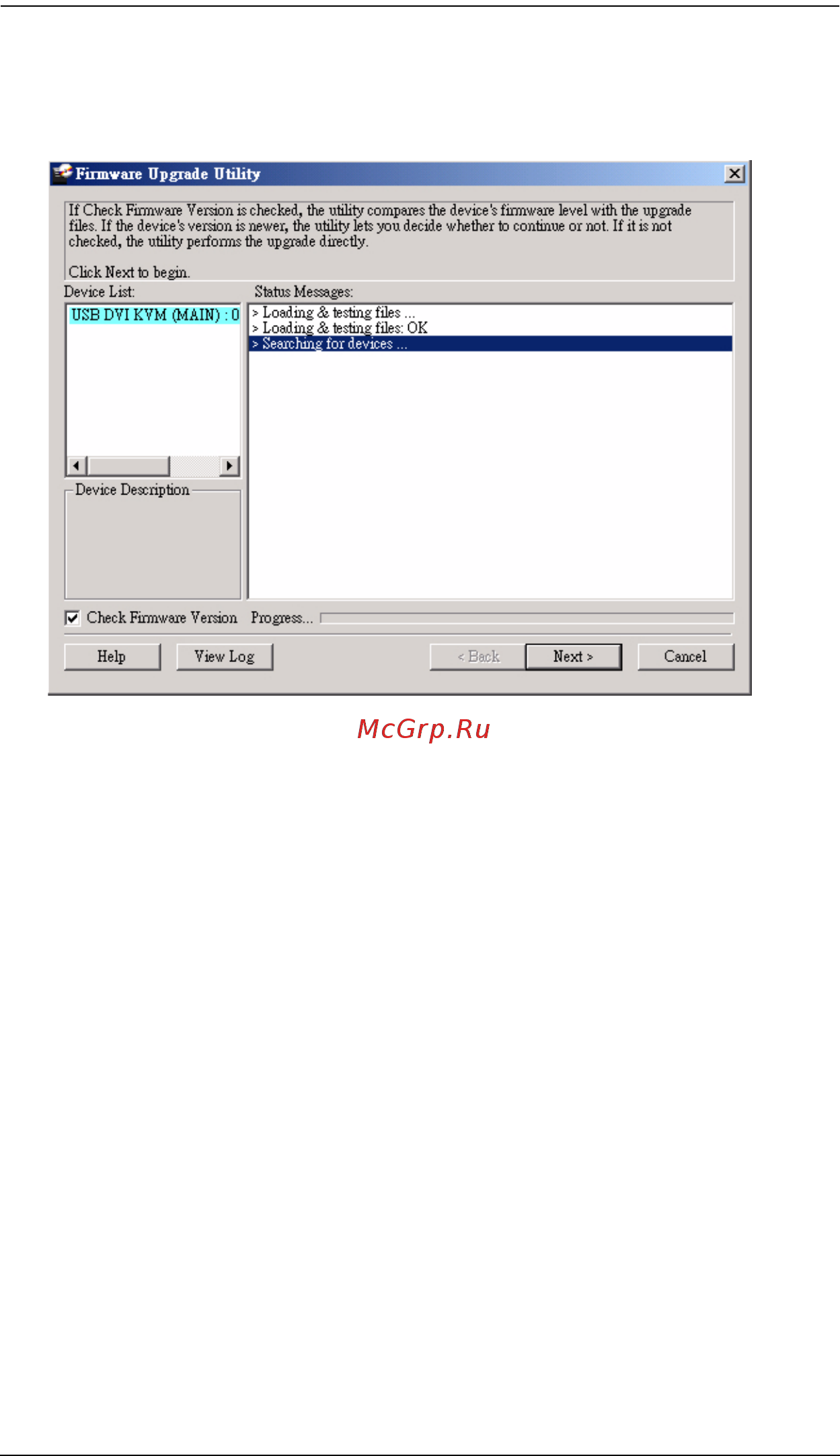

3. Click Next. The Firmware Upgrade Utility main screen appears. The

Utility inspects your installation. All the devices capable of being

upgraded by the package are listed in the Device List panel.

4. As you select a device in the list, its description appears in the Device

Description panel.After you have made your device selection(s), Click

Next to perform the upgrade.

(Continues on next page.)
