Chapter 1. Introduction
7

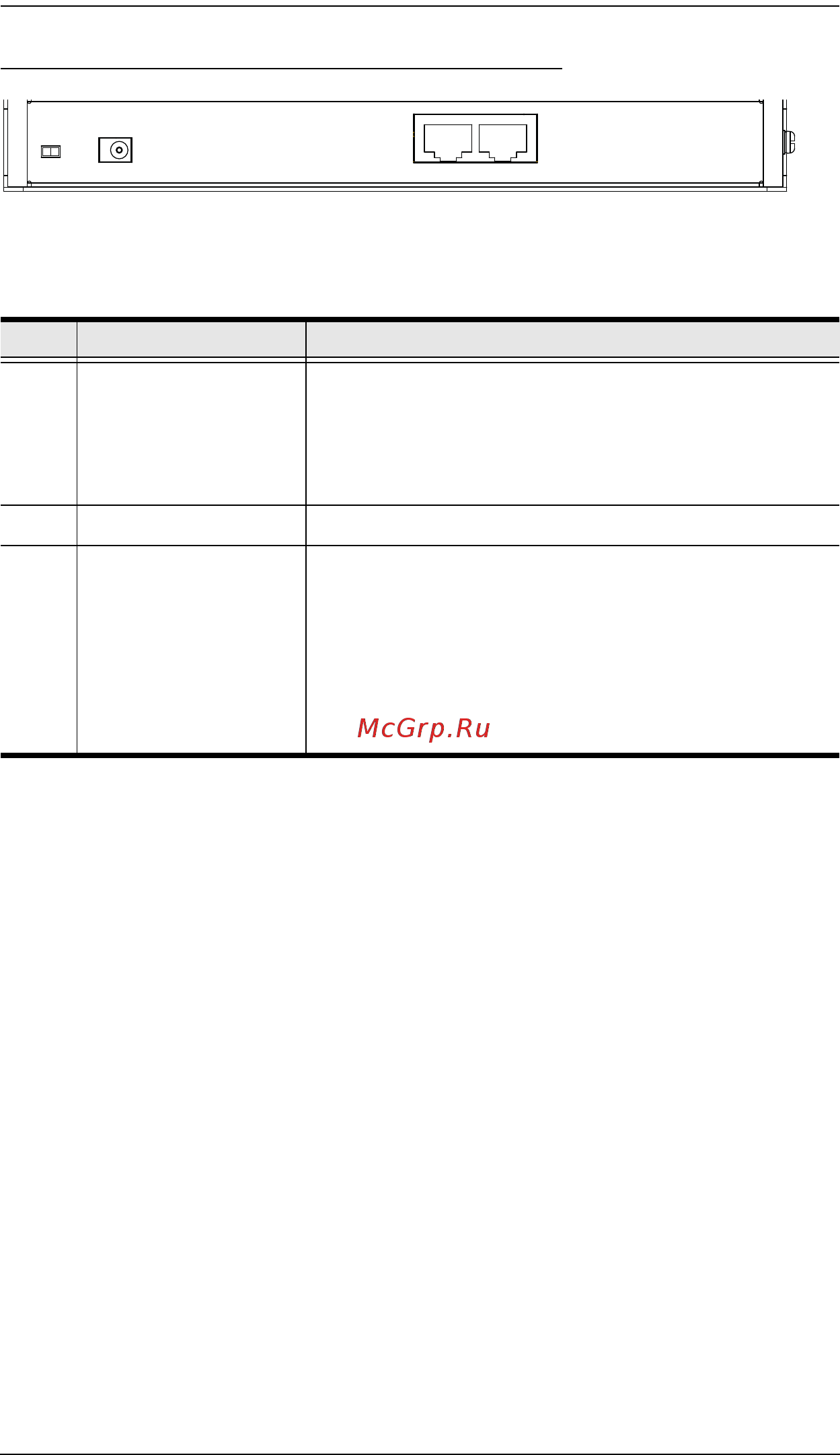

CE600L / CE602L (Local Unit) Rear View
No. Component Description
1 F/W Upgrade Switch Use this switch to turn on the firmware upgrade mode.
Reset the power to proceed with the firmware
upgrade.
Switch it off and reset the power to return to normal
mode.
2 Power Jack The cable from the DC Power adapter connects here.
3 Sub / Main The Cat 5e cable that connects the Remote and Local
Units plugs in here.
Dual Link DVI (CE602 only): uses 2 cables
Single Link DVI: uses 1 cable (Main-to-Main)
(Note: If HDCP, RS-232, microphone and dual link
signals are needed, the Sub cable must be
connected.)
