Chapter 3. Operation

Deskew and Picture Compensation

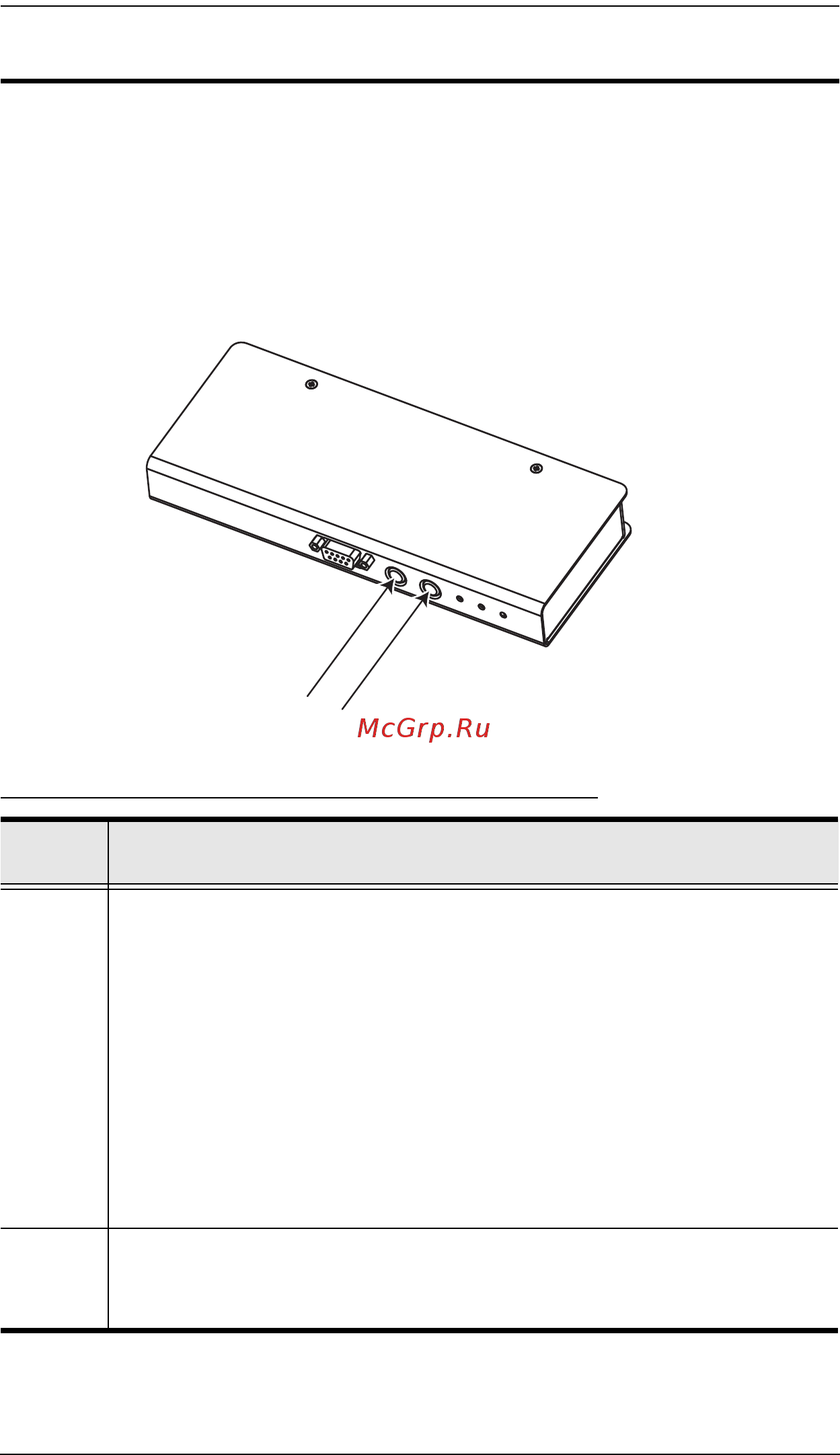

The quality of the video display can deteriorate with distance. The pushbuttons

on the front panel of the CE770RQ adjust the quality of the video on the remote

console.

If it becomes necessary to fine-tune the video signal, press the color button to

cycle through each of the options (Red, Green, Blue, Compensation) and adjust

the settings as explained in the table below.

Color / Video Compensation (Remote Unit)

Button /

Switch

Description

Color (+) 1. Press and release to enter Red color mode. Use (+) and (–) to adjust.

2. Press and hold for two seconds to invoke the color scaling OSD (when

no color is selected). Use the color bars to align each color.

3. Press and hold for two seconds to change the color mode or

compensation (when selected). The sequence is R _ G _ B _Video

Compensation _ exit _ R...

4. Press and release to increase value (delay time / compensation) when

any color / compensation is selected.

5. Press and hold both Color and Select buttons simultaneously to trigger

the auto-detect function (adjusts R/G/B/Compensation automatically)

and clear the stored settings.

Select (-) 1. Press and release to enter Red color mode. Use (+) and (–) to adjust.

2. Press and release to decrease value (delay time / compensation) when

any color / compensation is selected
