Aten CE770 [31/42] Ce770rq remote unit

Chapter 3. Operation

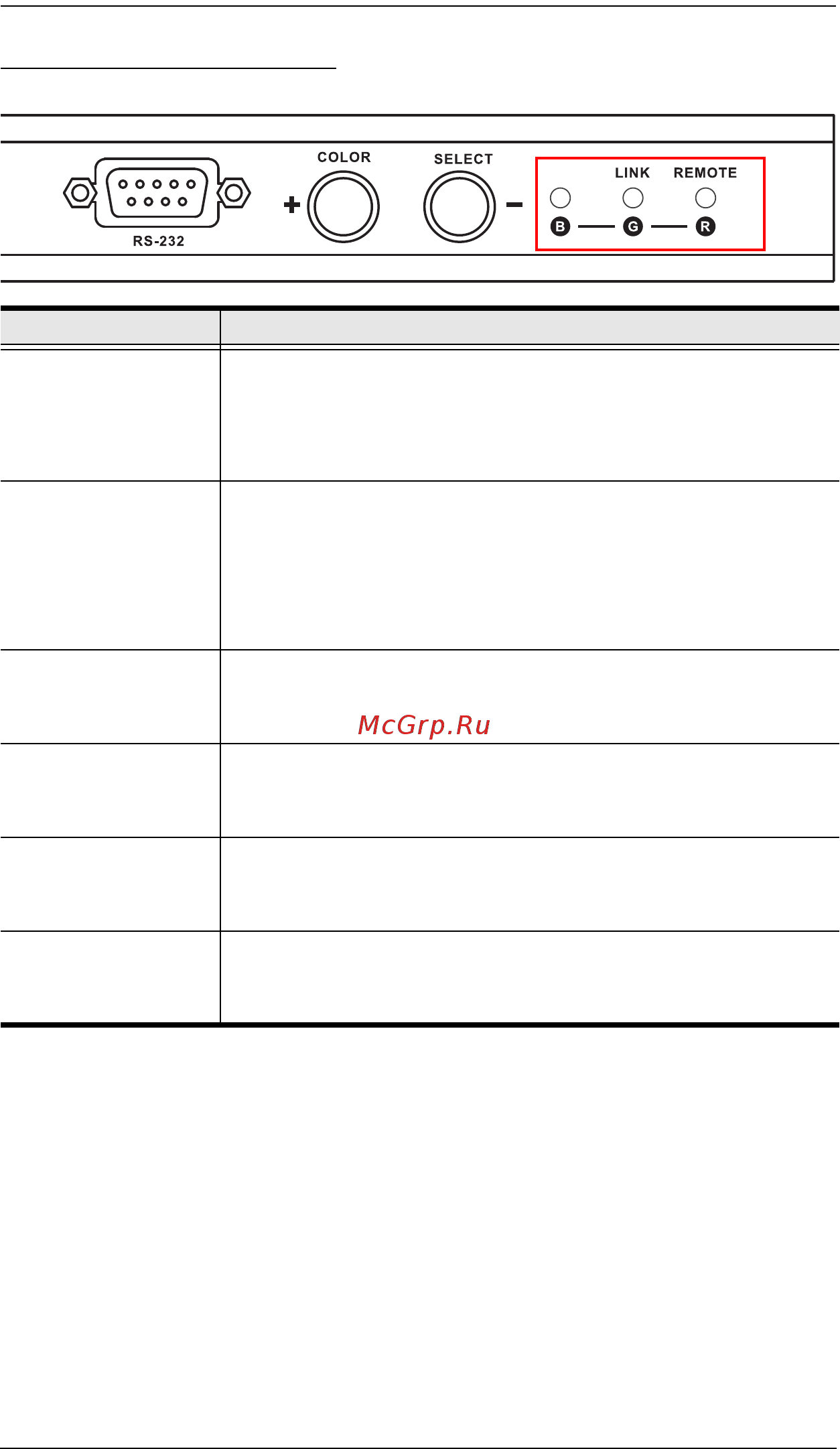

CE770RQ (Remote Unit)

LED Indication

Link

(Orange)

 Lights Orange to indicate that the connection to the Local unit

is established.

 Flashes Orange when there is a problem with the connection

to the Local unit.

Remote

(Red)

 Lights Red to indicate that the remote console is accessing

the computer.

 Turns off when the local console is accessing the computer.

 Flashes Red when Auto Mode is selected and both the local

and remote consoles are waiting to access the computer.

(Blue)

Flashes to indicate that the BLUE color is selected and the (+)

and (-) pushbuttons can be used to adjust the delay time of the

color BLUE.

(Green)

Flashes Green to indicate that the GREEN color is selected and

the (+) and (-) pushbuttons can be used to adjust the delay time

of the color GREEN.

(Red)

Flashes Red to indicate that the RED color is selected and the

(+) and (-) pushbuttons can be used to adjust the delay time of

the color RED.

R and G

(Red and Green)

Both Red and Green flash to indicate that the Video

Compensation is selected and the (+) and (-) pushbuttons can

be used to adjust the Video Compensation setting.
