CE770 User Manual
20
LED Display

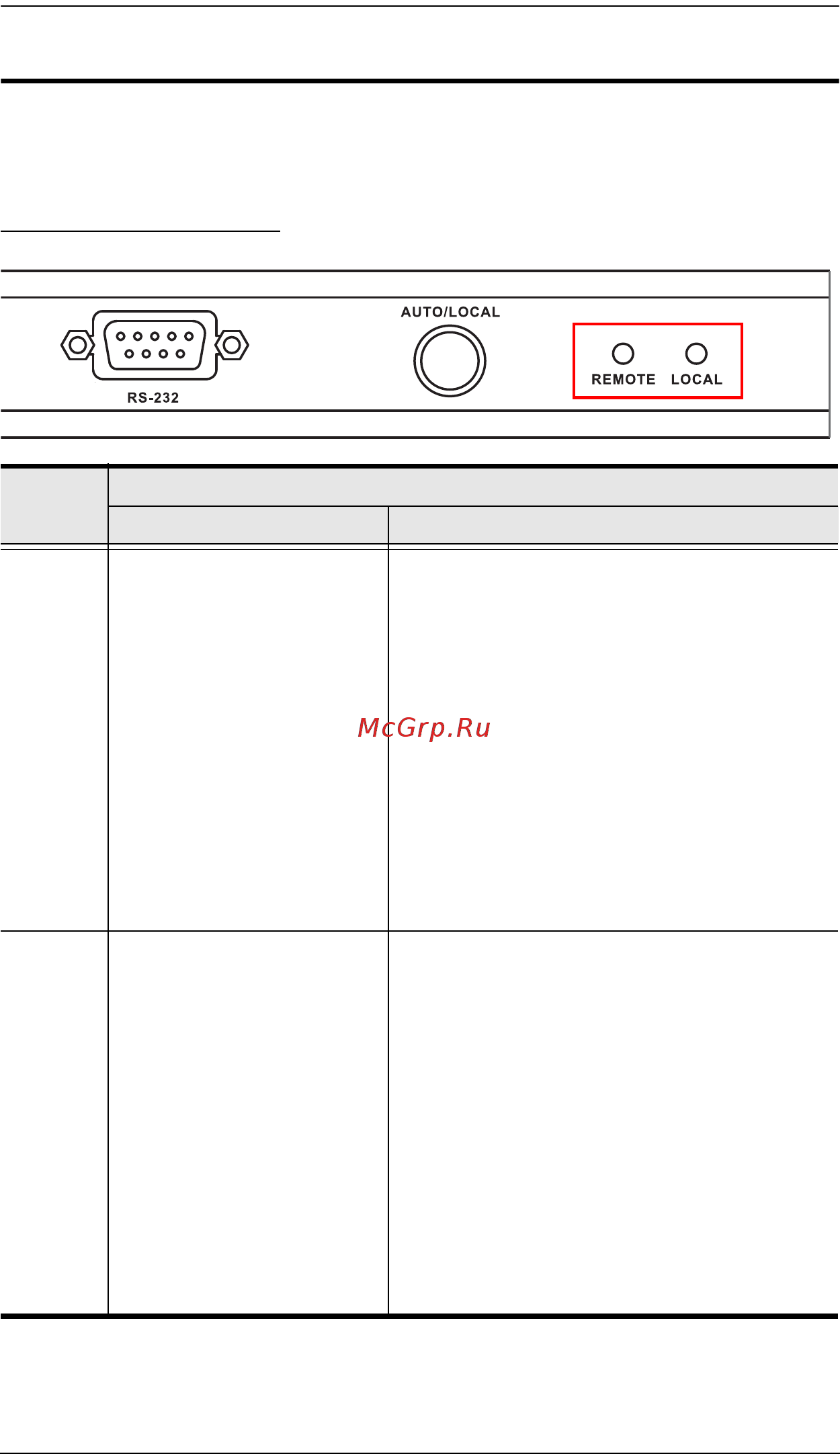

The CE770 Local and Remote Units have front panel LEDs to indicate their
operating status, as shown below:
CE770L (Local Unit)
LED
Operating Mode
Local Auto
Local
Lights solid Green when
the local console is
accessing the computer.
In Local mode, the Local
LED stays solid Green at
all times, and the remote
console cannot access
the computer (see
page 17).
The Local LED flashes on and off alter-
nately with the Remote LED when both
consoles are waiting to access the com-
puter (Auto Mode).
The Local LED lights solid Green when a
user at the local console presses a key on
the keyboard or moves the mouse to indi-
cate the computer is being accessed.
When the local console is inactive for more
than 4 seconds – the Local LED flashes on
and off alternately with the Remote LED to
indicate both consoles are waiting to
access the computer.
Remote
Lights solid Green when
the remote console is
accessing the computer.
The Remote LED flashes on and off alter-
nately with the Local LED when both con-
soles are waiting to access the computer
(Auto Mode).
The Remote LED lights solid Green when a
user at the remote console presses a key
on the keyboard or moves the mouse to
indicate the computer is being accessed.
When the remote console is inactive for
more than 4 seconds – the Remote LED
flashes on and off alternately with the Local
LED to indicate both consoles are waiting
to access the computer.
