KVM Over the NET™ User Manual
230
Starting Up

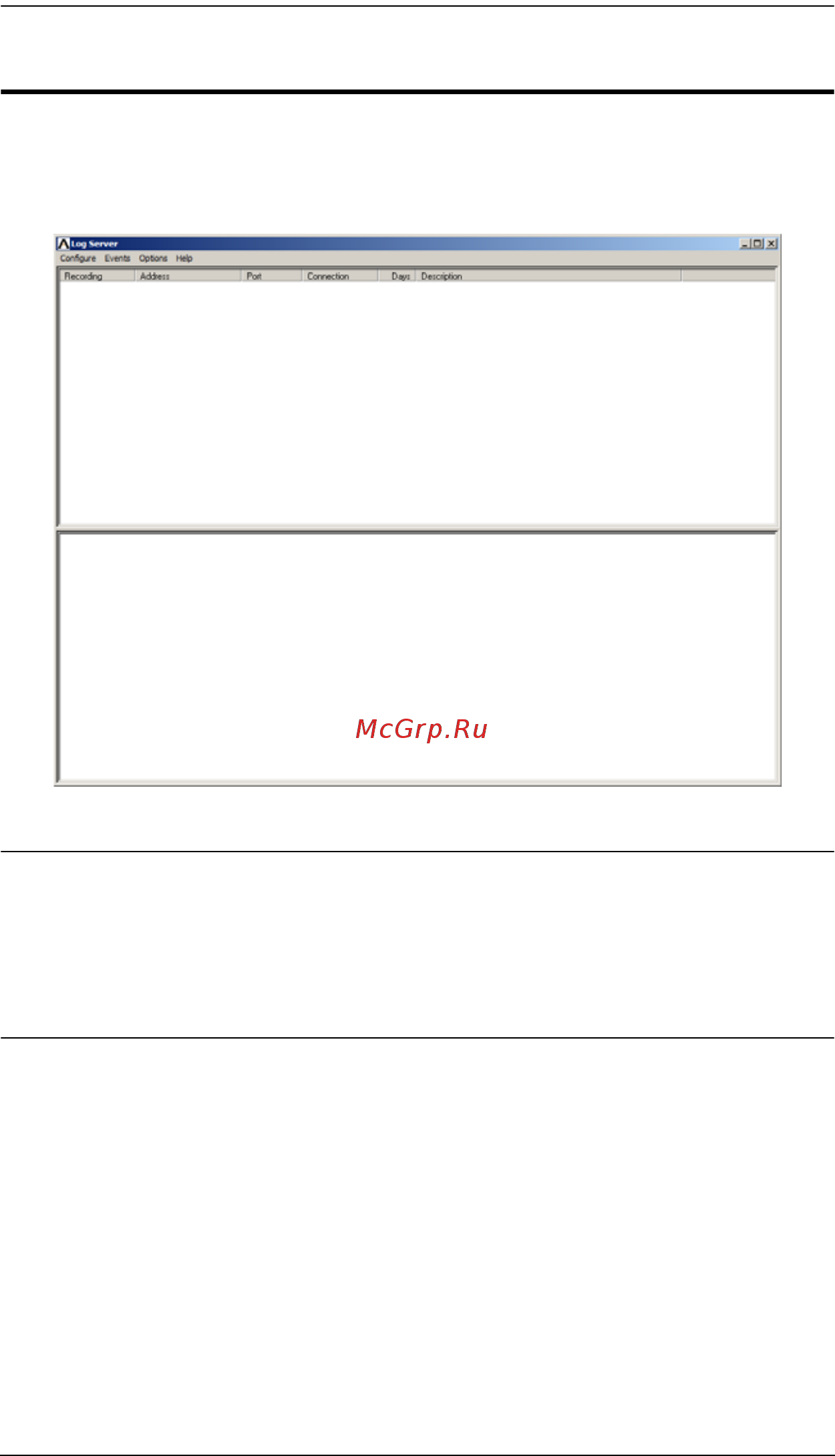

To start the Log Server, either double click the program icon, or key in the full
path to the program on the command line. The first time you run it, a screen
similar to the one below appears:
Note: 1. The MAC address of the Log Server computer must be specified in
theANMS settings – see Log Server, page 171.
2. The Log Server requires the Microsoft Jet OLEDB 4.0 driver.
See The Log Server program does not run., page 260 if the program
doesn’t start.
The screen is divided into three components:
A Menu Bar at the top
A panel that will contain a list of KVM Over the NET™ switches in the
middle (see The Log Server Main Screen, page 235).
A panel that will contain an Events List at the bottom
Each of the components is explained in the sections that follow.
