Chapter 1. Introduction
7

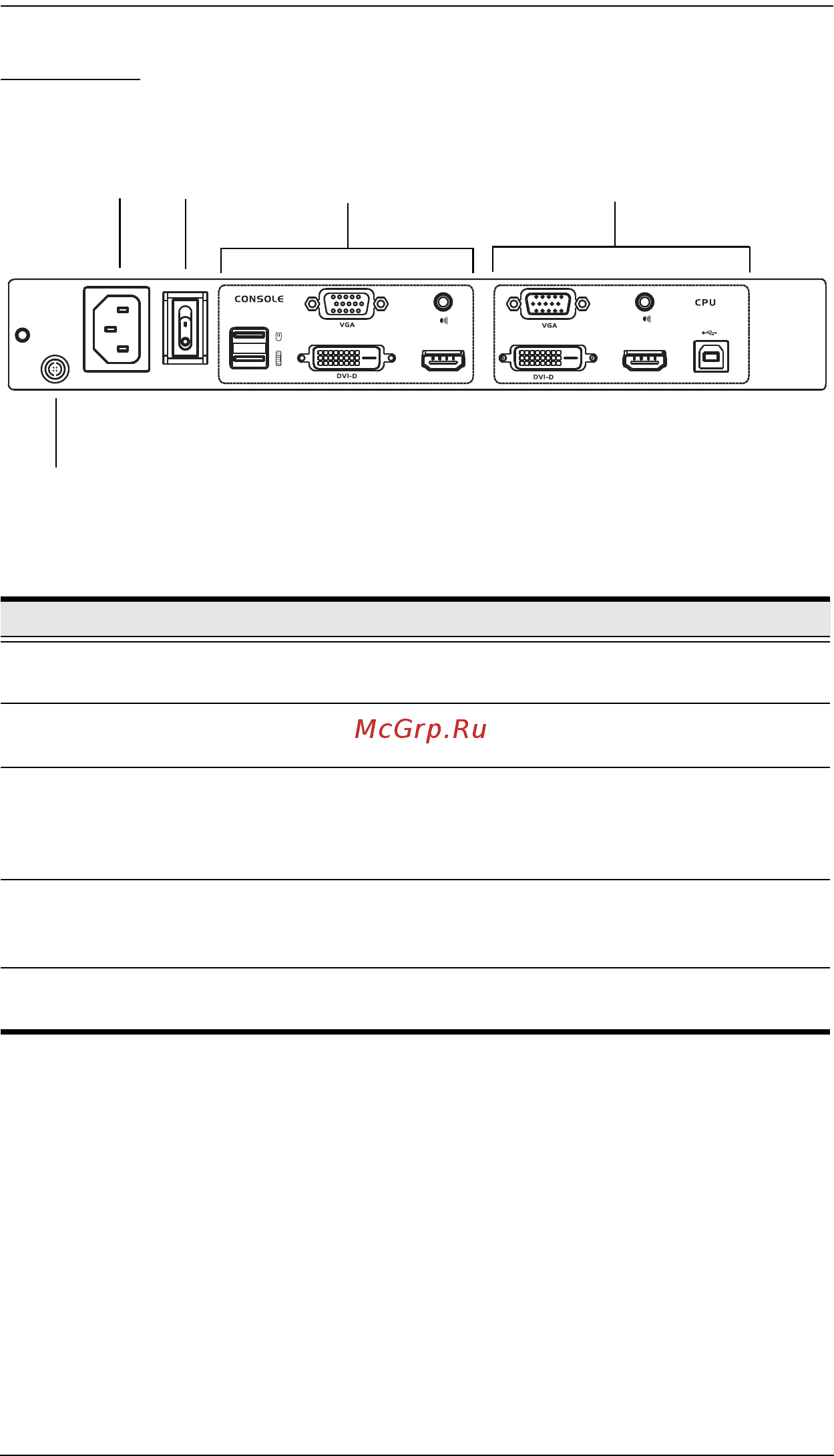

Rear View
No. Component Description
1 Power Socket This is a standard 3 prong AC power socket. The power cord
from an AC source plugs in here.
2 Power Switch This is a standard rocker switch that powers the CL6700MW
on and off.
3 External
Console Section
For flexibility and convenience, the CL6700MW supports an
independent, external, KVM console. The external console's
USB keyboard and mouse, DVI, VGA, or HDMI monitor, and
audio cables plug in here.
4 KVM Port
Section
The custom KVM cable supplied with the package for linking
the CL6700MW to a computer or switch plugs in here. An
additional HDMI and VGA port are provided.
5 Grounding
Terminal
The grounding wire (used to ground the unit) attaches here.
1
2
3
4
5
HDMI
HDMI
